8. Installation
8.1 Select the best location
• If a roof is built over the unit to prevent direct sunlight or rain exposure, make sure that heat radiation from the
condenser is not restricted.
• Do not place animals and plants in the path of the warm air.
• Take the air conditioner weight into account and select a place where noise and vibration are minimum.
• Select a place so that the warm air and noise from the air conditioner do not disturb neighbors.
• Rooftop Installations : If the outdoor unit is installed on a roof structure, be sure to level the unit. Ensure the
roof structure and anchoring method are adequate for the unit location. Consult local codes regarding rooftop
mounting.

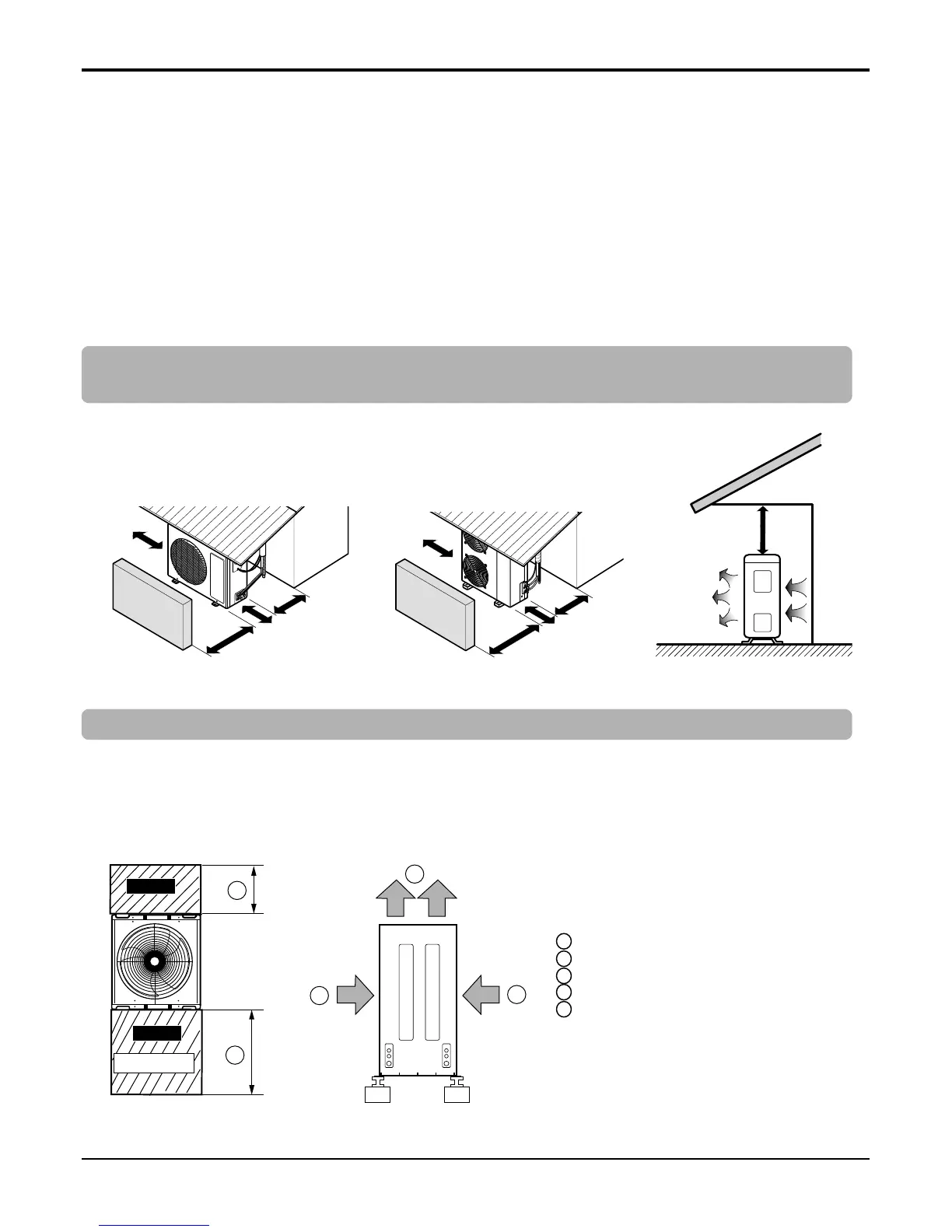

More than
30cm
Fence or
obstacles
More than 70cm
More than 50cm
More than
More than
30cm
30cm
More than
30cm
Sunroof
More than 50cm
(Service space)
More than
30cm
Fence or
obstacles
More than 70cm
More than 50cm
More than
More than
30cm
30cm
More than
30cm
Sunroof
• Ensure that the space around the back is more than 30cm and sides is more than 30cm. The front of the unit
should have more than 70cm of space.
Model : AUUW126B [UU12 WUEB], AUUW186B [UU18 WUEB],AUUW246B [UU24 WUEB],
AUUW306B [UU30 WUEB], AUUW366B [UU36 WUHB]
(1) Individual installation
Basic Space required
• A space of at least 250 mm is nessary at the back for inlet air. Tacking servicing, a space of about 750 mm
should be provided at the front.
Model : AUUW4860 [UU48 WUYB]/AUUW6060 [UU60 WUYB]
A : 750 mm or more
B : 250 mm or more
C : Top discharge(open in principle)
D : Front inlet(open in principle)
E : Rear inlet(open in principle)
<Side View>
<Top View>
D
C
B
A
E
service space
Front
Rear
