LG WFT15D81E(H)P User Manual

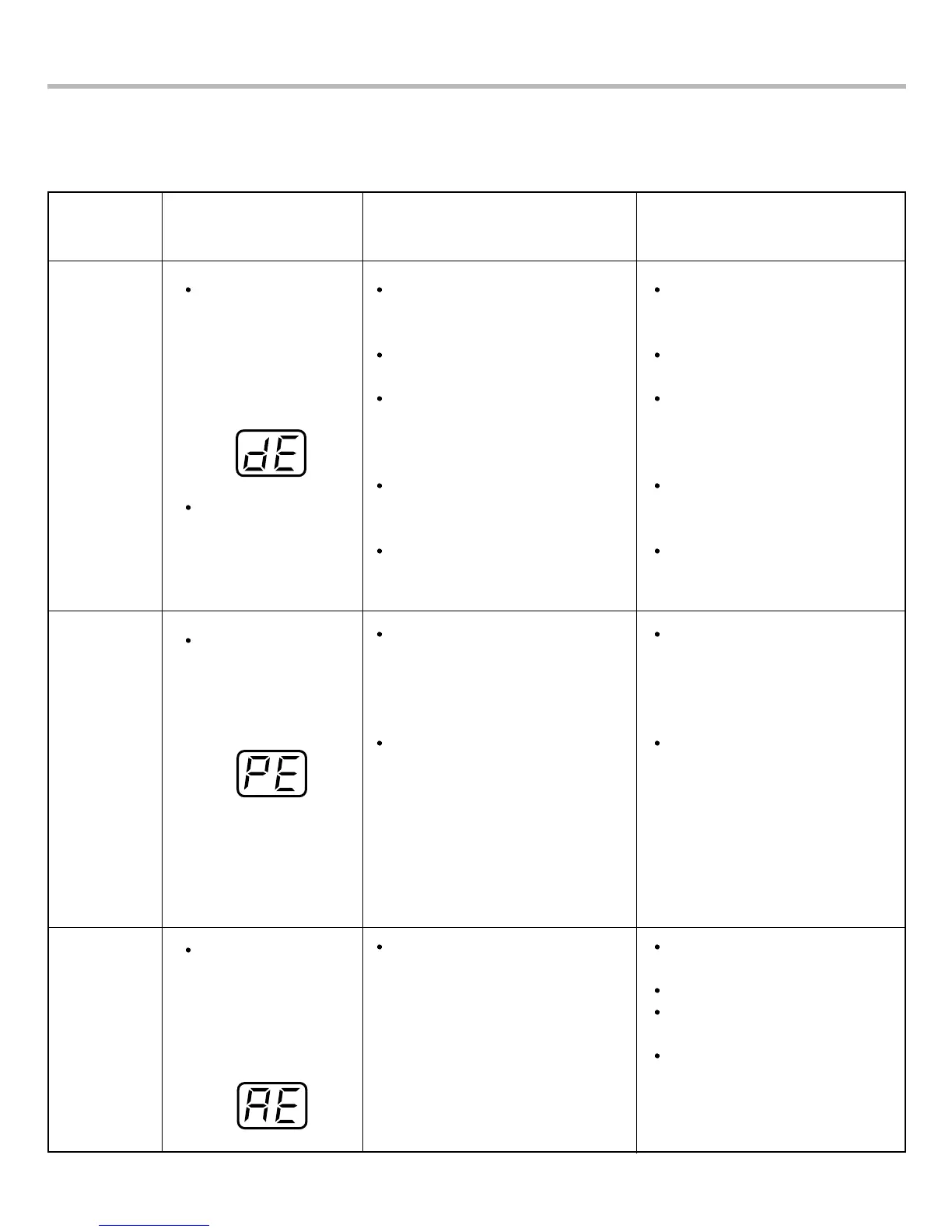

40
ERROR
DOOR
OPEN
PRESSURE
SENSOR
LAUNDRY
AMOUNT
SENSOR
LID is opened in
the course of
intermittent spin,
normal spin or
processing
reservation.
SIGNAL
continuously
ringing.
Water Pressure
Switch is off.
In the second QC
MODE, the
following
message is
displayed.
Lid is opened during
intermittent spin or normal
spin?
Lid is opened while
processing reservation?
Connector to the S.F S/W or
White(WH) 3 PIN
CONNECTOR to the P.W.B
ASM has bad connection.
S.F S/W or BALL
PRESSURE SENSOR is
bad or bad contact.
Is placed magnetic in LID?
Connector the Ball Pressure
Sensor(Pressure Switch) or
BLUE(BL) 3 pin connector to
P.W.B ASM has bad
connection.
Ball Pressure Sensor
(Pressure Switch) is bad. (In
the initial state of QC TEST
MODE, the number on the
DISPLAY is less than 63 or
more than 70)
Check MOTOR, CLUTCH,
V-BELT, CONDENSOR.
Check over all connectors if
they have bad connection.
Closed the lid.
Closed the lid.
Correct the connector
contact.
Check and replace S.F S/W
or BALL PRESSURE
SENSOR.
Change the LID.
Correct the connector
contact.
Replace Ball Pressure
Sensor(Pressure Switch).
Try to fill laundry uniformly in
the inner tub.
Adjust the leg.
Check and replace S.F S/W.
Check B.P SENSOR
CONNECTOR or replace
B.P sensor
ERROR DECISION
BASIS
CAUSE FOR ERROR
OCCURRENCE
REMEDY

LG WFT15D81E(H)P Specifications

General

POWER SOURSE	Refer to rating label on the back of Washer
AUTO POWER OFF	Applied
INPUT	Refer to rating label on the back of Washer
CAPA CITY	Refer to rating label on the back of Washer
SPIN SPEED	220 ~240 V / 50Hz : 680 50 110~127 V / 60Hz : 680 50 220 V / 60Hz : 730 50
INNER TUB	Stainless
LINT FILTER	Single
SOFTENER DISPENSER	Applied
DETERGENT DISPENSER	Applied
BLEACH INILET	Applied
ADDITIVES DISPENSER	Applied
INLET WATER PRESSURE	0.3kgf/cm2 ~ 8kgf/cm2
WATER LEVEL	9 Stages
PROGRAM	Fuzzy, Hand Wash, Heavy, Delicate, Wool, Eco Save, Wash Only, Quick Wash, Rinse / Spin, Spin Only
RESERVATION	Available for 3~ 48 Hr
UNBALANCE SWITCH	B.P Sensor
LID INTERLOCK SWITCH	Magnet Sensor
CHILD LOCK	Applied

Weight and Dimensions

DIM.	Refer to rating lavel on the back of Washer
WEIGHT	Refer to rating lavel on the back of Washer
