LG WT1201C Series Service Manual

23

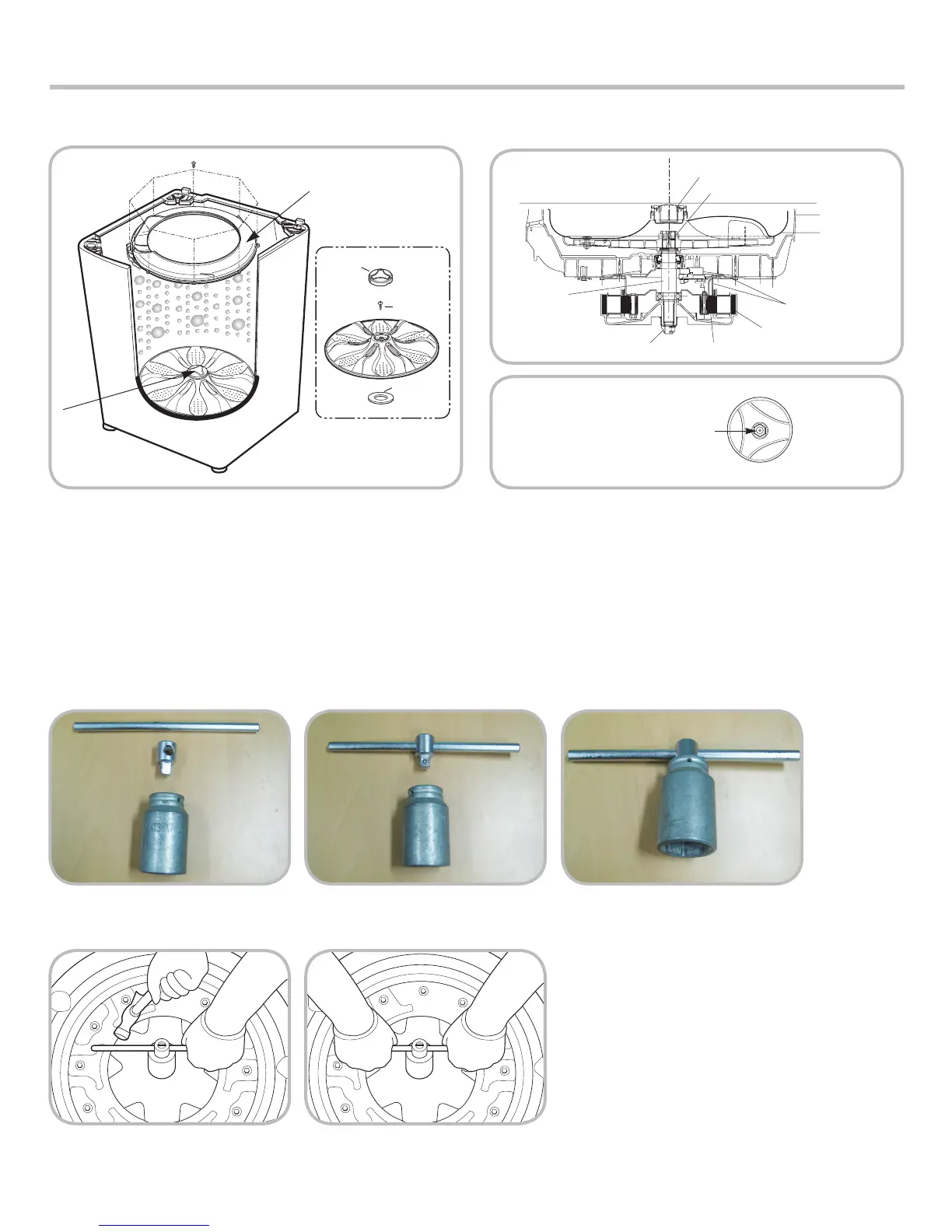

4) Disassembly of Tub Cover and Pulsator
① Remove 8 screws and take off the tub cover.
② Remove the pulsator cap.
③ Remove the pulsator screws.
④ Remove the pulsator washer.
Tub Cover
Pulsator Cap
Pulsator
Screw
Pulsator
Inner Tub Cap
Hub Fixing Nut
Outer Tub
Inner Tub
Stator
Rotor Nut
Hub Attachment Nut
Shaft
Bearing Housing ASM
Rotor
Inner
Tub Cap
① Hit the bar using the hammer. ② Disconnect hub nut and disassemble the inner tub.
5) Assemble the service tool (38 mm wrench)
6) Remove the hub attachment nut. (38 mm)

LG WT1201C Series Specifications

General

Style	Top-Loading
Color	Chrome
Washer Capacity	4.3 cu ft
Dryer Capactity	-
Max Spin Speed	1100 RPM
Spin Speeds	Low
Spin Class	C
Number of Cycles	8
Cycle Selections	Mixed 40°
Wash	Quick Wash
Options	ColdMotion technology
Hours	Extra Power / Boost Option
Noise level
Temperature Selections	Cold
Energy Class	-
Annual Energy Consumption	-
Annual Water Consumption	-
Water Consumption Per Cycle	-
Voltage	120 V
Frequency	-
Current	10 A

Weight and Dimensions

Depth	28 3/8 in
Height	40 5/32 in
Width	27 in
Net Weight	134.2 lbs
