LG WT1201C Series Service Manual

24

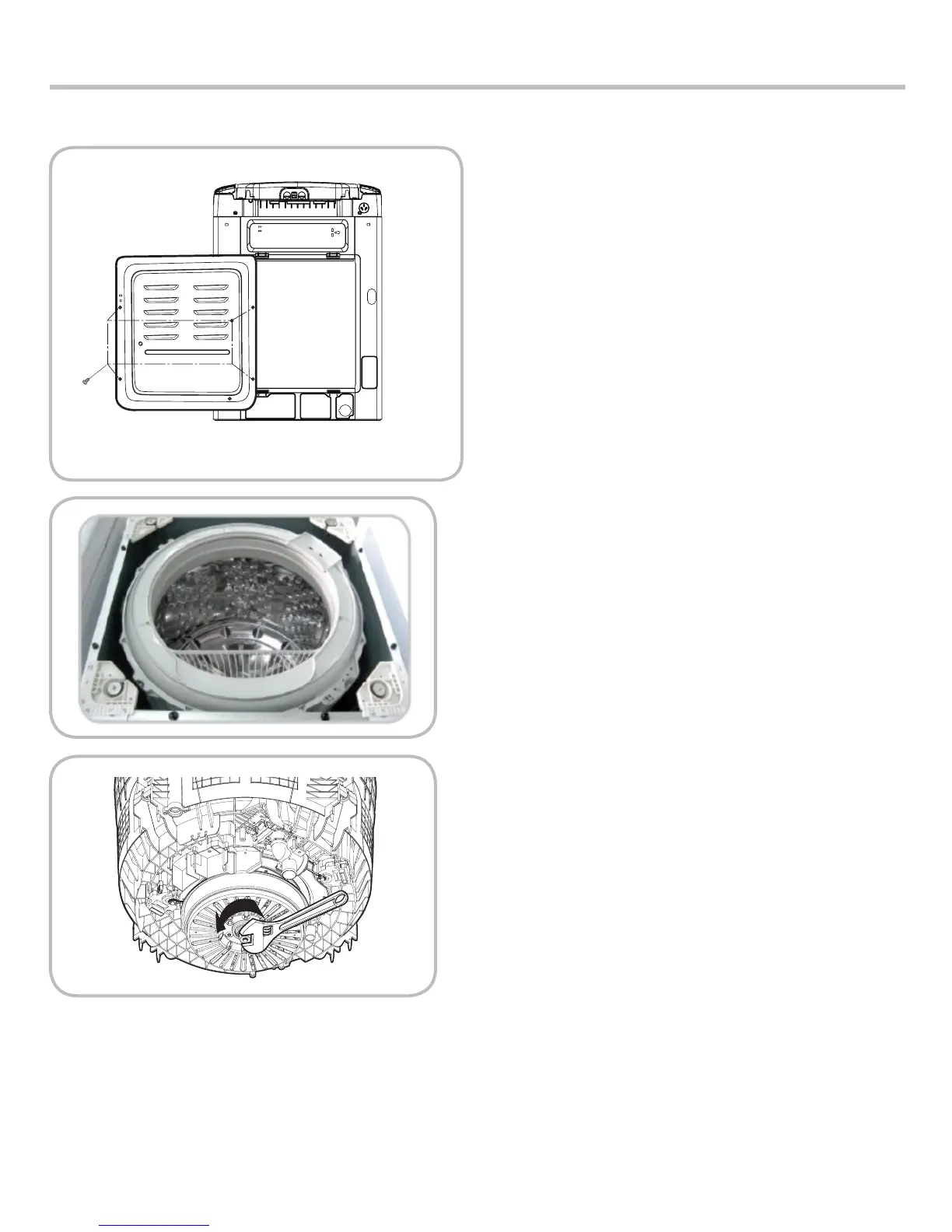

9) Disassembly of Rotor and Stator
① Use a wrench (M24) to remove the nut that
connects the rotor to the shaft.
(The torque should be 200 kgf/cm or 88 foot-
pounds.)
② Remove the rotor by pulling it straight off the
splined shaft.
7) Disassembly of the Back Cover and
Drain Pump
① Remove the screws that attach the back cover and
take it off.
② Disconnect the leads and the drain hose from the
drain pump.
③ Remove the pump attachment screws and the lead
connector. Take the pump assembly out of the
washer.
8) Disassembly of Damper Assembly
① Remove the top cover of the washing machine.
② As shown in the drawing, lift the damper assembly
and remove it along with the outer tub assembly.
③ Damper assembly shall not be disassembled.
Replace damper as assembly.

LG WT1201C Series Specifications

General

Style	Top-Loading
Color	Chrome
Washer Capacity	4.3 cu ft
Dryer Capactity	-
Max Spin Speed	1100 RPM
Spin Speeds	Low
Spin Class	C
Number of Cycles	8
Cycle Selections	Mixed 40°
Wash	Quick Wash
Options	ColdMotion technology
Hours	Extra Power / Boost Option
Noise level
Temperature Selections	Cold
Energy Class	-
Annual Energy Consumption	-
Annual Water Consumption	-
Water Consumption Per Cycle	-
Voltage	120 V
Frequency	-
Current	10 A

Weight and Dimensions

Depth	28 3/8 in
Height	40 5/32 in
Width	27 in
Net Weight	134.2 lbs
