LG WT1201C Series Service Manual

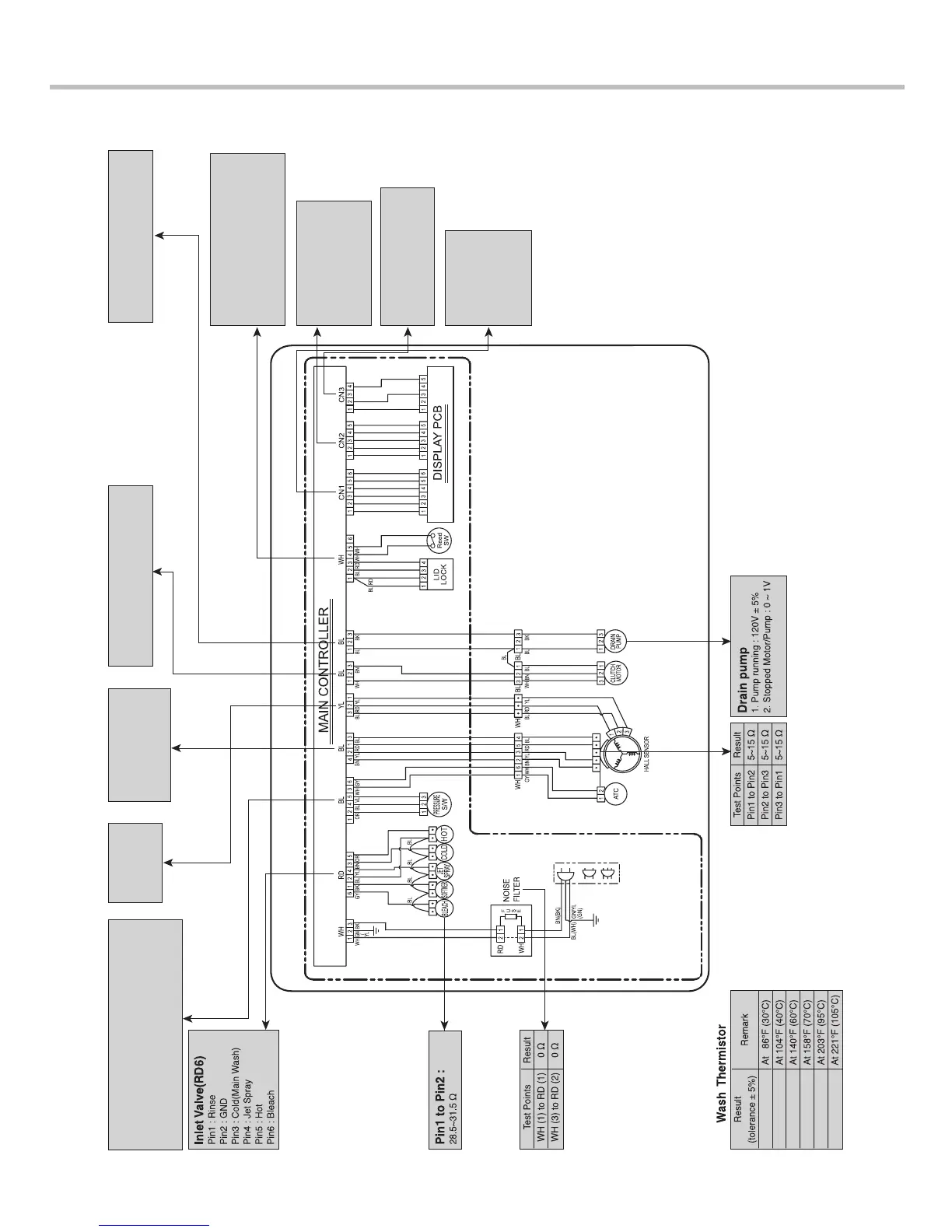

4-5. TROUBLESHOOTING SUMMARY
30
Hall Sensor(BL4) Pin1 : Hb Pin2 : GND Pin3 : Ha Pin4 : +
Motor(YL3) Pin1 : W Pin2 : V Pin3 : U
Clutch(BL2) Pin1 : Common(AC_Live) Pin2 : Clutch_Sensing(Input)(120VAC)
Pump(BL3) Pin1 : Common(AC_Live)(120VAC) Pin3 : Drain Pump(output)(120VAC)
Doorlock Switch(WH6) Pin1 : GND Pin2 : LIDLOCK_SIGNAL(Input) Pin3 : LIDLOCK_CONTROL(Output) Pin4 : LID_SW Pin5 : REED_SW Display(CN2) Pin1 : 16.5v Pin2 : LID_SW Pin3 : BZ_OUTPUT Pin4 : - Pin5 : BZ_PWM_SMART Display(CN1) Pin1 : Rx Pin2 : Tx Pin3 : GND Pin4 : - Pin5 : 5v Pin6 : TEST Display(CN3) Pin1 : NORMAL_CONNECT Pin2 : NORMAL_OPEN Pin4 : COMMON
Thermistor & Pressure Sensor(BL6) Pin3 : Temp(input)
Pin6 : GND Pin2 : S1 Pin4 : GND Pin5 : S2
76.5 kΩ 50.6 kΩ 23.6 kΩ 16.6 kΩ
7.5 kΩ 5.6 kΩ

LG WT1201C Series Specifications

General

Style	Top-Loading
Color	Chrome
Washer Capacity	4.3 cu ft
Dryer Capactity	-
Max Spin Speed	1100 RPM
Spin Speeds	Low
Spin Class	C
Number of Cycles	8
Cycle Selections	Mixed 40°
Wash	Quick Wash
Options	ColdMotion technology
Hours	Extra Power / Boost Option
Noise level
Temperature Selections	Cold
Energy Class	-
Annual Energy Consumption	-
Annual Water Consumption	-
Water Consumption Per Cycle	-
Voltage	120 V
Frequency	-
Current	10 A

Weight and Dimensions

Depth	28 3/8 in
Height	40 5/32 in
Width	27 in
Net Weight	134.2 lbs
