LG WT1201C Series Service Manual

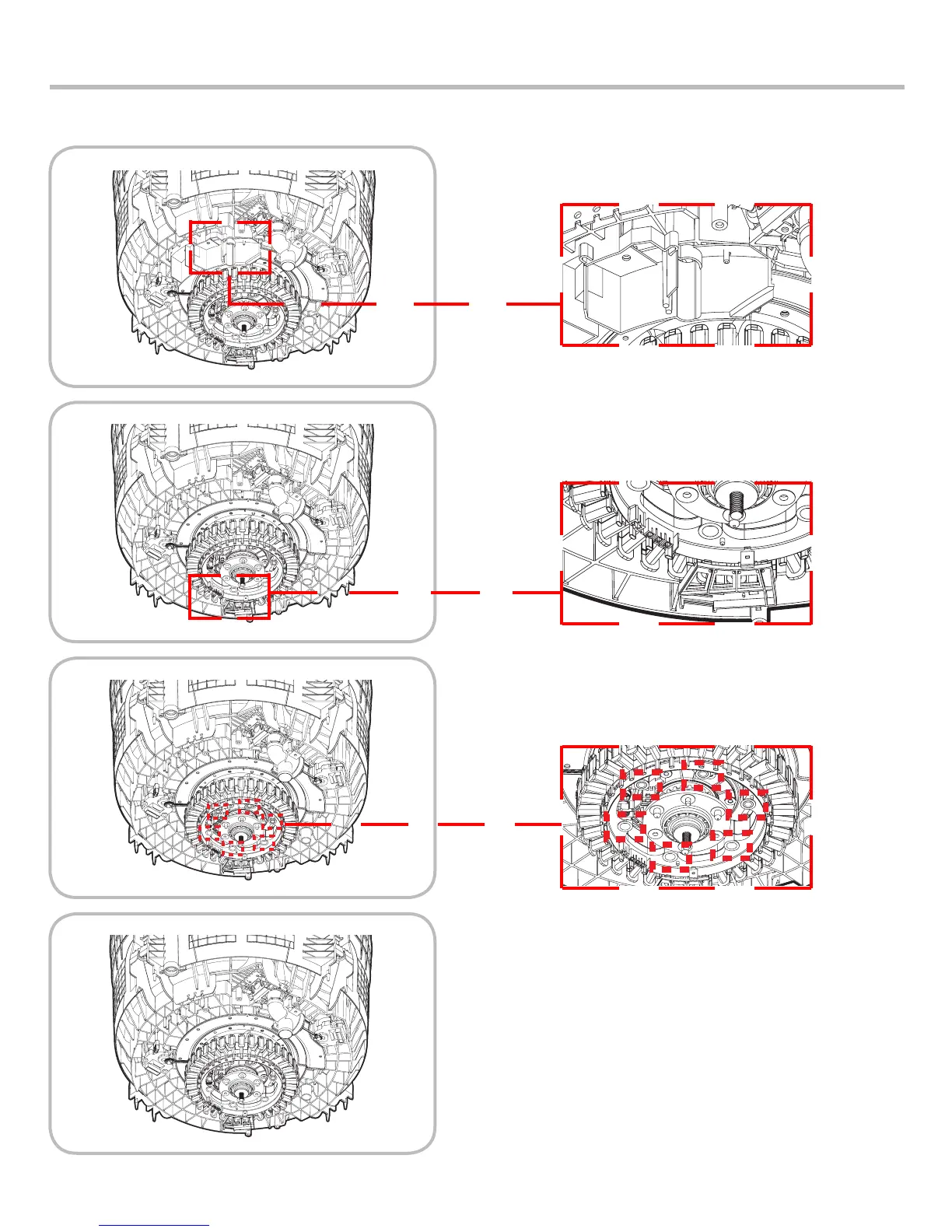

④ Disconnect the hall sensor and stator connection
before removing the stator in the subsequent step.
25
⑤ Remove the six screws securing the rotor.
⑥ Check the position of the snap ring, being sure it
faces the rotor and stator.
⑦ To keep from dropping the stator, loosen the six
bolts almost all the way; then hold the stator in one
hand while removing the bolts with the other.
⑧ Be careful during removal and replacement to
avoid cutting, nicking, or pinching any of the wires.
This could cause a short or electrical noise in the
machine.
③ Remove the screws that secure the water guide.

LG WT1201C Series Specifications

General

Style	Top-Loading
Color	Chrome
Washer Capacity	4.3 cu ft
Dryer Capactity	-
Max Spin Speed	1100 RPM
Spin Speeds	Low
Spin Class	C
Number of Cycles	8
Cycle Selections	Mixed 40°
Wash	Quick Wash
Options	ColdMotion technology
Hours	Extra Power / Boost Option
Noise level
Temperature Selections	Cold
Energy Class	-
Annual Energy Consumption	-
Annual Water Consumption	-
Water Consumption Per Cycle	-
Voltage	120 V
Frequency	-
Current	10 A

Weight and Dimensions

Depth	28 3/8 in
Height	40 5/32 in
Width	27 in
Net Weight	134.2 lbs
