1) Baffles have always to direct air flow up, as shown in Figure 3-12.

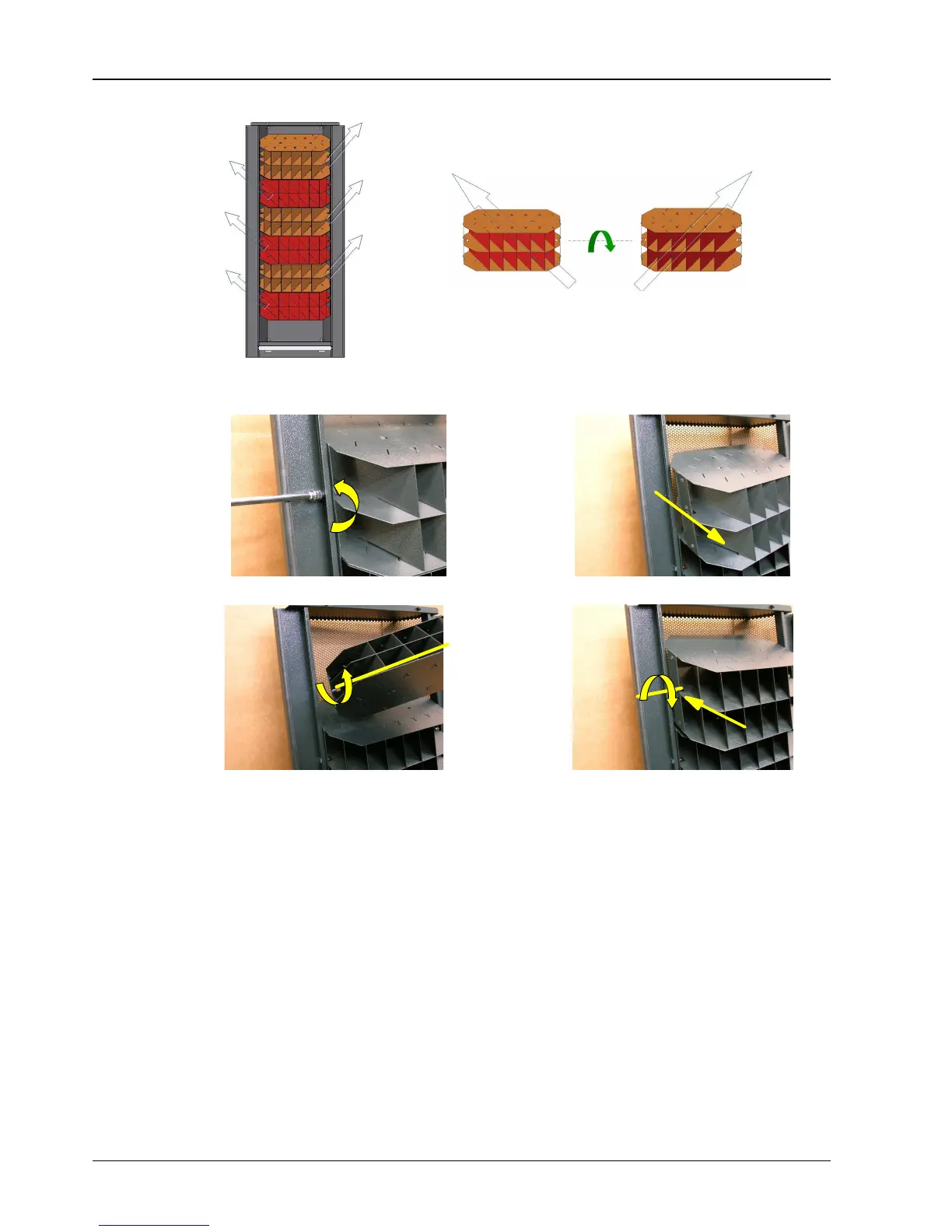

Figure 3-12 Direct air flow up
2) Turn the baffles (if necessary) to direct right or left the air flow, in Figure 3-13.
1. Remove the screws (one on left and one on right) 2. Disassemble only the wrong baffles
3. Rotate around a horizontal axle to adjust direction 4. Reassemble and lock the screws
Figure 3-13 Turn the baffles
