66 Appendix 5 Refrigeration & Hydraulic Circuits
Liebert.CRV Series Air Conditioner User Manual
3
1
5
4
2
A
B
AB
Chilled water outlet
(top connections)
(Only with
optional
2-way
valve)
Chilled water outlet
(bottom connections)
Chilled water inlet
(top connections)
Chilled water inlet
(bottom connections)

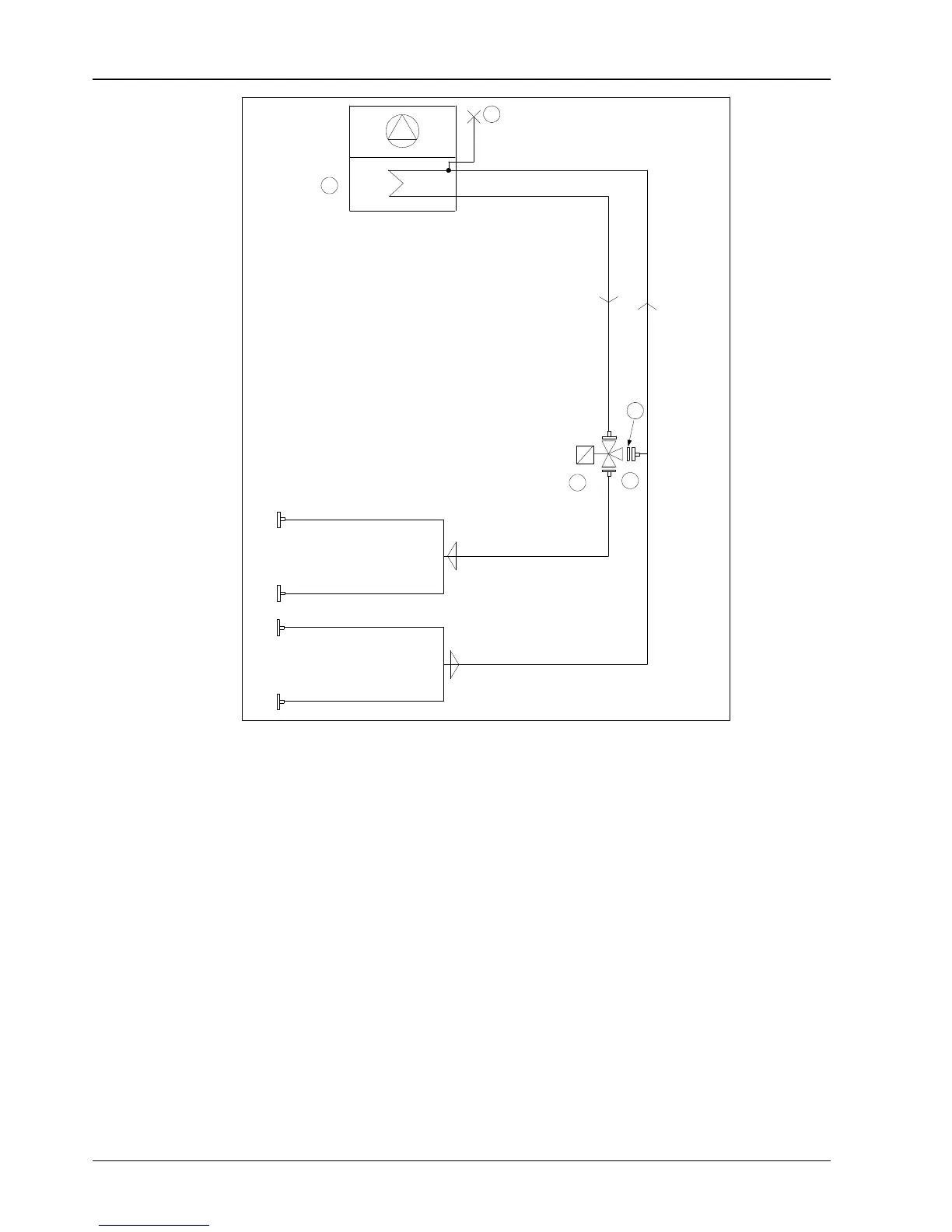

1. Chilled water cooling coil 2. Three-port water valve 3. Air bleeding valve
4. Valve fittings 5. Blind disk - only with optional two-way valve
Figure 17 CR040RC air conditioner
