Liebert himod - Page 19

English
15
HIMOD−C

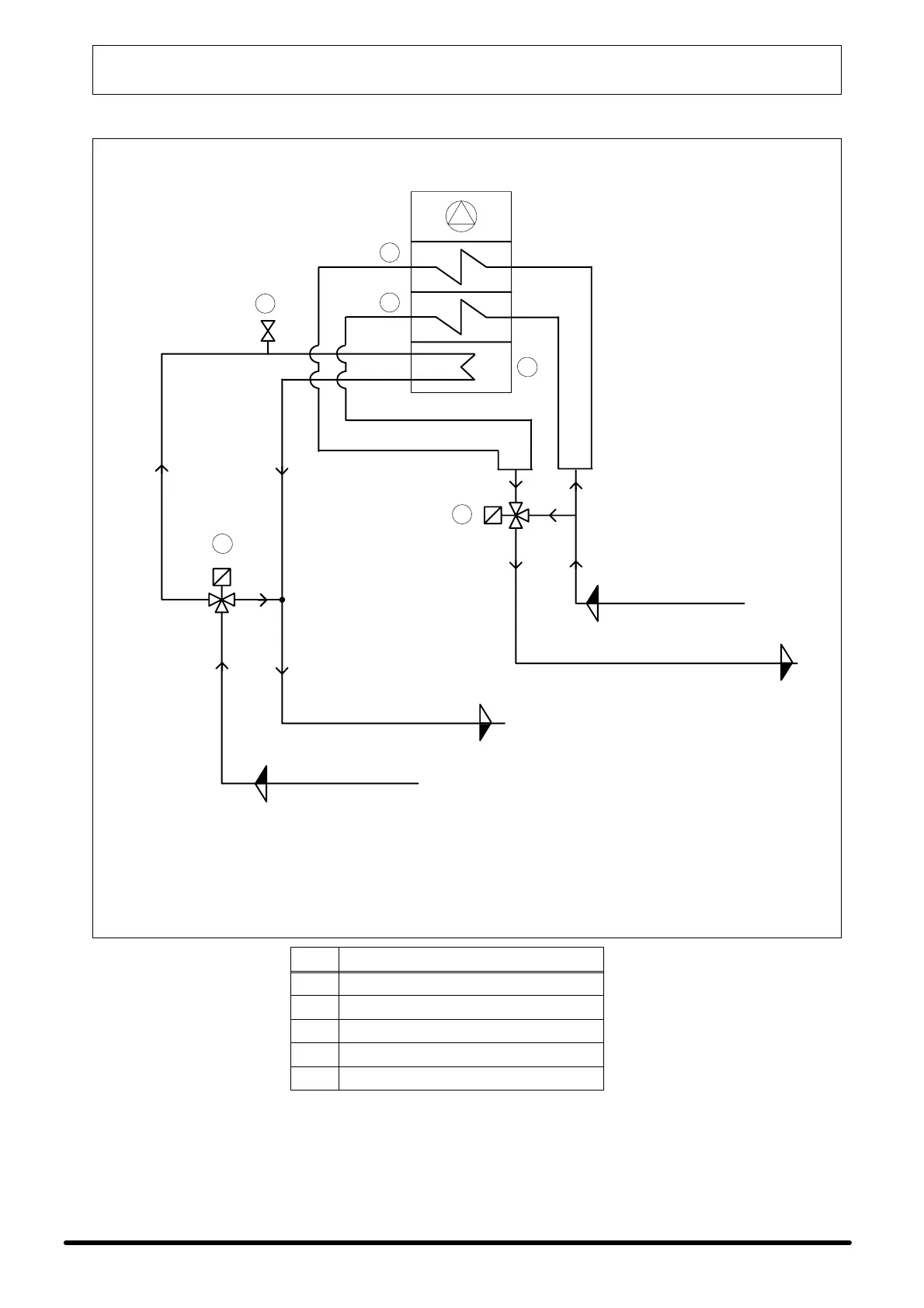

Fig. 9 − Water circuit
Himod C
45−80−85−90−10−12−14
HOT WATER INLET
HOT WATER OUTLET
COOLING WATER INLET
COOLING WATER OUTLET
2
1
4
3
1
5
POS. DESCRIPTION
1 Chilled water coil
2 Reheating coil (optional)
3 ON−OFF 3−way valve (optional)
4 Chilled water 3−way valve
5 Air purge valve
