Liebert PW017 User Manual

REV : 6
REV DATE : 12/16
DPN002944
Page :1 /1
DOWNFLOW FLOOR LEVEL DISCHARGE MODELS
Form No.: DPN001040_REV4

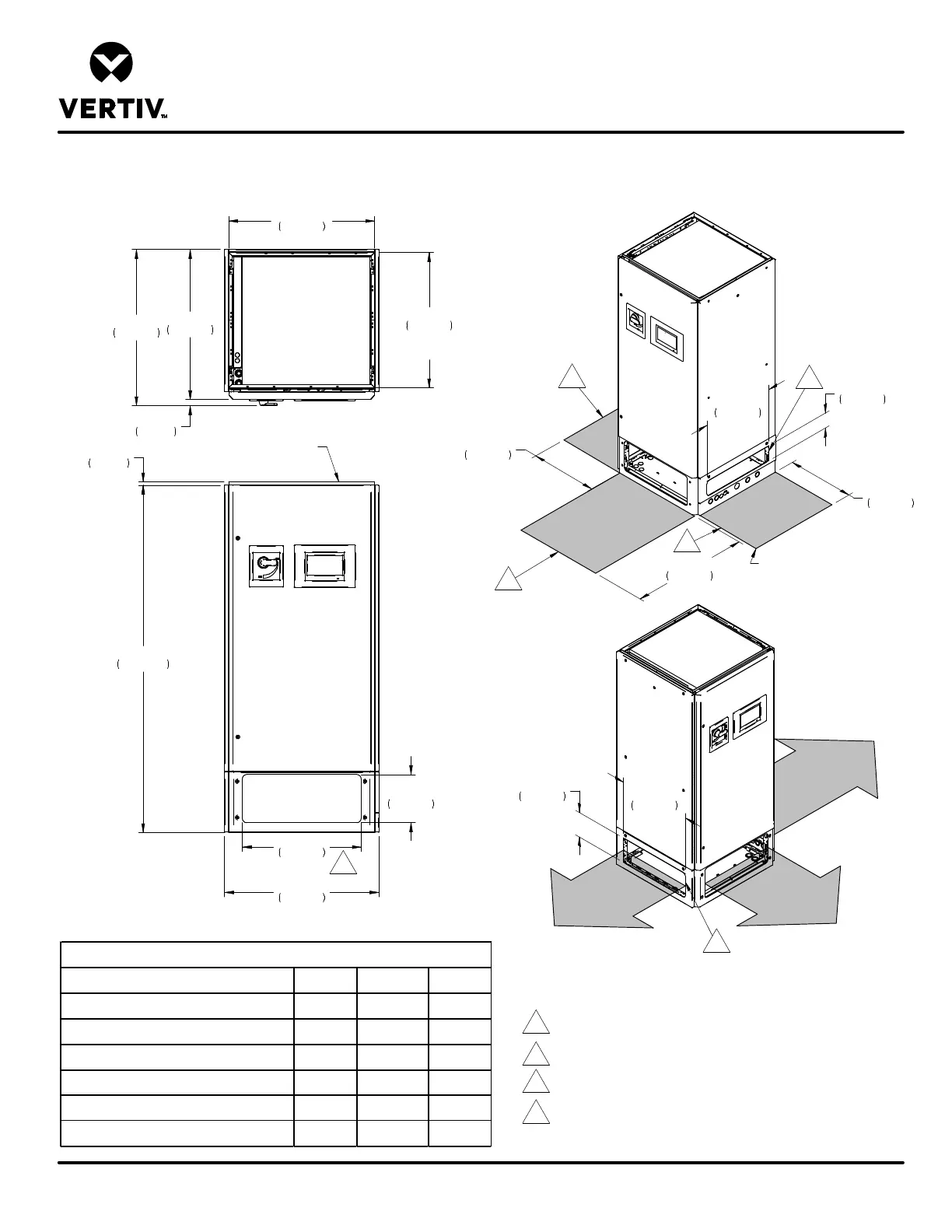

CABINET DIMENSIONAL DATA
LIEBERT PDX/PCW
24"
610mm
Right ISO View
Left ISO View
Front View
Notes:
1. Shaded area indicates a recommended minimum
clearance be provided for component access and air discharge.
2. Optional opening for units with right side discharge
or right and left side discharge.
3. Optional opening for units with left side discharge
or right and left side discharge.
4. Shaded area indicates recommended clearance for
air discharge.
1
3
Liebert PDX Model No. PX011 PX018-023 PX029
Air Cooled 600 (272) 670 (304) 700 (317)
Air Cooled w/dual cool 700 (317) 750 (340) 790 (358)
Water/Glycol 620 (281) 690 (313) 720 (327)
GLYCOOL™ or Water/Glycol w/dual cool
720 (326) 770 (349) 810 (367)
Liebert PCW Model No. PW011 PW017 PW029
Chilled Water 575 (260) 600 (272) 650 (294)
DRY WEIGHT lb (kg) APPROXIMATE
1
Right Side access required
for piping, condensate pump and
recommended for servicing reheat,
filter clog switch,water regulating
valve, econ-o-coil valve,
and smoke detector
34"
864mm
24"
610mm
4
34 7/8"
886mm
33 1/2"
852mm
1 3/8"
34mm
77 9/16"
1970mm
3/4"
19mm
Optional Field installed
Duct Flange
34 1/2"
876mm
2
26 9/16"
674mm
10 3/4"
273mm
32 9/16"
827mm
Duct Flange
30 3/16"
767mm
Duct
Flange
2
5 1/2"
139mm
26 1/8"
663mm
26 1/8"
663mm
9"
229mm
