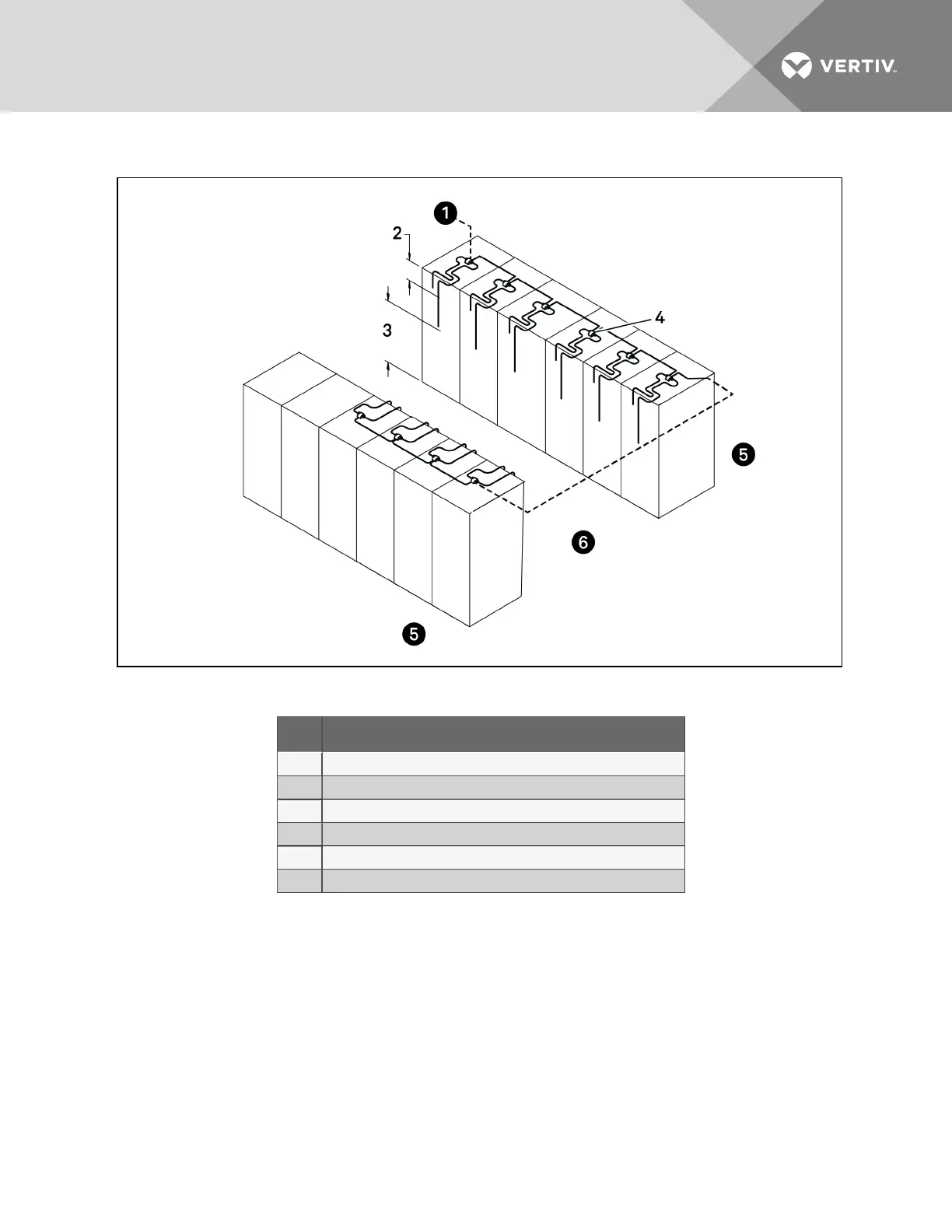

Figure 6.2 Rack sensor placement
Item Description
1 To cable entry in cooling unit
2 First probe, 12in. (305mm) from top
3 Second probe, in approximate center of rack and in front of the equipment
4 2T sensor with label visible
5 Hot aisle
6 Cold aisle
Table 6.3 Sensor descriptions
