4�6�1�3� 2U.1C Connection (2 Voltages and 1 current)

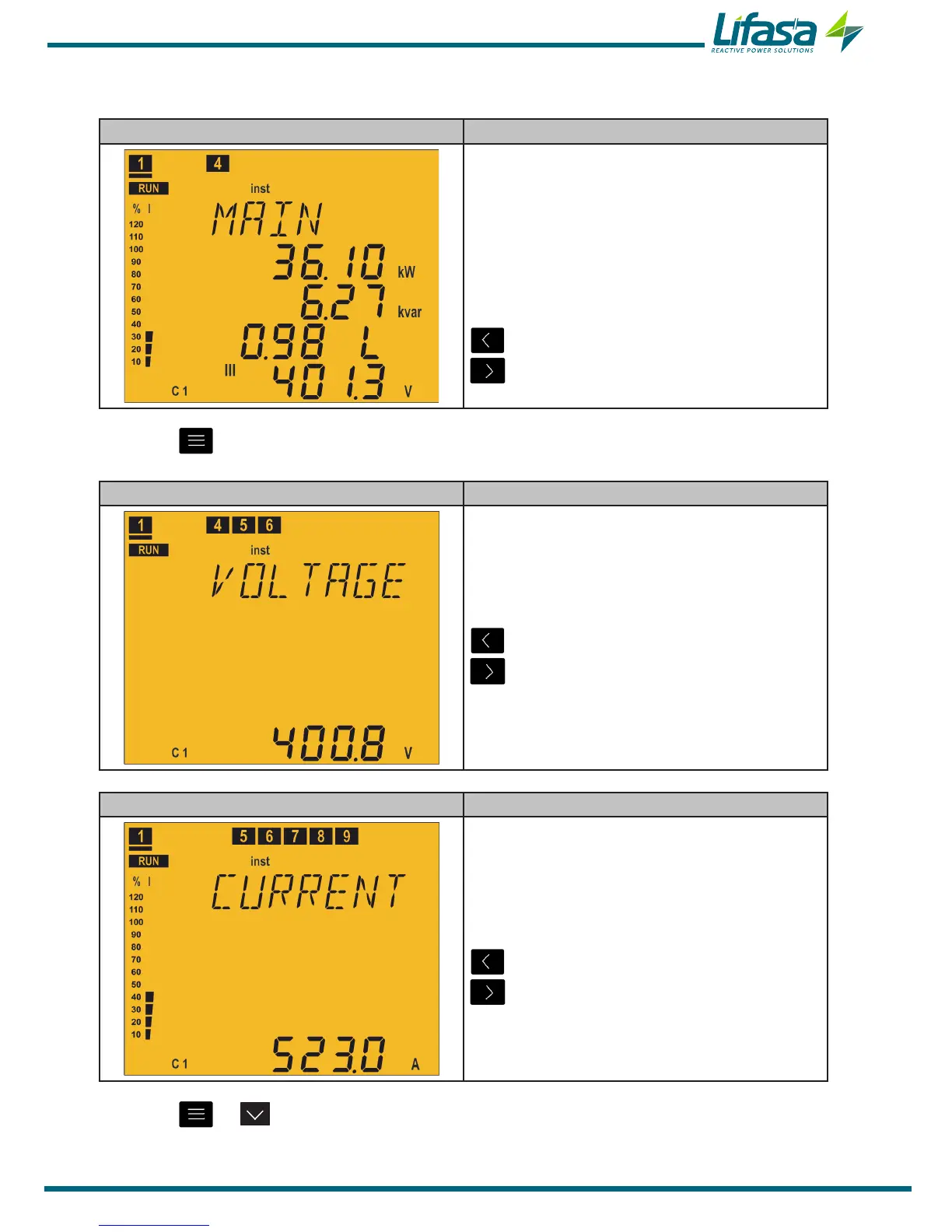

Main Screen Parameters
Active Power III(kW or MW)
Reactive Power III(kvar or Mvar)
+: inductive / -: capacitive
Cos φ
L: Inductive / C: capacitive
+: consumed / -: generated
Phase - Phase Voltage (V or kV)
Display the minimum values.
Display the maximum values.
Press the key to switch to the Currents screen.
Phase - Phase Voltages Parameters
Phase - Phase Voltage (V or kV)
Display the minimum values.
Display the maximum values.
Currents Parameters
Current (A)
Display the minimum values.
Display the maximum values.
Press the or key to switch to the Cosine φ screen.
