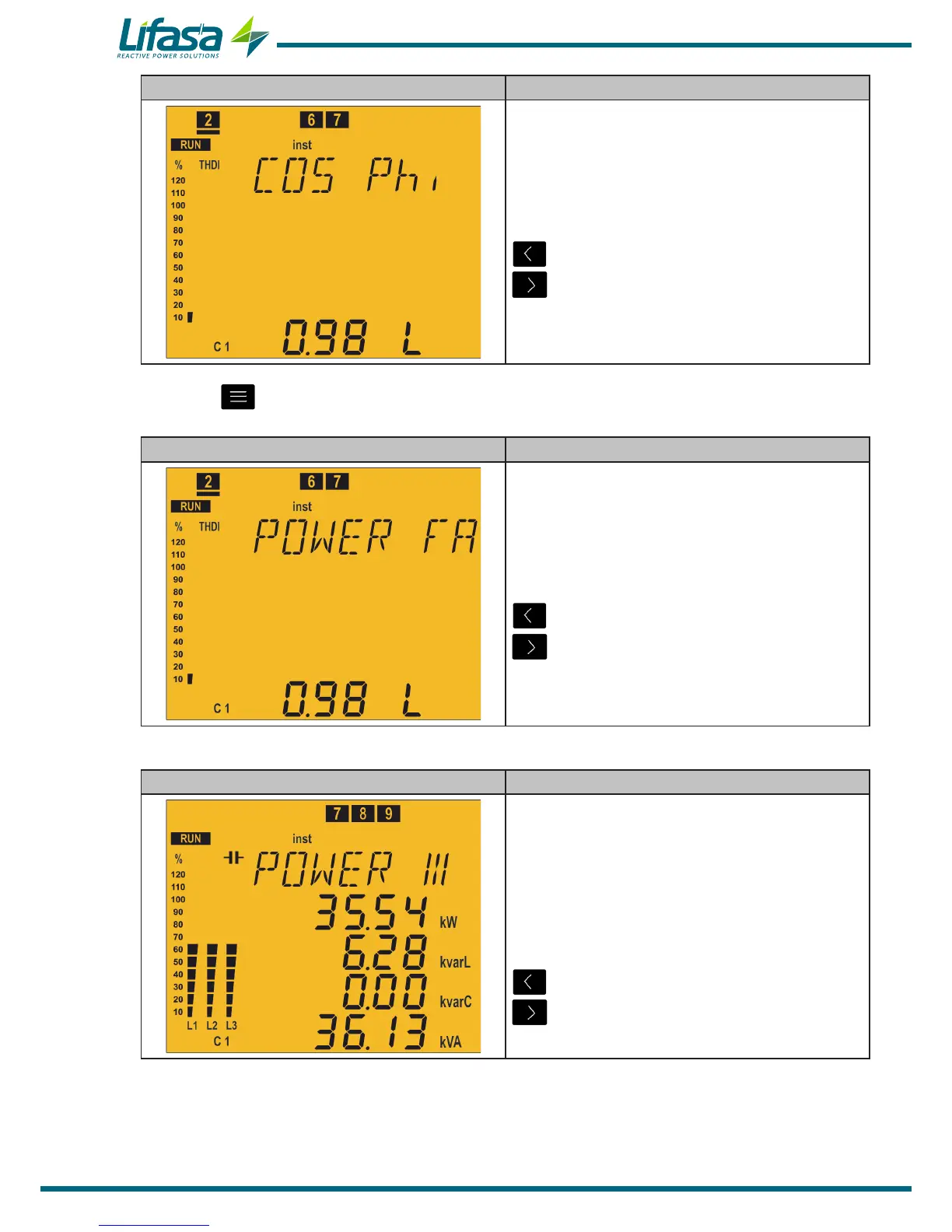

Cosine φ Parameters
Cos φ
L: Inductive / C: capacitive
+: consumed / -: generated
Display the minimum values.
Display the maximum values.
Press the key to switch to the Energy III consumed screen.
Power Factor Parameters
Power factor
L: Inductive / C: capacitive
+: consumed / -: generated
Display the minimum values.
Display the maximum values.
Power III Parameters
Active Power III(kW or MW)
Inductive Reactive Power III
(kvarL or MvarL)
Capacitive Reactive Power III
(kvarC or MvarC)
Apparent Power III (kVA or MVA)
Display the minimum values.
Display the maximum values.
50
Controller MASTER control VAR FAST
Instruction Manual
