16
4. Controls Glossary
Note: This section describes all the onscreen and manual controls in detail.
To see the most commonly used controls in context, see “Quick Reference:
Instrument Controls” (page 10).

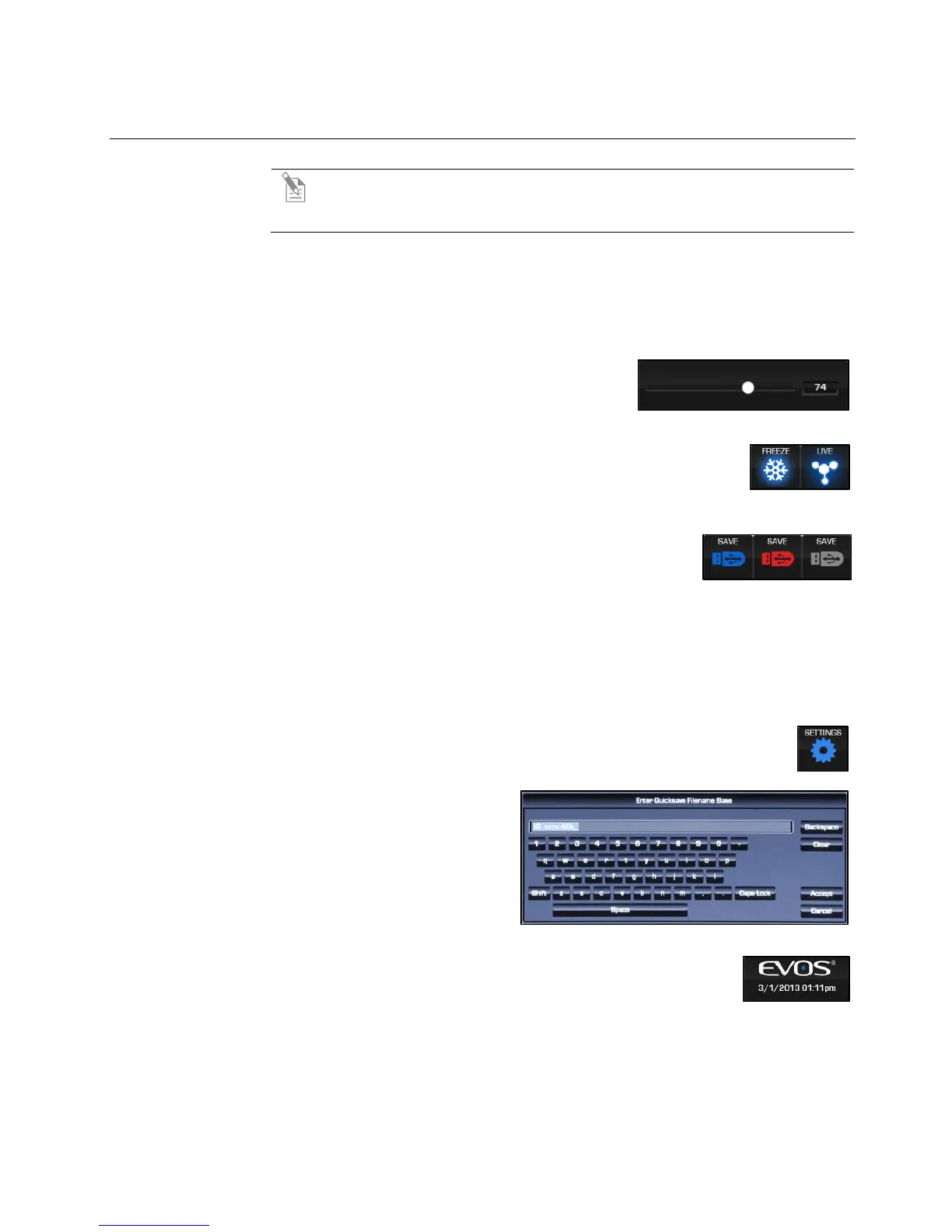

Onscreen Controls
This glossary is not alphabetized. Onscreen items are listed from left to right.
Illumination slider
The illumination slider controls the illumination
intensity when the mouse is installed. To turn off
illumination, slide all the way to the left.
Freeze/Live button
The Freeze/Live button toggles between Freeze and Live settings.
• Click Freeze to capture an image before saving it.
•
Click Live to return to real-time viewing.
Save button
The Save button saves the current frozen image to USB
flash drive. The icon is gray when no USB is plugged in.
• A green USB icon indicates that a flash drive has been
inserted.
• A red USB icon indicates that a save is in progress and the flash drive should
not be removed.
• After the file is saved, the USB icon will turn back to green and the flash drive
is safe to remove.
Settings button
The Settings button displays or hides the Settings popup. See “Settings”
(page 14) for an itemized explanation of the Settings popup options.
Virtual keyboard
The virtual keyboard popup
allows text entry for file names.
• Click the Accept button
when you have finished
entering the file name.
• The Clear button resets the
text field.
Onscreen clock
The onscreen clock shows date and time and can easily be set.
• Double-click on the time to reveal the settings and simply
use the + or – icons to increase or decrease the values.
•
Click Set to save changes.
