LifeSize Express 220 User Manual

10 LifeSize Express 200 Installation Guide

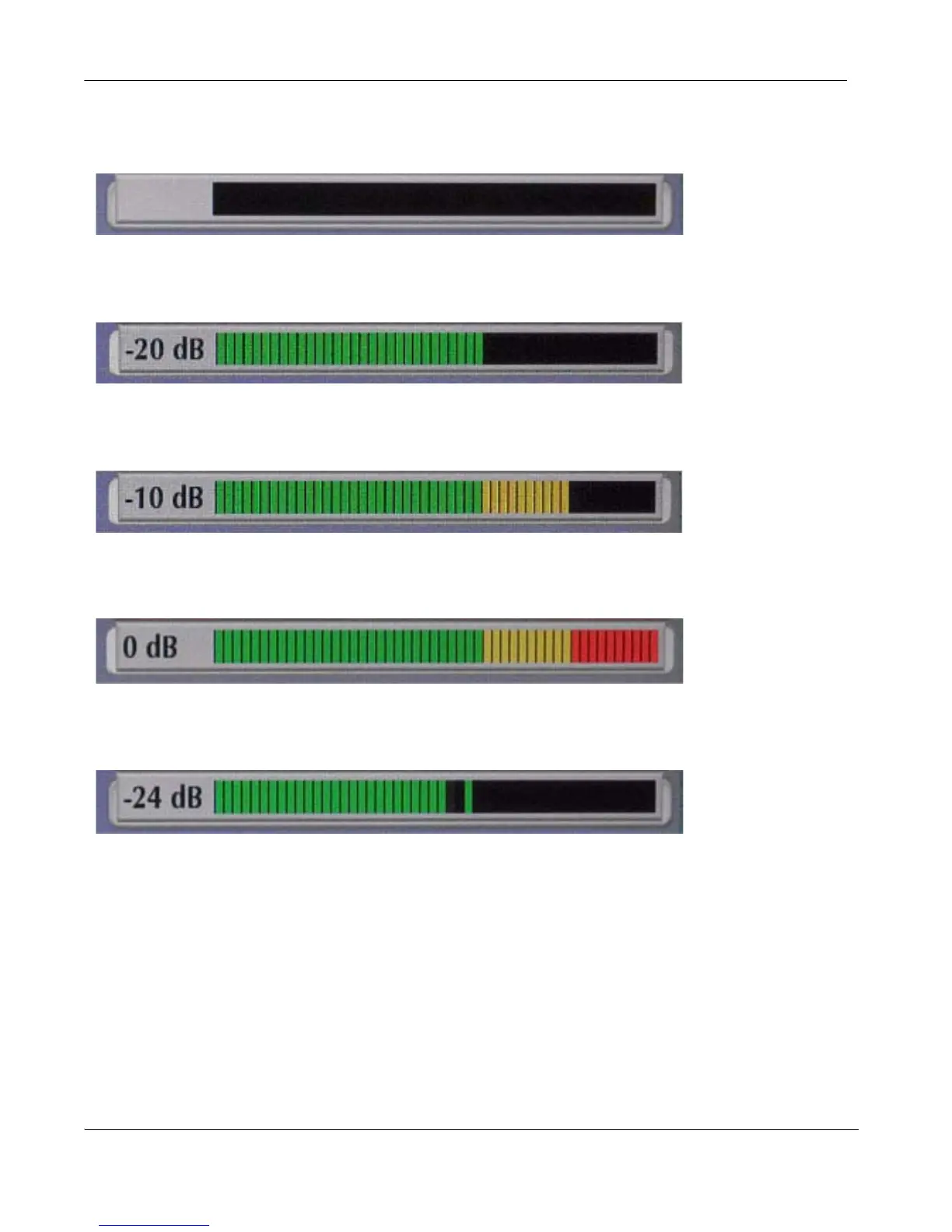

Very Quiet or Inactive Input below -50 dB (no bars)
-20 db DFS Level (Last Green Bar)
-10 db DFS Level (Last Yellow Bar)
0 db DFS Level (Maximum Possible Level; First Red Bar is -9 dB)
Typical Transmit Voice Level in a Call
When setting Active Microphone Volume for LifeSize MicPod or LifeSize Focus, place
someone where a participant in a call would normally sit in the conference room and ask the
person to speak at a normal volume facing the active microphone.
Use the audio meter to visually verify that the transmit level peaks in the desired -28 to -22
dB range.
LifeSize recommends a volume setting of 5 to 8 for Active Microphone Volume for most
LifeSize MicPod applications.

LifeSize Express 220 Specifications

General

Video codecs	H.261, H.263, H.263+, H.264, H.239, BFCP
Maximum frame rate	30 fps
Supported video modes	1080p, 720p
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
PTZ control	Yes
ITU-supported standards	H.323
Security algorithms	HTTPS, SSH
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	15 - 85 %
HDMI ports quantity	3
DVI-I ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Voice codecs	G.711, G.722, G.722.1
Current	2.5 A
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz

Weight and Dimensions

Depth	187.5 mm
Width	288 mm
Height	41.3 mm
Weight	1290 g
