Since your stationary cycle is a heavy piece of equipment, we recommend that you use 2 people
to complete the assembly, as some of the parts need to be held in place while the electrical
connectors are pushed together.
Prior to starting the assembly process take all of the parts out of the box, cut zip ties, remove all
plastic bags, and lay them out on the floor to become familiar with the components.
R2 RECUMBENT ASSEMBLY

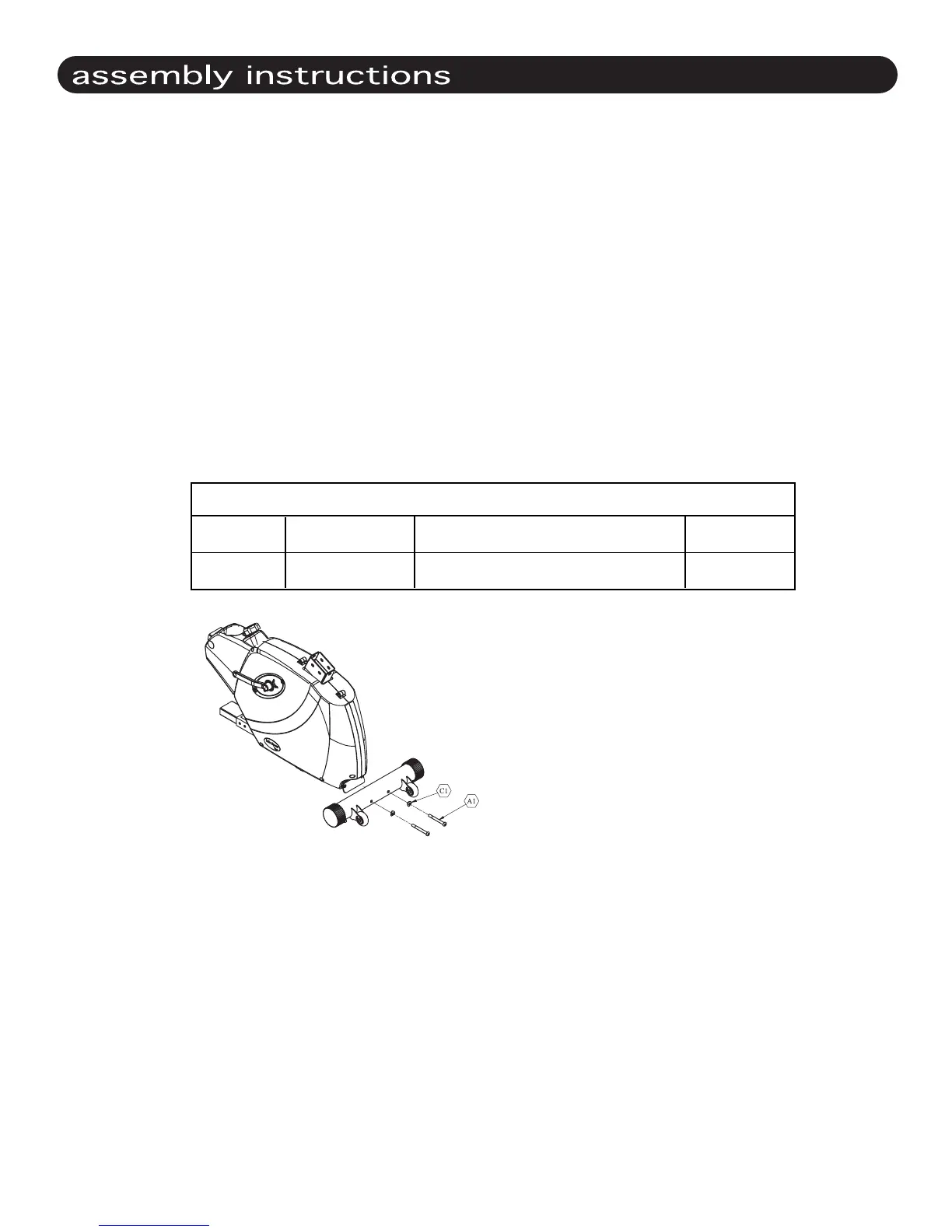

Step 1: Front Base Assembly
Parts Required
Main Frame
Front Base
Hardware Required
Part # Size Description Quantity
A-1 M10 * 90 Dome Head Allen Screw 2
C-1 M10 Curved Washer 2
1. Locate the hardware bag for Step 1.
2. Place the front base over the frame aligning the holes in the base with the threaded holes
in the frame.
3. Insert the two 6 mm dome head screws with bent washers into the holes in the front base
and tighten screws
8
