LifeSpan E-1 User Manual

7
E-1 Exercise Bike

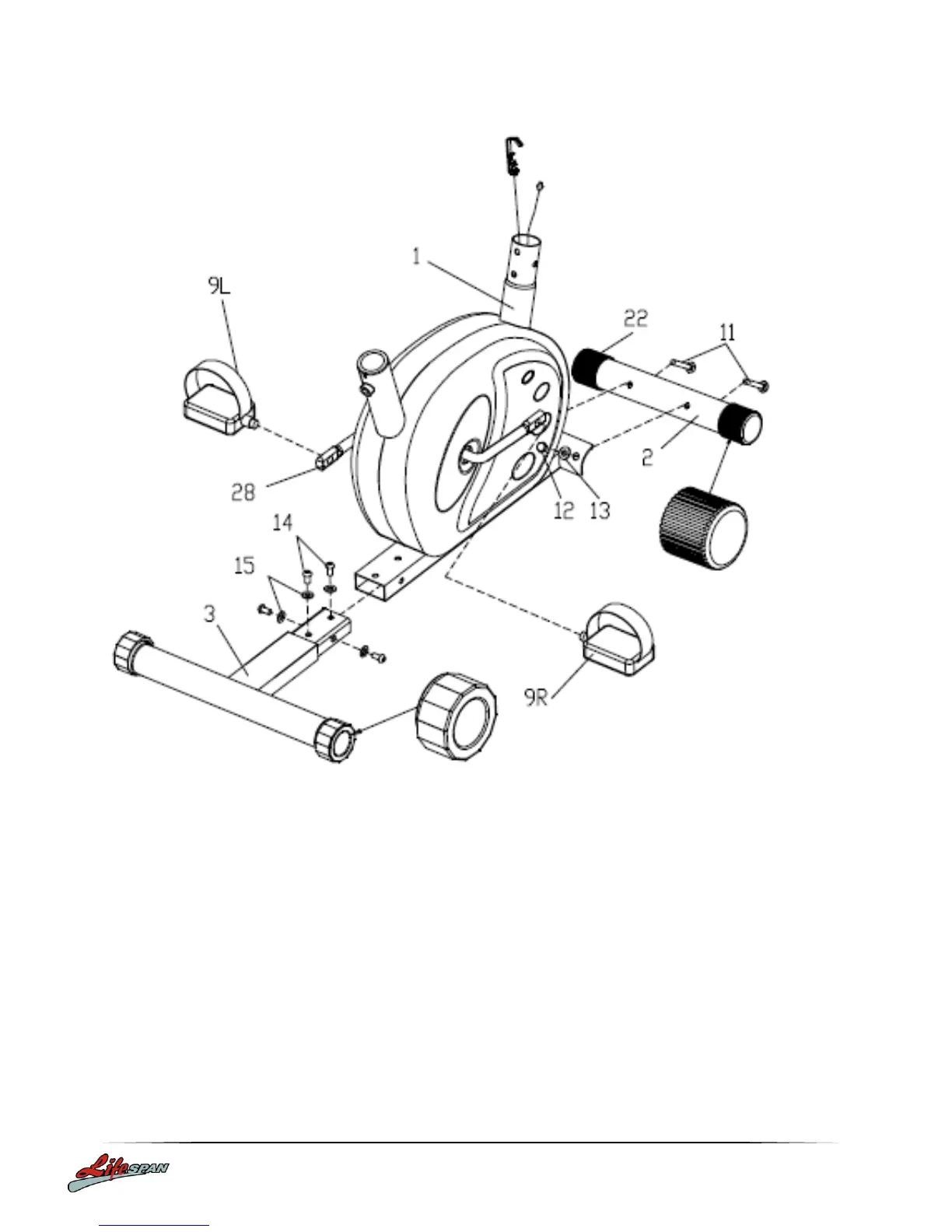

STEP 1:
1. Install the Front Stabilizer & Rear Main Frame Section.
 Attach the Front Stabilizer (2) onto the Main Frame (1). Secure with the Carriage Bolts
(11), Arc Washers (13) and Acorn Nuts (12) which are pre-attached to the stabilizer.
 Insert the Rear Main Frame Section (3) to the Base Beam, and secure with the Allen
Bolts (14) and Flat Washers (15).
2. Attach the pedal (9L/R) to the crank (28) respectively.
NOTE: The right and left Pedals (9L/R) are marked “R” for right & “L” for left.
 The Left pedal (9L) should be tightened in the counterclockwise direction
 The Right pedal (9R) should be tightened in the clockwise direction.

LifeSpan E-1 Specifications

General

Brand	LifeSpan
Model	E-1
Category	Exercise Bike
Language	English
