Assembling Your Elliptical
Step 5: Arm Attachment (continued)

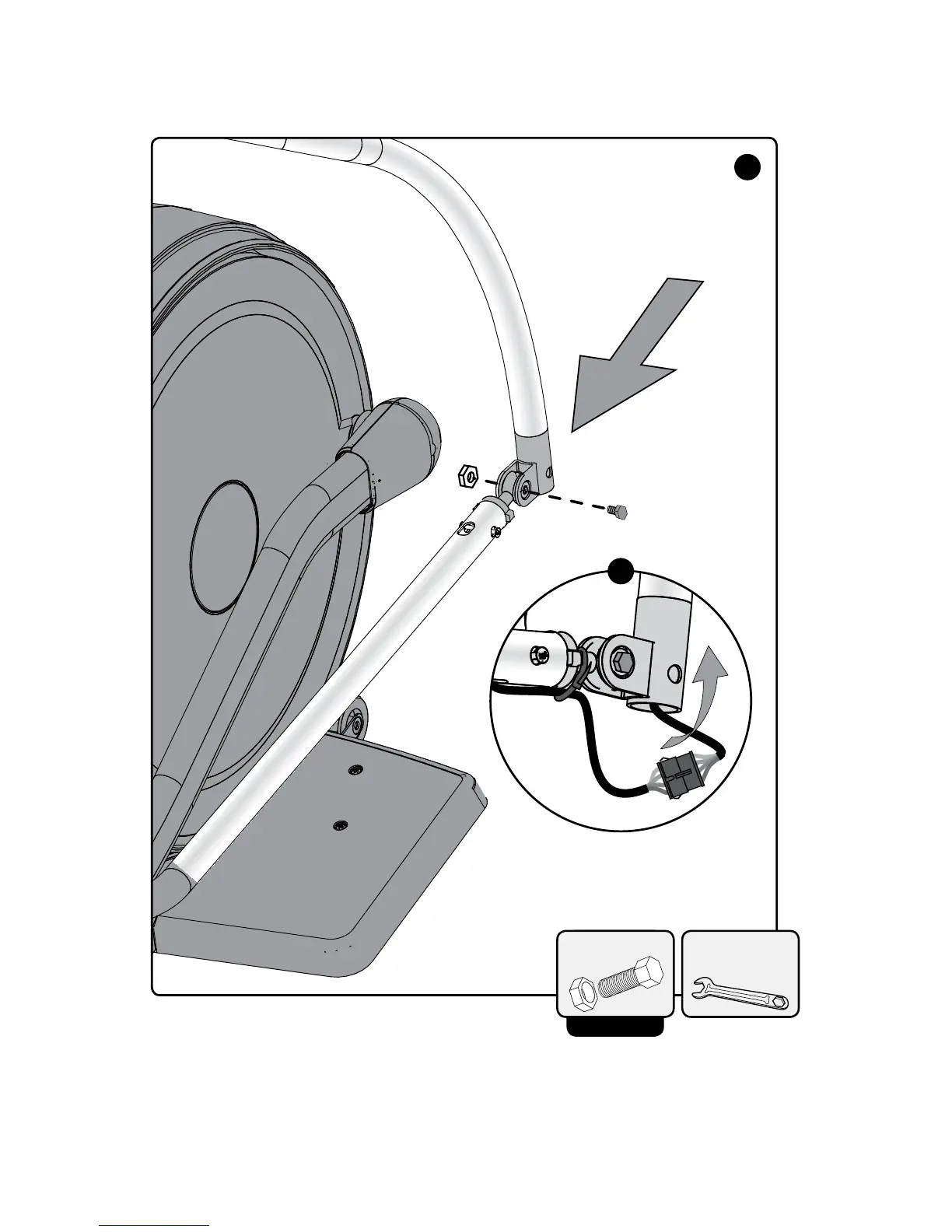

F. Using both 13mm wrenches remove pre-installed bolt and nut.
Attach lower arm bracket to pedal arm bearing with bolt and nut.
G. Connect pedal arm wire harness to lower arm wire harness.
F
13/17mm
Wrench (x2)
PRE-INSTALLED
M8 x 30L
G
Insert wire harness
connection into tube and
gently push past bolt hole
To Next Page
