TruScan 532 Single - Wavelength – Operators Manual Rev. No 02 Page 45 of 114

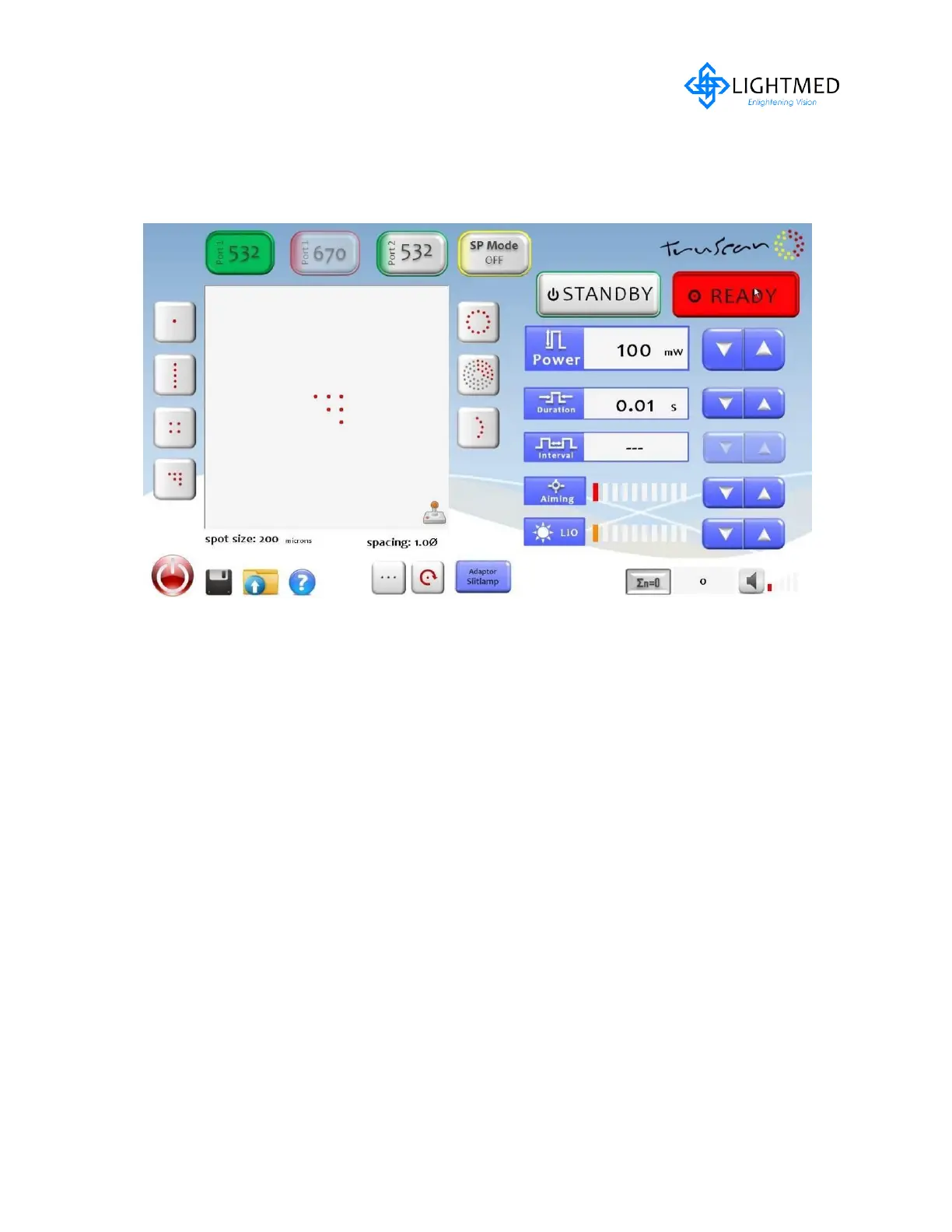

4. Triangles Pattern
It can be selected or activated by touching the screen and the final or pre selection
type will display in the pattern display area.
Available parameter setting can be selected as follows:
- Spot size: 100-500μm
- Spacing: 0.5, 1.0, 1.5 and 2.0 Ф (not available in 500μm)
- Rotation: 0, 90, 180 and 270 degree
