TruScan 532 Single - Wavelength – Operators Manual Rev. No 02 Page 46 of 114

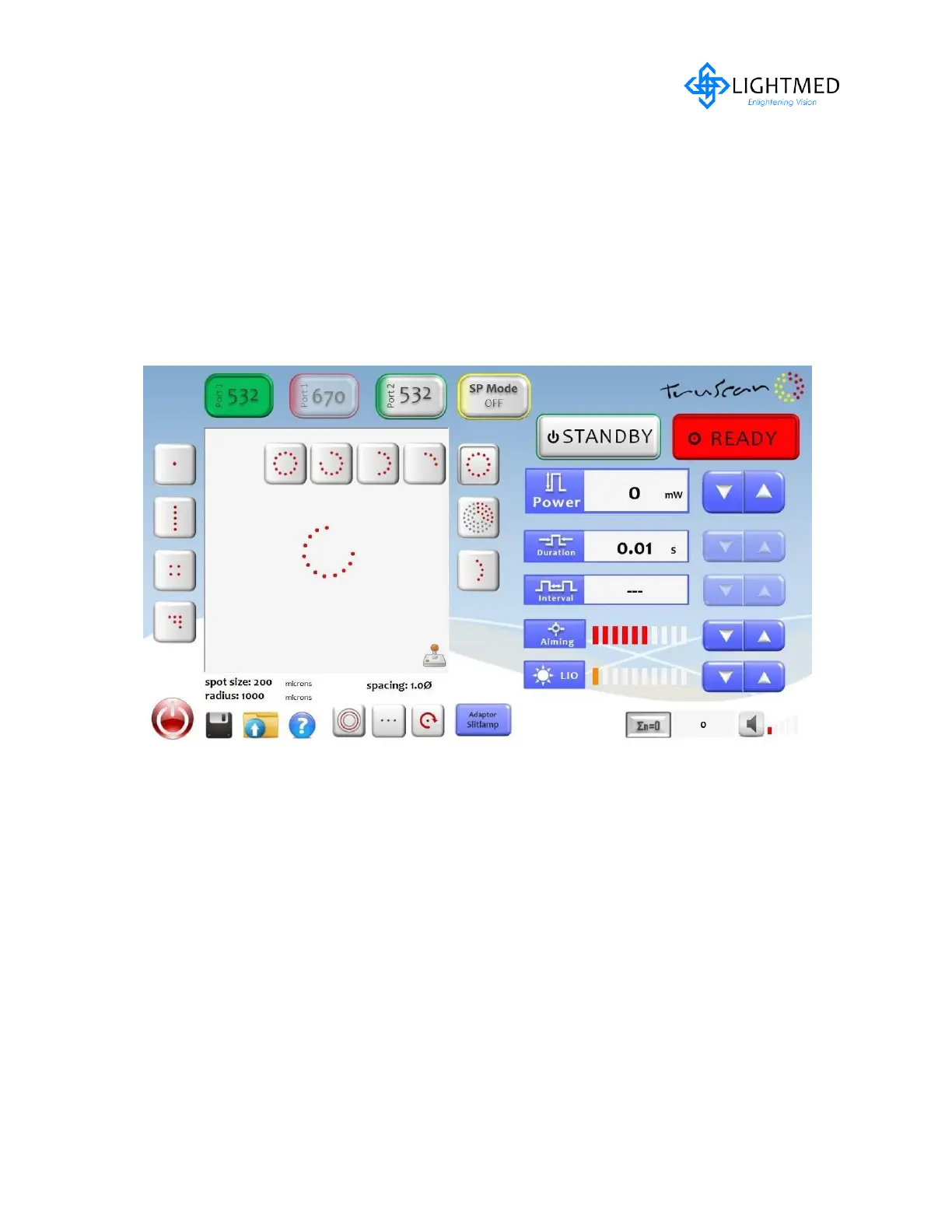

5. Circular Pattern
It can be selected or activated by touching the screen and the final or pre selection
will display in the patter display area. Its sub selection type is listed below:
Full circle
3/4 circle
1/2 circle
1/4 circle
Available parameter setting can be selected as follows:
- Spot size: 200-500μm
- Spacing: 1.0-2.0 Ф
- Radius: 1000 / 1500 / 2000μm
- Rotation: 0 ,90,180,270 degree (except full circular pattern)
