3. Front Panel Control MMX8x4-HT series – User's Manual 22

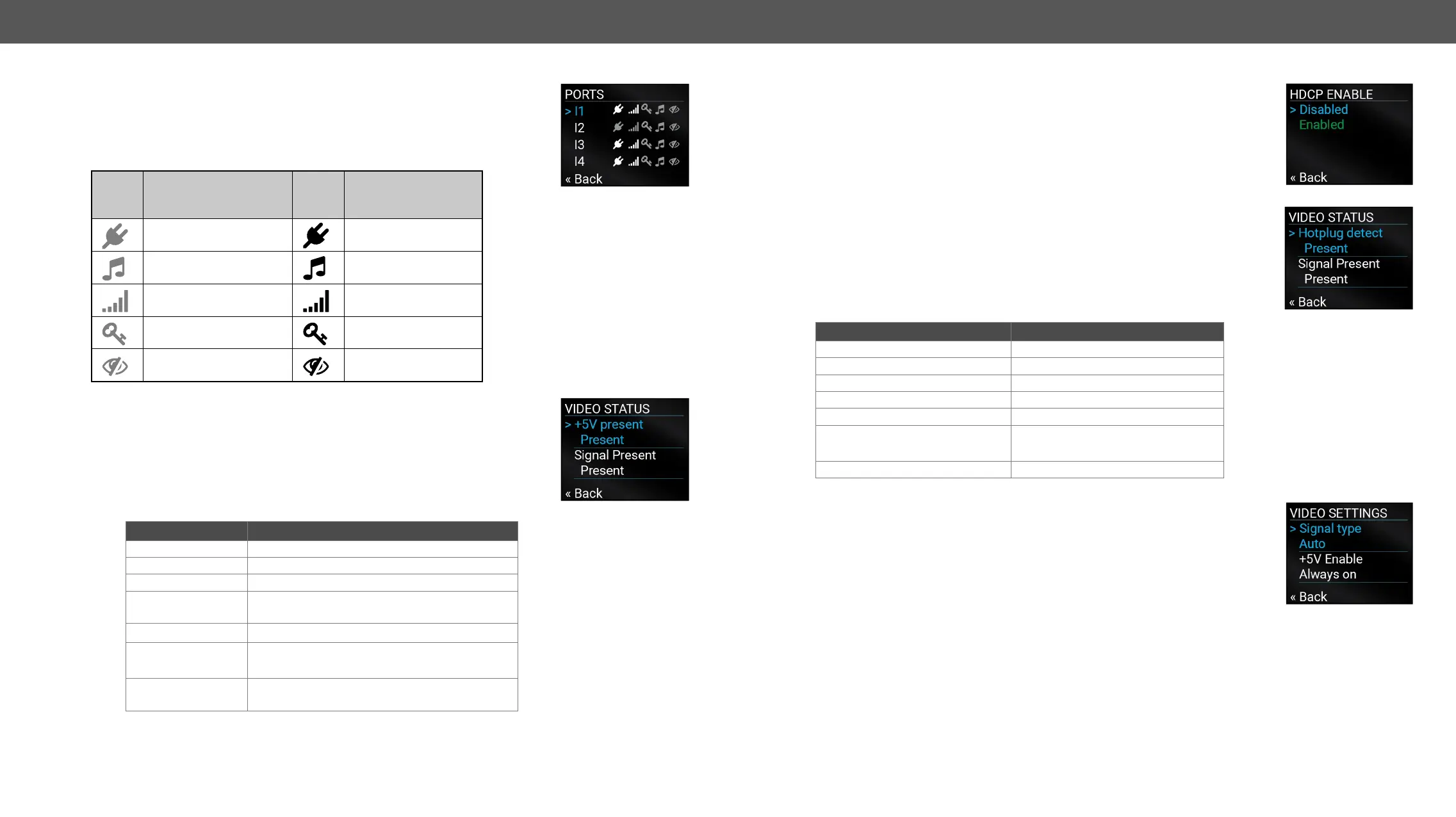

Ports Menu
icons display information about the port and the video signal (see below table).
Select the desired port and enter to see the submenu.
Grey
icon
Description
White
icon
Description
not
connected
connected
No audio signal in the
video stream
Audio is embedded in
the video stream
Signal is not present Signal is present
Signal is not encrypted
with HDCP
Signal is encrypted
with HDCP
The port is unmuted The port is muted
Video Status Submenu for Input Ports
The most important properties of the chosen input port can be checked in this
submenu:
Parameter Input port
Signal Present
HDCP Status
Embedded Audio
Active Resolution
x
Total Resolution
x
Video Settings Submenu for Input Ports #hdcp
▪
Video Status Submenu for Output Ports
The most important properties of the chosen output port can be checked in this
submenu:
Parameter HDMI OUTPUT
Hotplug detect
Signal Present
HDCP Status
Embedded Audio
Active Resolution
x
Total Resolution x
Video Settings Submenu for Output Ports #signaltype#hdcp
▪
▪
▪
