11. Technologies MMX8x4-HT series – User's Manual 178
Pixel Accurate Reclocking
Signal reclocking is an essential important procedure in digital signal transmission. After passing the
reclocking circuit, the signal becomes stable, jitter-free, and can be transmitted over more equipment like
reclocking. It removes not only intra-pair skew but inter-pair skew as well. The Pixel Accurate Reclocking

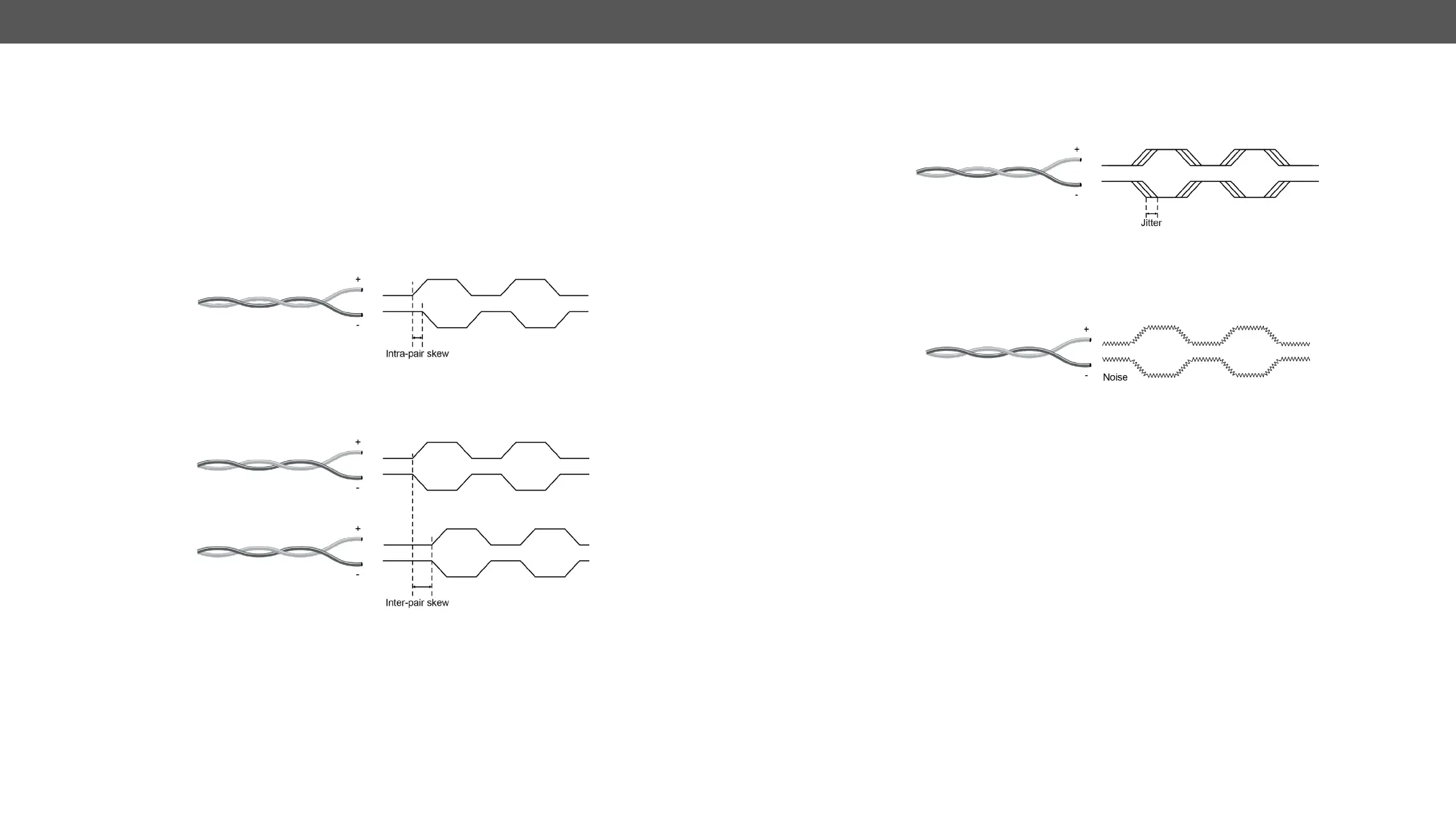

circuit eliminates the following errors:
Intra-pair skew
Inter-pair skew
Skew between two differential wire pairs in a cable. It is caused by different wire pair lengths or different
Jitter
value, but noise and other effects cause variations.
Noise
Electromagnetic interference between other electronic devices such as mobile phones, motors, etc. and the
