Limitorque SMB Series User Manual

SMB/SB Installation and Maintenance Manual 140-11000 • July 20034-13
Flow Control Division
Limitorque Actuation Systems
4.5.3 SMB-0 through SMB-5 Double Torque Switch
NOTE: Torque settings must be made with the switch mounted in the actuator.
Piece numbers correspond to Figure 4.5 and Table 4.7.
To set the torque switch:
1. Verify all electric power is OFF.
2. For the open or close direction torque switch, loosen Machine Screw (piece #35) and set Pointer (piece #7) at the desired torque
setting. The higher the number, the higher the torque output of the actuator.
3. Tighten Machine Screw (piece #35).
4. For torque seated valves, operate the valve electrically to seat the valve. Ensure tight shut-off by tripping the torque switch
contacts.

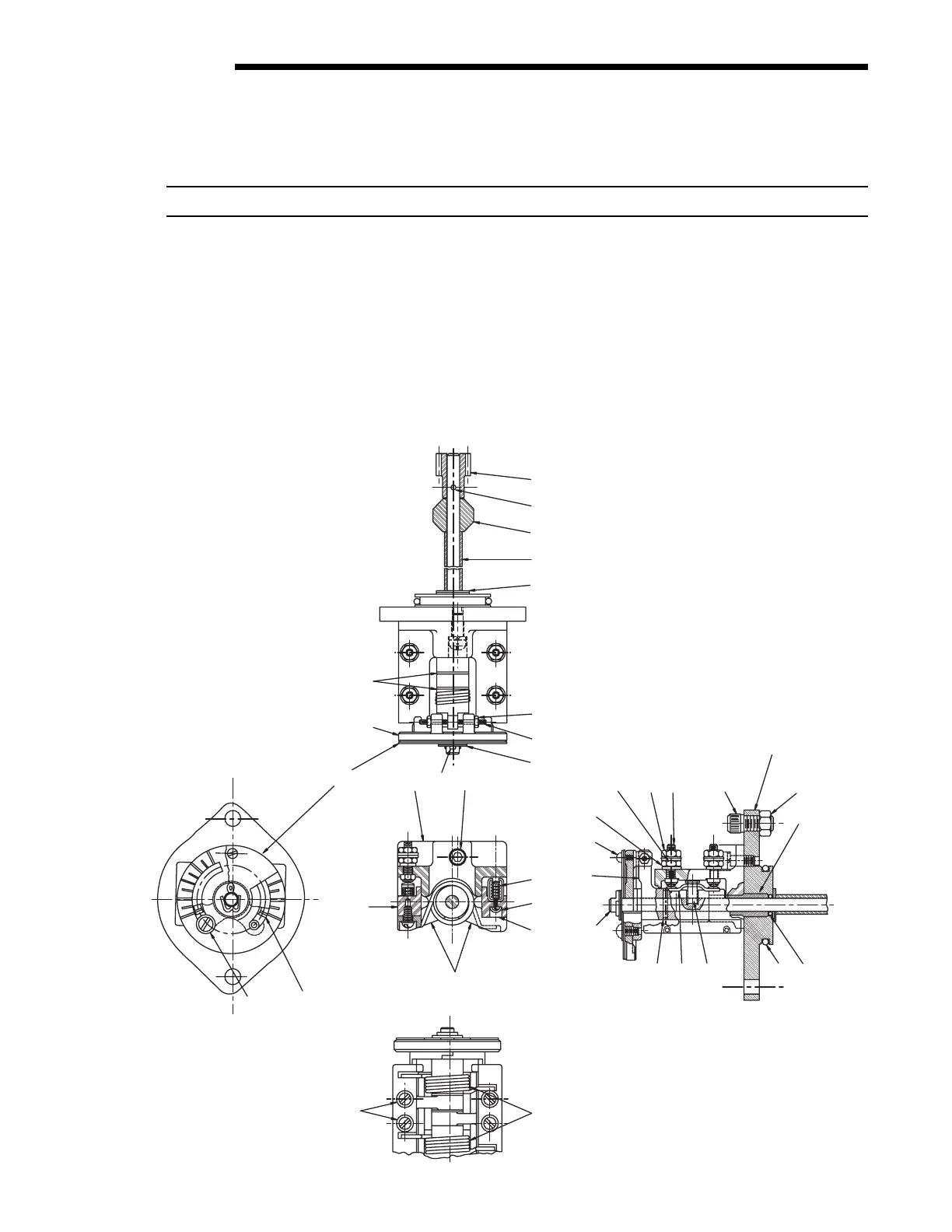

Figure 4.5 – SMB-0 through SMB-5 Double Torque Switch
3
4
3
2
1
2
5
1
3
41
18
9
6
36
27
27
39
29 16 42 47
3
20
2122101528
45
37
33
17
4
2
1314344
7
39
35
5
25
12
13
30
34
25
25
23
8
11
01-473-0057-3
