Limitorque SMB Series - Figure 7.6 - SMB-00 Parts Diagram - Side View

SMB/SB Installation and Maintenance Manual 140-11000 • July 20037-14
Flow Control Division
Limitorque Actuation Systems

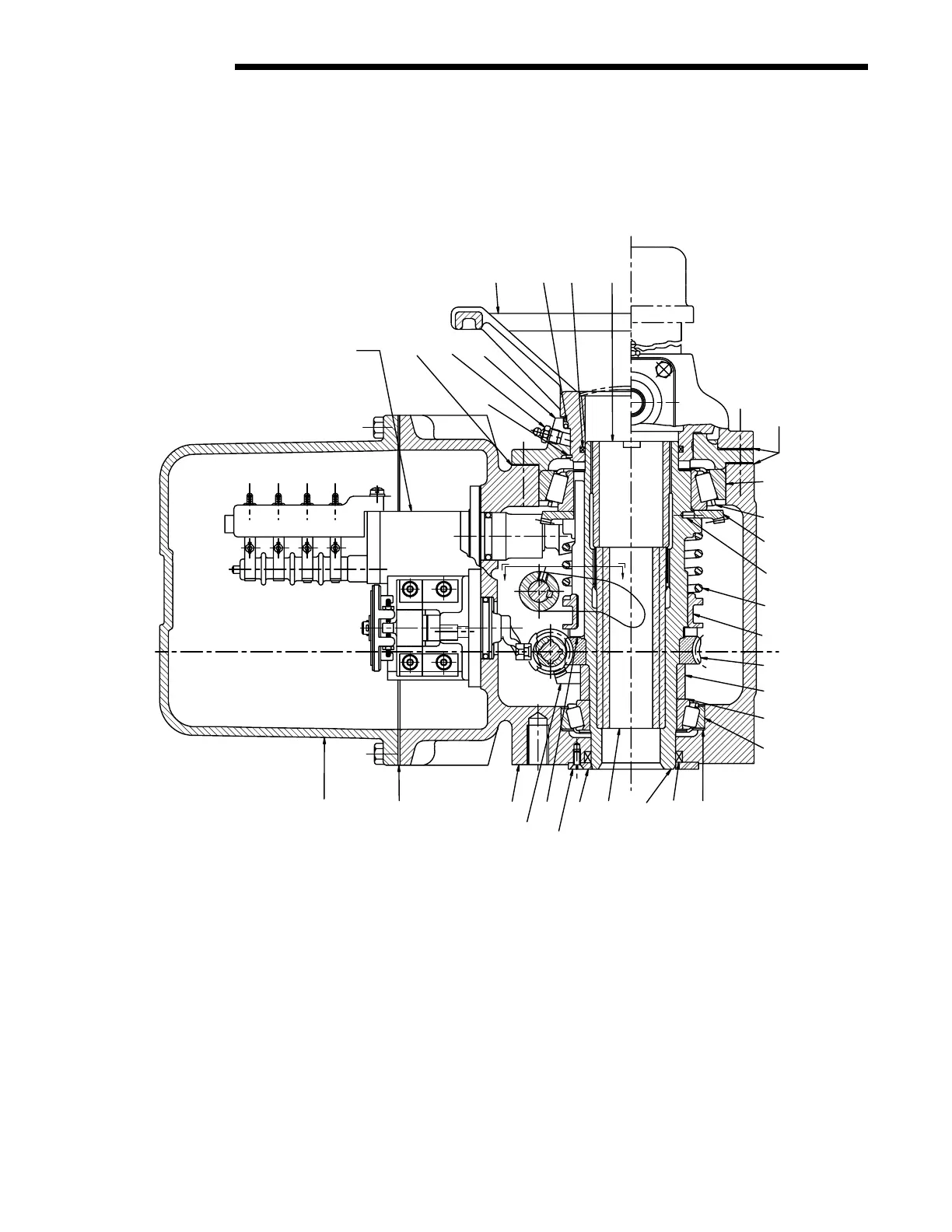

Figure 7.6 – SMB-00 Parts Diagram – Side View
A A
99
6
85
90 93
88
89 95 94 30
107
63
64
12
42
43
28
7
29
66
65
51
78
48
22
14
1
572
92
148
141
01-403-0121-4
