Limitorque SMB Series User Manual

SMB/SB Installation and Maintenance Manual 140-11000 • July 2003

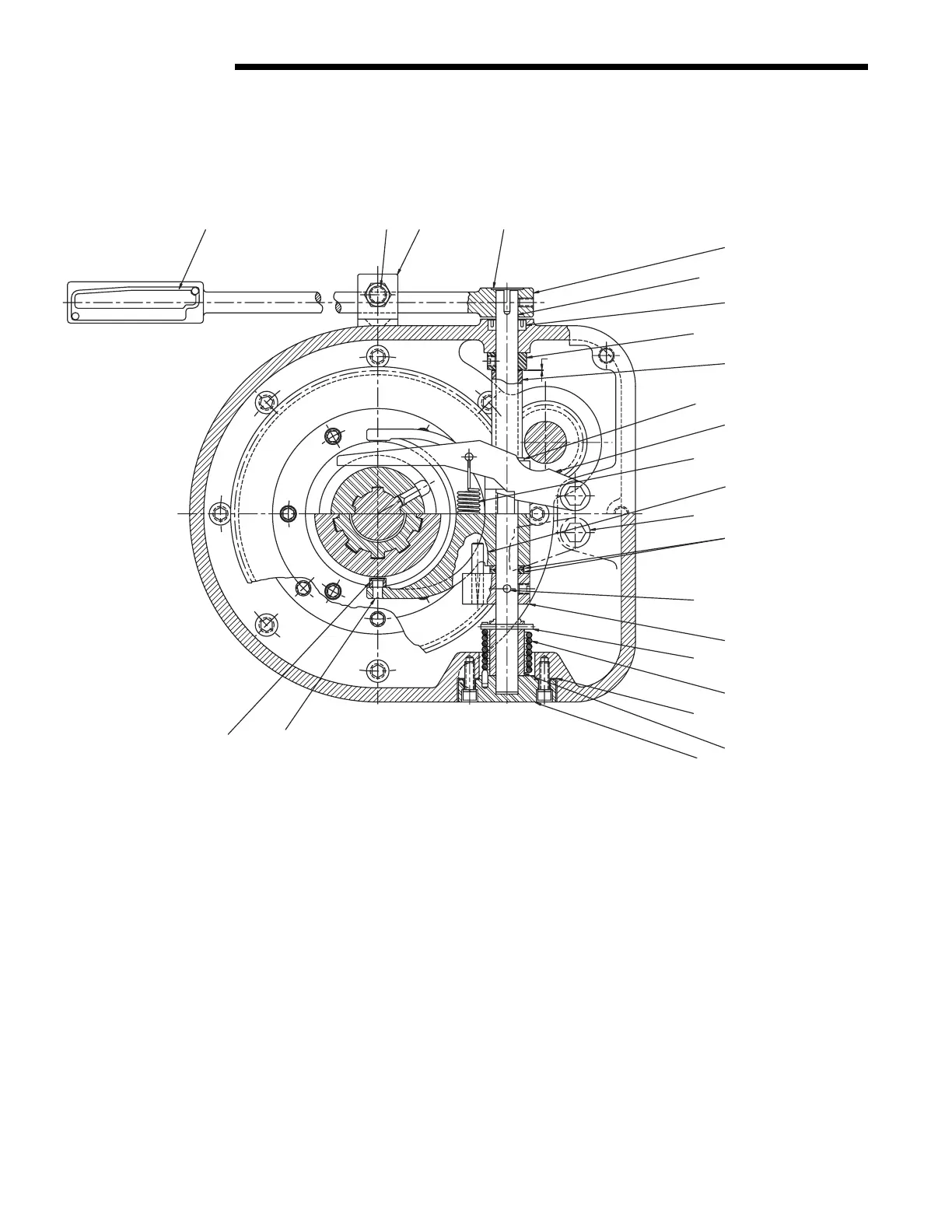

Figure 7.15 – SMB-5 and 5T Declutch Housing Detail
7-36
Flow Control Division
Limitorque Actuation Systems
SECTION A-A
.010 CLEARANCE
(MINIMUM)
71 72 28 112
49 53
59
81
101
110
33
67
70
103
30
27
57
66
70
109
34
69
105
9
01-413-0037-4
