WTR Series
Parts Breakdown
WTR Installation & Maintenance Manual 330-15000 • Revision A • August

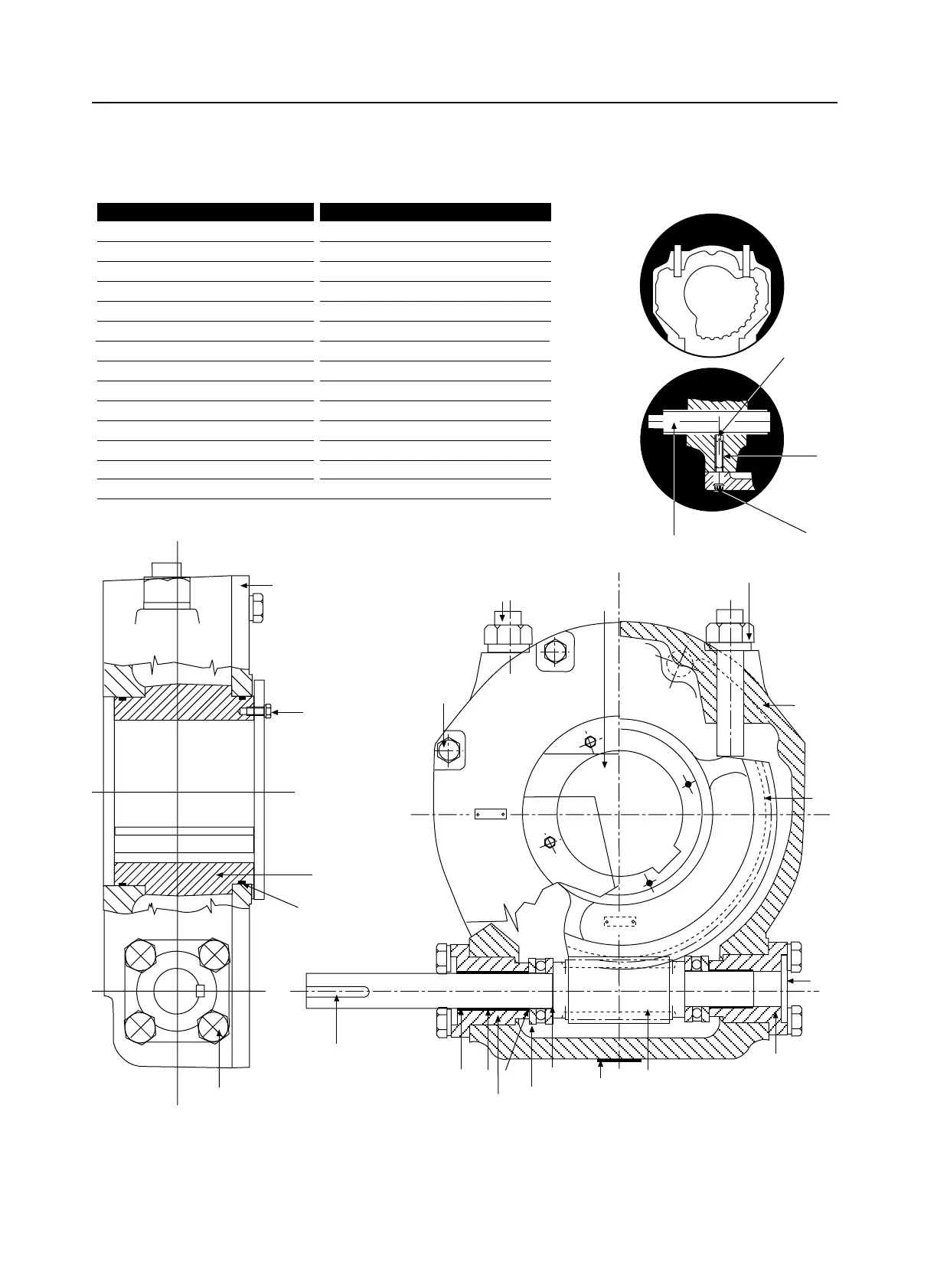

Figure 6.2 (1 of 2) – WTR with SGA parts breakdown (430 through 575)
6-3
Piece Quantity Description
1 1 Housing
2 1 Housing Cover
3 1 Wormshaft
5 1 Drive Sleeve
7 1 Pointer Cap
8 1 Closed Endcap
8A 1 Open Endcap
10 2 Thrust Bearing
11 1 O-Ring
12 2 O-Ring
13 2 Bushing
16 A/R Shims
18* 1 Blanking Plate
20 1 Nameplate
Piece Quantity Description
21 1 Key
22 2 Stop Screw
23*** 2 Hex Nut
23A** 2 Pad
24*** 2 Seal Washer
25 A/R Cap Screw
26 A/R Lockwasher
27 4 Cap Screw
28 4 Lockwasher
29** 2 Setscrew
29B** 2 Plug**
30 8 Cap Screw
31 8 Lockwasher
32**** 1 Splined Adapter
* Only on WTR-430 *** Not on WTR-575
** Only on WTR-575 **** Not Shown
29
23A
29B
22
Side
WTR-575
Stop Arrangement
Top
8A
21
OPEN
SHUT
1
5
23, 24
7
22
25, 26
18*
8
3
16
20
10
11
13A
13
30,31
12
27, 28
2
5
