Limitorque WTR Series - Page 30

WTR Series
Parts Breakdown
WTR Installation & Maintenance Manual 330-15000 • Revision A • August

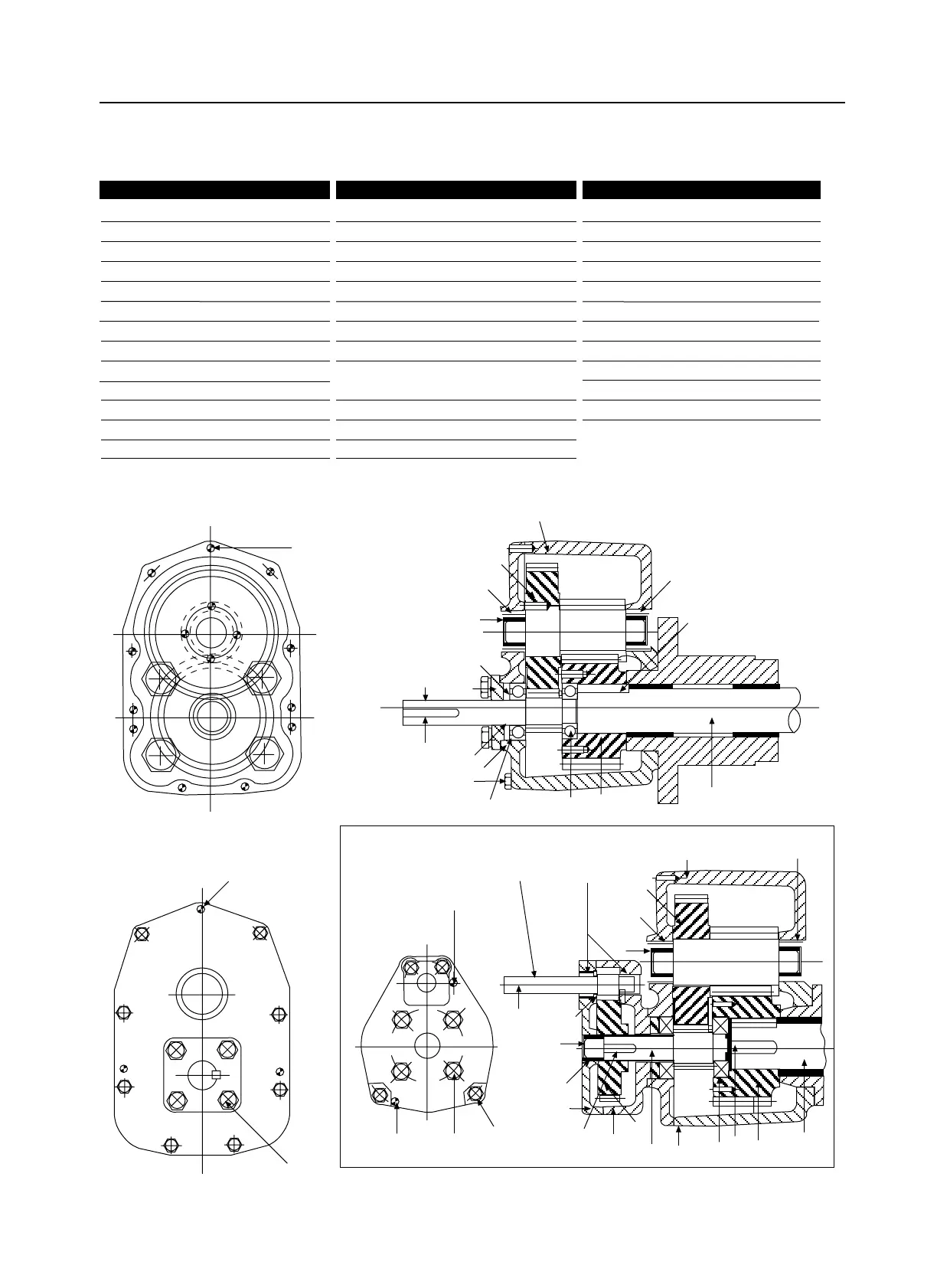

Figure 6.2 (2 of 2) – WTR with SGA parts breakdown (430 through 575)
6-4
Piece Quantity Description
1 1 Housing
2 1 Cover
3 1 Wormshaft
4 1 Output Gear
5 1 Input Gear
6 2 Bearing
6A 1 Bushing
6B 1 Bushing
7* 1 O-Ring
8 1 Packer
9 A/R Dowel Pin
10 2 Core Plug Qu
11 1 Key
Piece Quantity Description
12 A/R Key
13 A/R Lockwasher
13A 4 Lockwasher
14 4 Lockwasher
15 4 Cap Screw
16 A/R Cap Screw
16A 4 Cap Screw
17 1 End Cover
18 1 Intermediate
Gear Sub-Assy
19 A/R Shim
20 1 Housing
21 1 Housing Cover
Piece Quantity Description
22 1 Output Gear
23 1 Input Pinion
24 1 Key
25 2 Bushing
26 1 Bushing
27 1 Plug
28 1 Roll Pin
29 1 Dowel Pin
30 4 Cap Screw
31 4 Lockwasher
32 1 Oil Seal
* WTR-575 Only
9
16A, 13A
28
Double Reduction SGA
19
6
1
6A
12
18
10
17
8
5
11
7
2
13, 16
4
3
6B
27
20
21
22
23
25
32
26
1
6A
18
10
8
5
4
3
6B
12
6
2
11
24
Triple Reduction SGA
28
29
30, 31
14, 15
