Output:

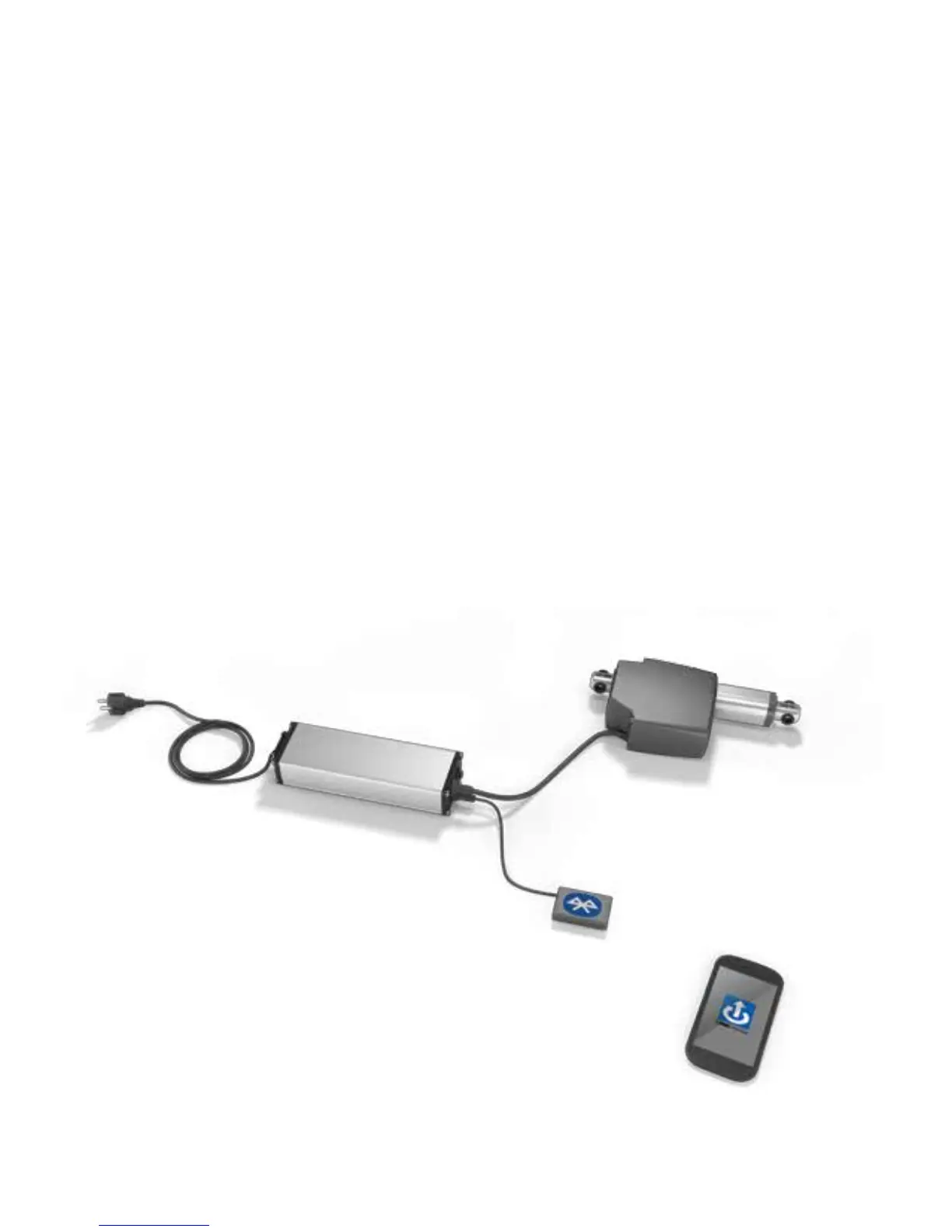

System example:
Page 11 of 28
• Nominal output voltage 29 V DC (V
IN
)
• Ripple ≤500 mVp-p
• Total Output current 5.5 A at a duty cycle of 10% Ton= 2 minutes
• Please be aware if connecting an external control to an SMPS configured with an output interface:
Hand control. The unit connected should be capable of tolerating overvoltage, caused by soft stopping
actuators. Overvoltage caused by soft stopping actuators can reach up to 38 V.
• Furthermore, please be aware that the supply to control units are limited to 300 mA each.
