Linak SMPS-T160

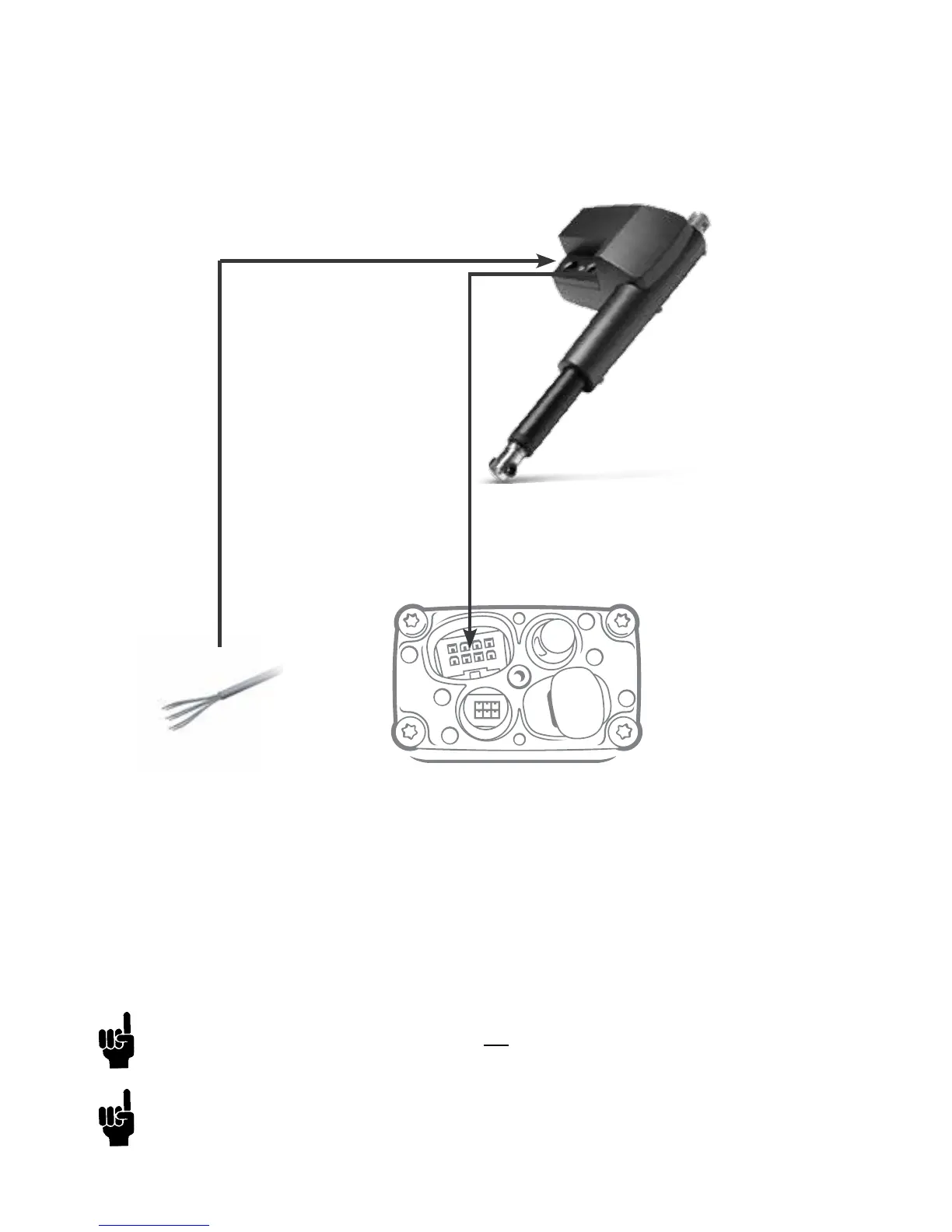

Connection diagram - Single run, LA35 IC:
Please be aware that it is only possible to connect one actuator (LA35 IC) and flying leads to this system!
For more information on the flying leads, please see the I/O specifications in the LA35 user manual
Fig. 2 : SMPST160+6UX0X0
Flying leads
LA35 IC
TM
SMPS-T160
Page 15 of 28
