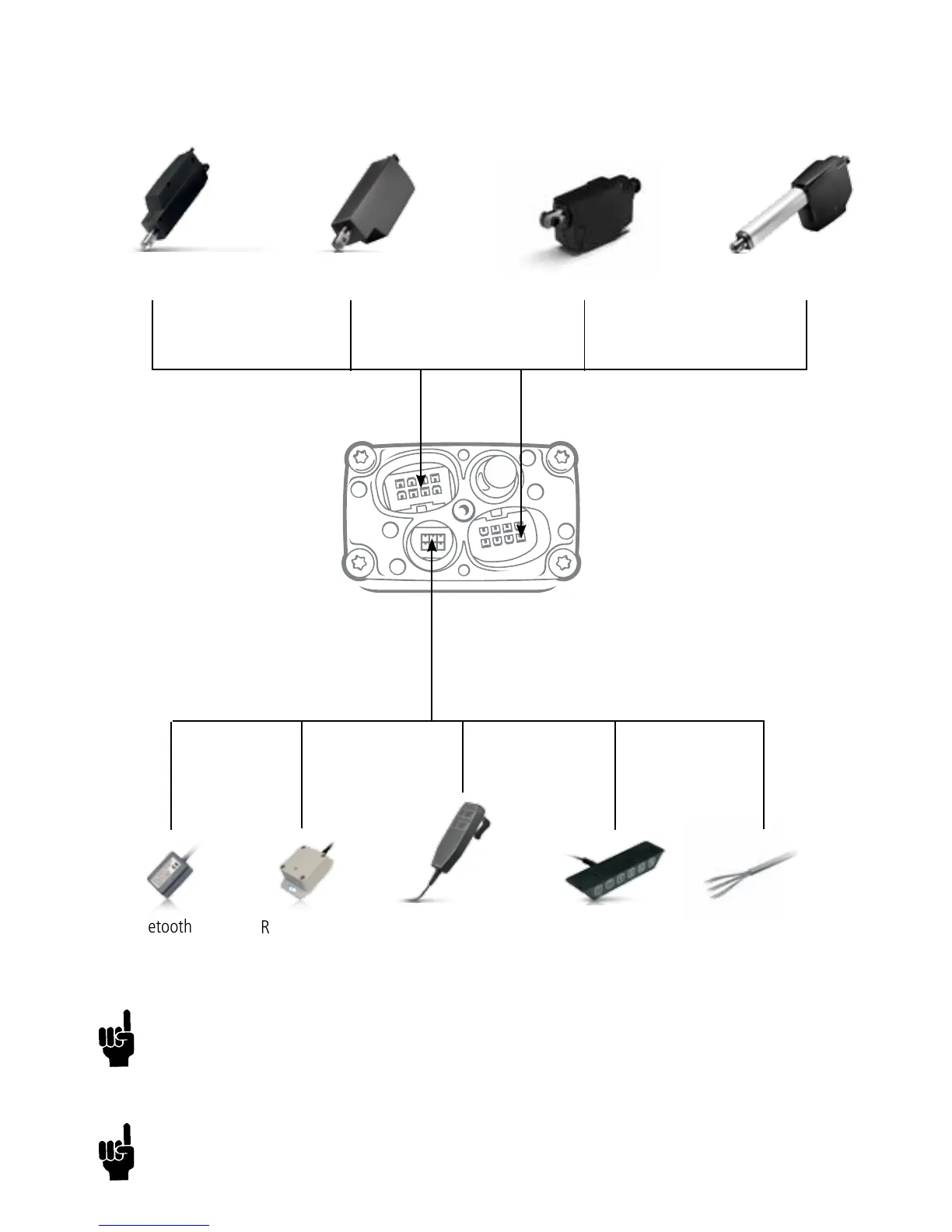

Connection diagram - simultanious or parallel run:
SMPS-T160
LA14 IC
TM
LA25 IC
TM
Bluetooth
receiver
RF receiver
HB40
DP
Signal cable
• For these solutions the two actuators used must be of the same type: LA12 IC, LA14 IC, LA23 IC or LA25 IC
• You will need one control for each actuator (BT/RF/HB/DP/flying leads).
For more information on the flying leads, please see the I/O specifications in the the user manual for the
chosen actuator
Fig. 4: Simultanious: SMPST160+6UX2X0 (BT,RF,HB,DP) / SMPST160+6UX4X0 (flying leads)
Parallel: SMPST160+6UX4X0 (BT,RF,HB,DP) / SMPST160+6UX5X0 (flying leads)
