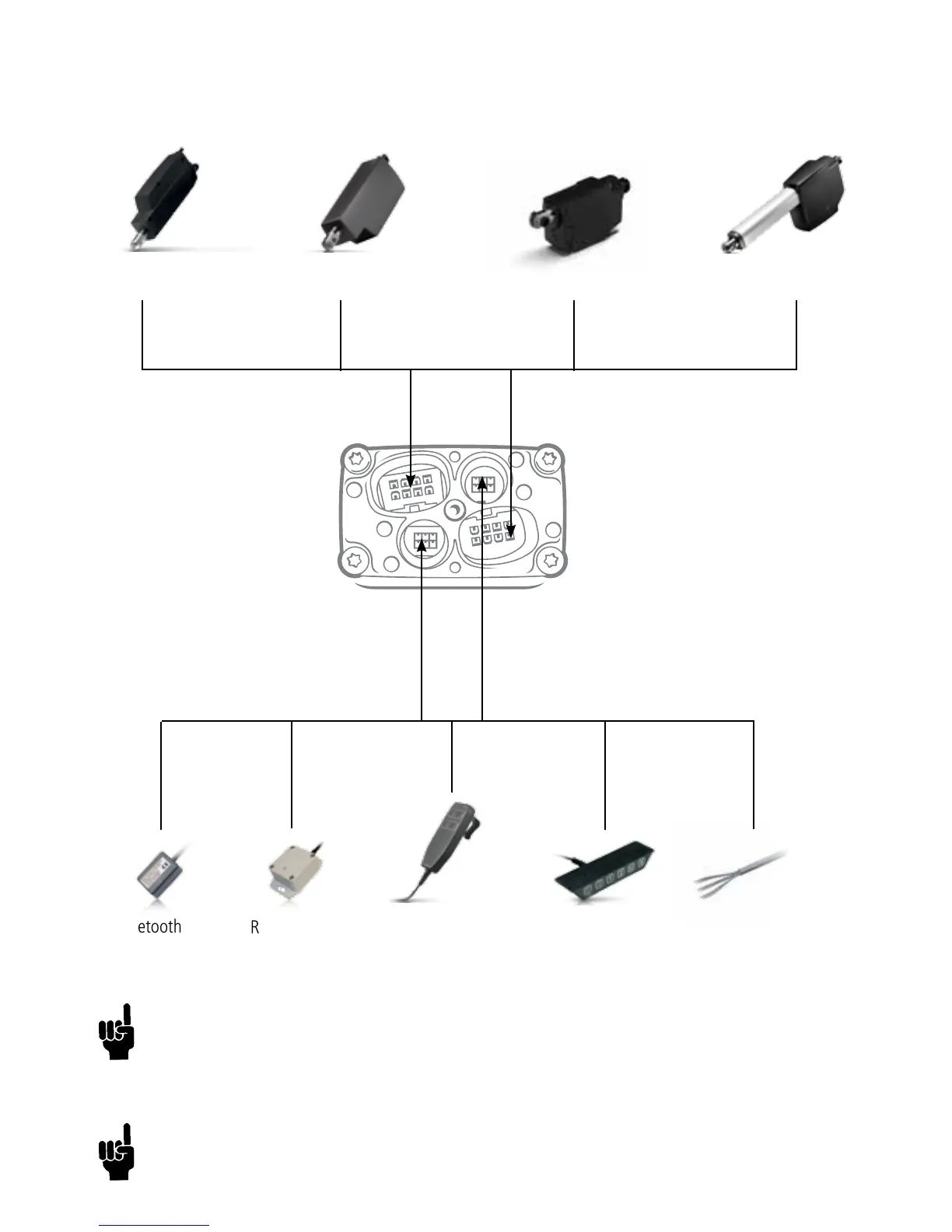

Connection diagram - two actuators run individually:
SMPS-T160
LA14 IC
TM
LA25 IC
TM
Bluetooth
receiver
RF receiver
HB40
DP
Signal cable
• For this solution it is possible to connect either two identical IC actuators (e.g. LA14 IC and LA25 IC)
in the two actuator sockets OR two different IC actuators.
• You will need one control for each actuator (BT/RF/HB/DP/flying leads).
For more information on the flying leads, please see the I/O specifications in the the user manual for the
chosen actuator
Fig. 3 : SMPST160+6UX0X0
Please be aware
Page 16 of 28
LA12 IC
TM
LA23 IC
TM
