Lifting Column LC3 IC | 24

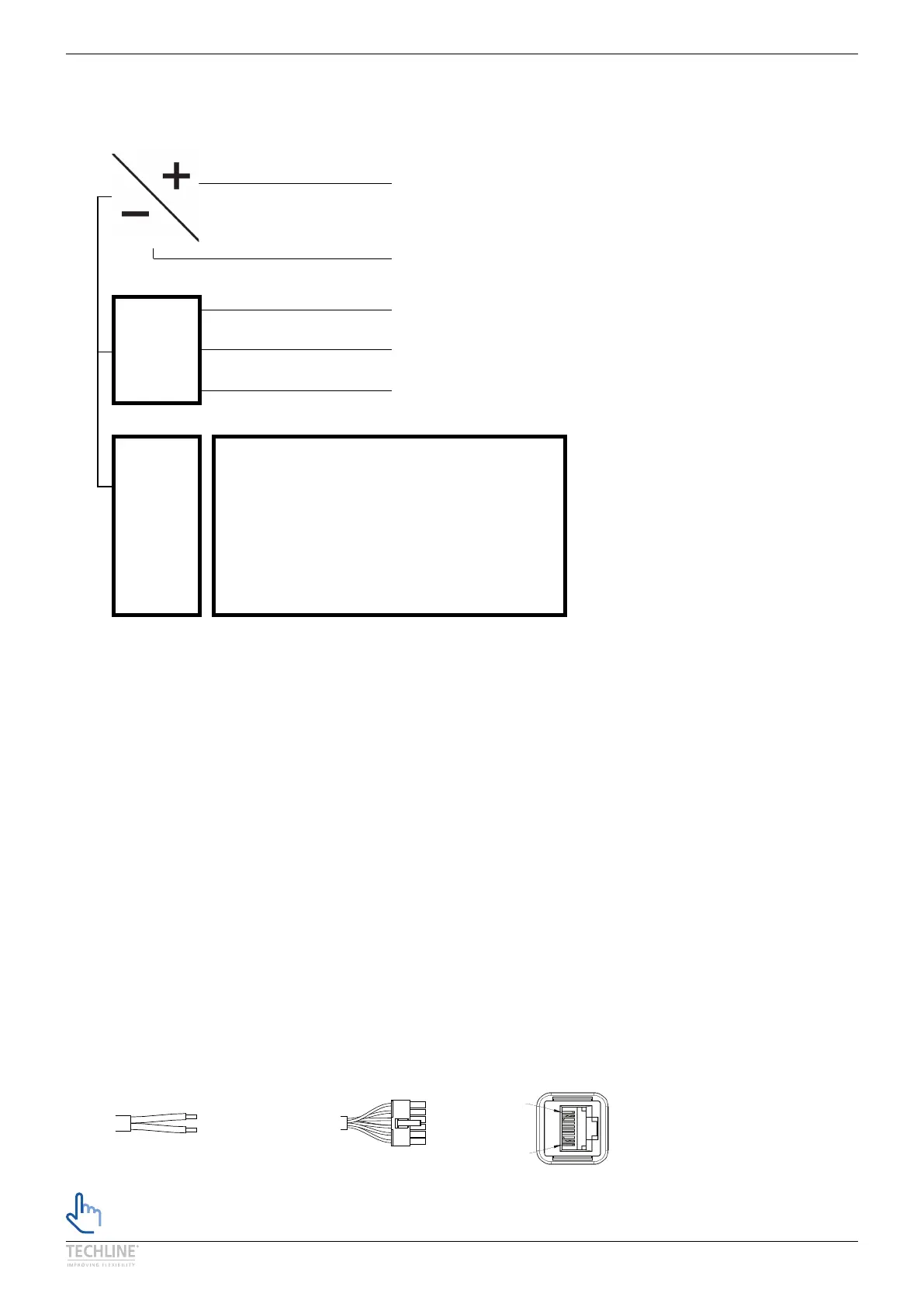

Connection diagram ELEVATE Modbus TCP/IP
LC3 XXX XXX F700 00 XXXX X X 3 1 4 - X H 0 (ELEVATE Modbus)
24V DC
Signal
BROWN
BLUE
BLACK
RED
Ethernet RJ45
ORANGE
Run In
Run Out
Split Power Supply
Communi-
cation
Please be aware that if the power supply is not properly connected, you might damage the column!
Ethernet
8
1
Power Cable Signal Cable
Flying Leads Flying Leads
(Molex mini-fit 12-pin)
