Lifting Column LC3 IC | 20

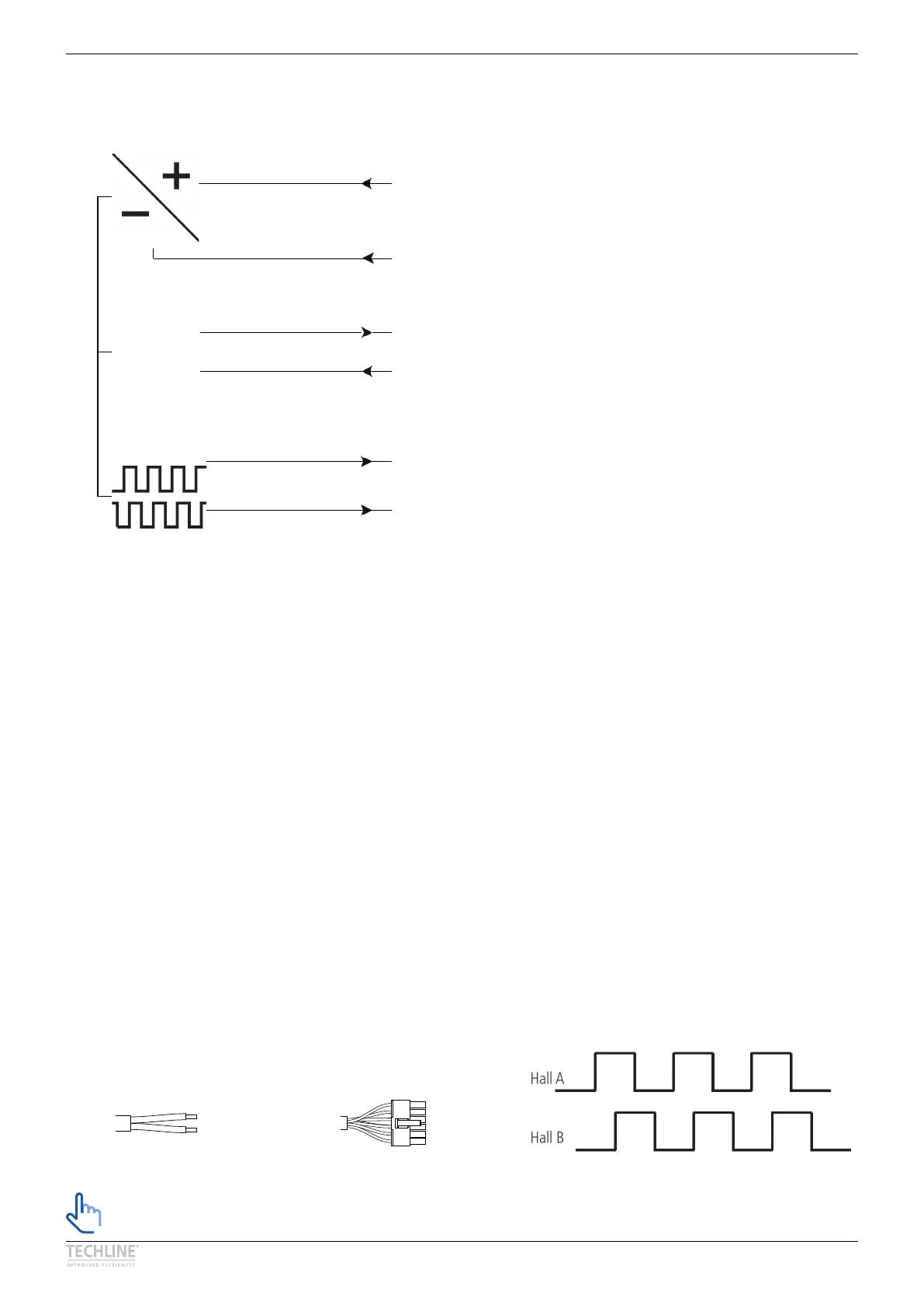

Connection diagram ELEVATE Pro
LC3 XXX XXX F600 1H XXXX 6 2 3 1 4 - 1 G 0 (ELEVATE Pro)
24V DC
4-20mA
PROPORTIONAL
BROWN
BLUE
YELLOW
GREEN
BLACK
RED
Hall A
Hall B
Please be aware that if the power supply is not properly connected, you might damage the column!
Diagram of dual Hall:Power Cable Signal Cable
Flying Leads Flying Leads
(Molex mini-fit 12-pin)
