Lifting Column LC3 IC | 28

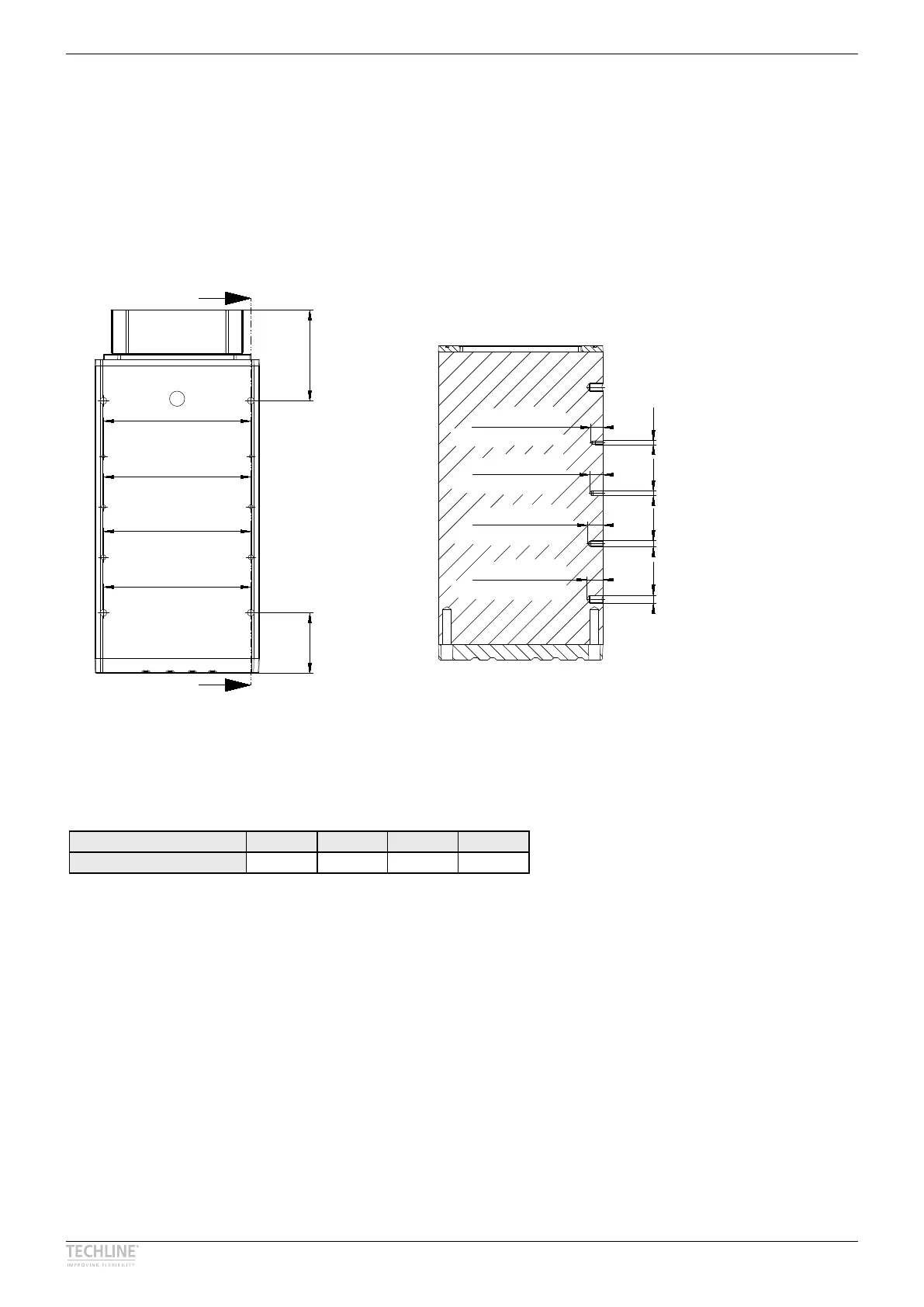

Mounting of tools on the side of an LC3 IC
It is possible to mount tools on all 4 sides of the LC3 IC at the same time� However, it requires that the
holes for mounting are placed with different distances from the top and/or bottom plate� Otherwise the
mounting screws will collide�
Minimum distance from the top and bottom plate must be observed�
Screw type M8 M6 M5 M4
Screw torque Nm 17 7 4 2
Screws used for mounting of a product on the side of the LC3 IC must be 8�8�
3-stage
Note: There is no installed grounding cable connecting the top and bottomplate�
A
A B
B
146 0.5
146 0.5
101 0.5
101 0.5
43 0.5
163 1 129 1 146 1
4315
M10x1.5
30
M10
30
REP = STANDARD-SBU
B-B
SECTION A-A
MIN.90MIN.60
(M8) 146
(M6) 144 -146
(M5) 143 -146
(M4) 142 -146
M8
Drill-Max. 16
Thread-Max 14
M6
Drill-Max. 15
Thread-Max 13
M5
Drill-Max. 13
Thread-Max 11
M4
Drill-Max. 12
Thread-Max 10
½ S + 280mm
Created By Pamir Hamid 2022-07-07
Modified By Pamir Hamid 2022-07-11
SCALE : 1:5
Drawing No.: TEC-0001888
SECTION C-C
C
C
M10x1.5 M10x1.5
