IS09 ECN2087
15

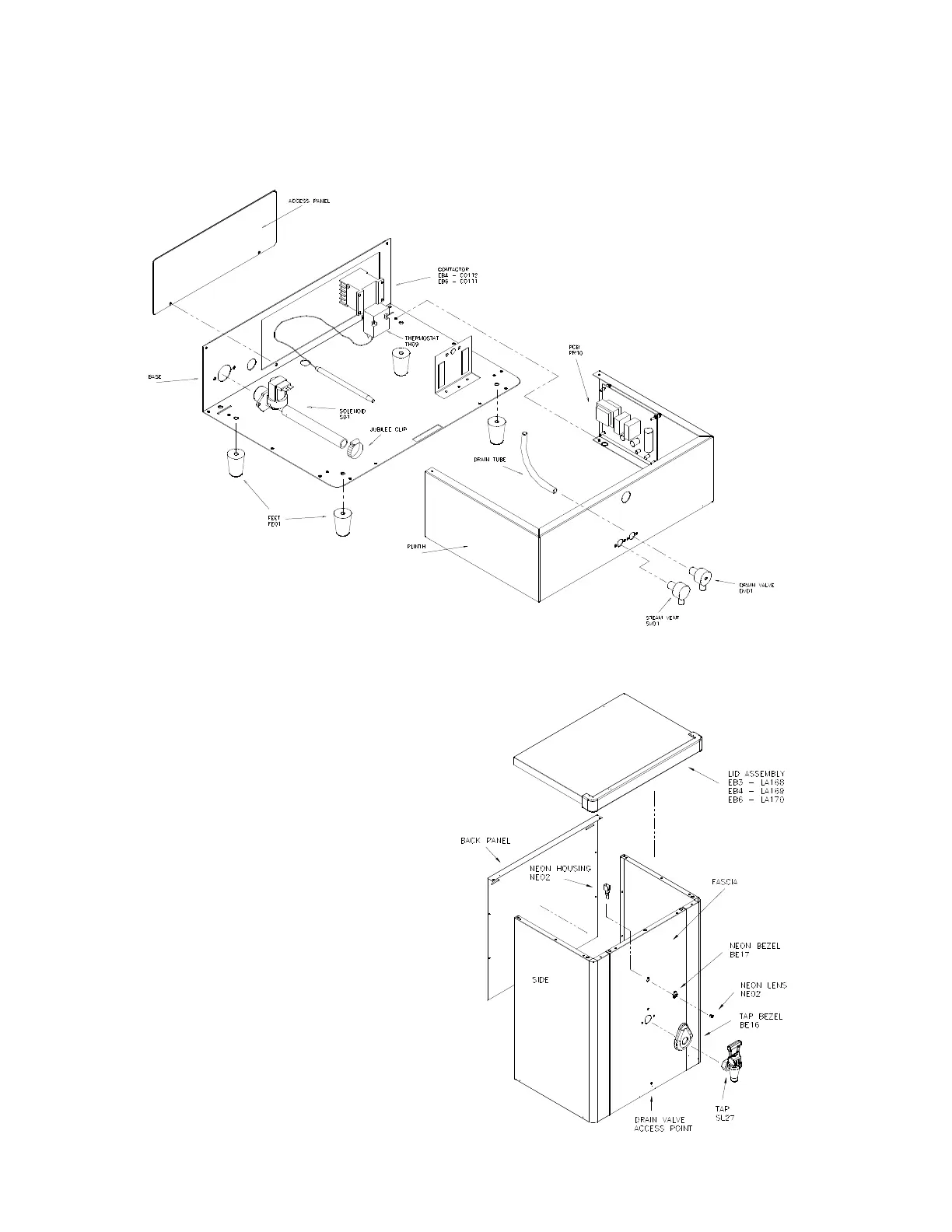

Base Assembly
Body Assembly
The body manufactured as a complete part, panels
are not available separately.
The lid bezel is fitted to the lid; clips are
required in the fitting.
The tap bezel is screwed to the bodywork.
The neon lens and neon housing are serviceable
parts.
Tap nut (SL20) and circlip (SL21) are not
shown.
