Monitored & Non-Monitored Pump Indicator LED’s
The 203 style Monitored and Non-Monitored pumps have LED’s on the circuit board that indicate the
pump is receiving power to the circuit board and that the pump is actually pumping grease. The PC
board is accessed by removing the plastic plug located on the front of the pump. The LED’s are
located on both sides of the rotary switches.

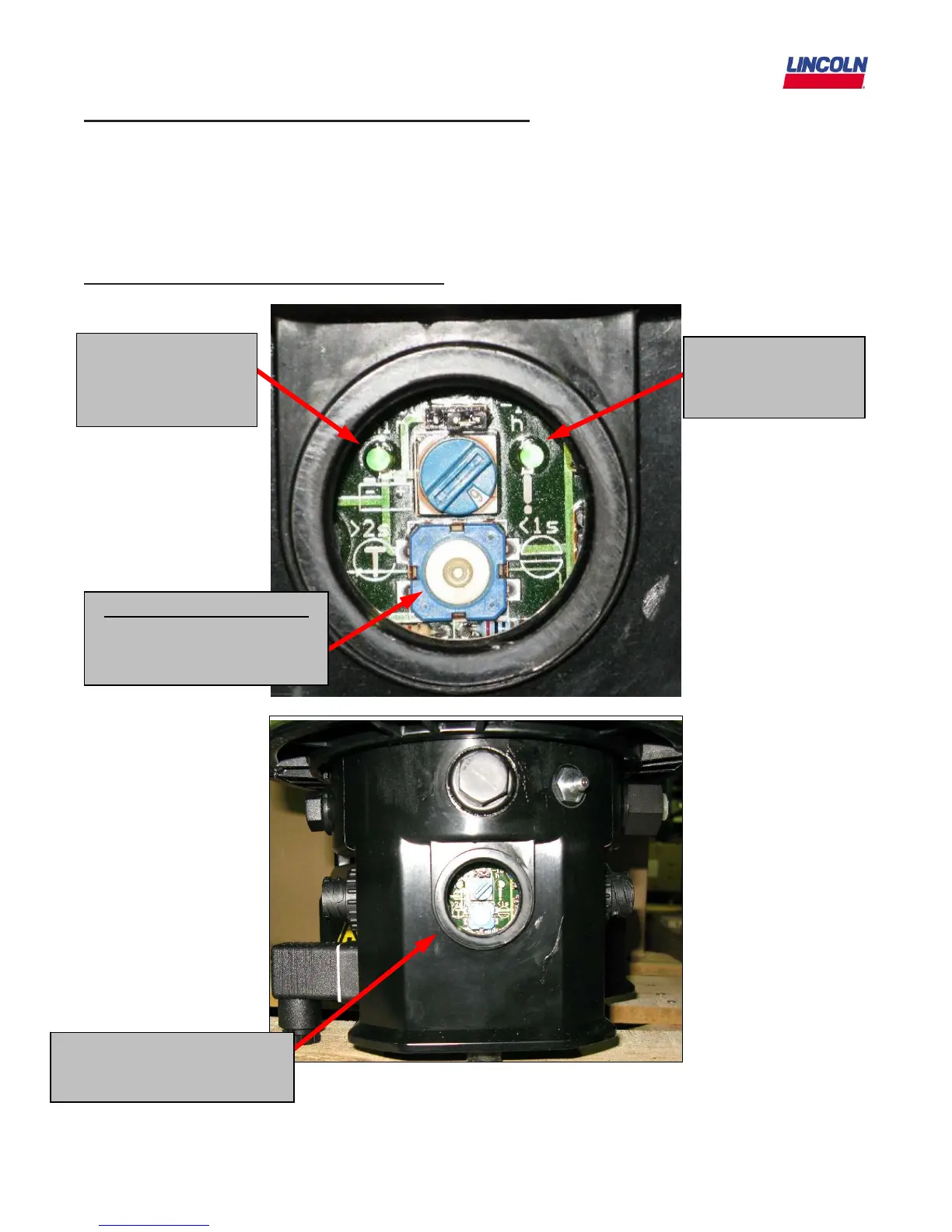

Monitored Pump (uses proximity switch)
LED lights up
when power is
applied to the PC
board.
LED lights up
when the pump is
in operation.
Manual Lube Pushbutton
Depress for 2 seconds to
initiate a manual lube
event
Remove the plug on the
front to gain access to the
PC board.
