Linde E 30-02 - Fuses Operation; Fuses; Checking, Renewing the Fuses; Automotive Fuses

44
336 804 3001.0704
e3363348 e3363349
11
12
10
9
1 2 3 4 5 6 7 8
123
4567
8
Fuses Operation
Checking, renewing the fuses
Automotive fuses
ATTENTION
Render the electrical system dead before chang-
ing fuses.
NOTE

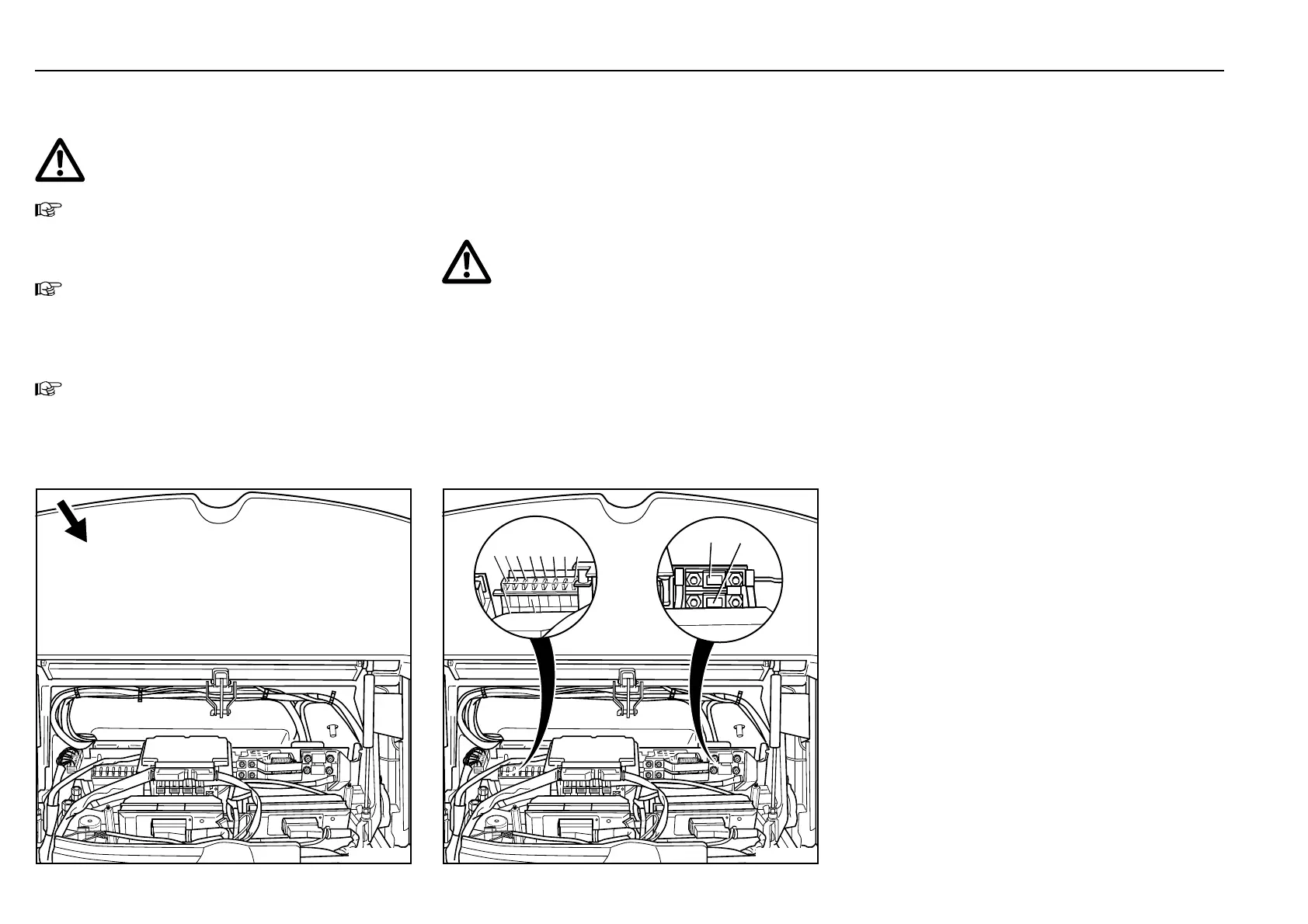

The electrical system and single fuses are located in the
counterweight under the cover.
- Open the electrical system cover.
NOTE
On models E25 / E30 / E25/600 and E30/600, the fuse box
(9) with the automotive fuses is located on the left-hand
side of the truck. The two main circuit fuses are located
on the right-hand side.
NOTE
On model E 20 / E 20/600 the fuses can be easily accessed
from the battery side when the overhead guard is in the
2nd lock-in position. The fuse box with the automotive
fuses is located on the truck right-hand side and the two
main circuit fuses are on the left-hand side.
- Remove the fuse box (9) cover (10).
The fuses protect the following circuits:
Note the numbers on the fuse box.
ATTENTION
Only use genuine Linde replacement fuses with
a high voltage rating.
1 Battery discharge indicator (6F1) .............................10 A
2 Control circuit fuse (1F2) ..........................................10 A
3 Horn (4F3) ...................................................................5 A
4 Fan (1F4) ....................................................................5 A
5 Fuse (1F5)...................................................................5 A
6 Discharge circuit (1F6) ...............................................5 A
7 Discharge circuit (F7)................................................10 A
8 Discharge circuit (F8)..................................................5 A
Main circuit fuses
The two fuses protect the following main circuits:
11 Left traction motor, Right traction motor (F2) ........ 355 A
12 Hydraulic pump motor (F1) .................................... 250 A
