Linde E 30-02 - Check and Oil the Pedal and Travel Control Linkage Pivots and Overhead Guard Lock; Grease the Overhead Guard Pivots; Check and Lubricate Other Pivots and Joints

73
336 804 3001.0704
e336-02/25
e336-02/62
12 3 4
5678
1
e336-02/63
1

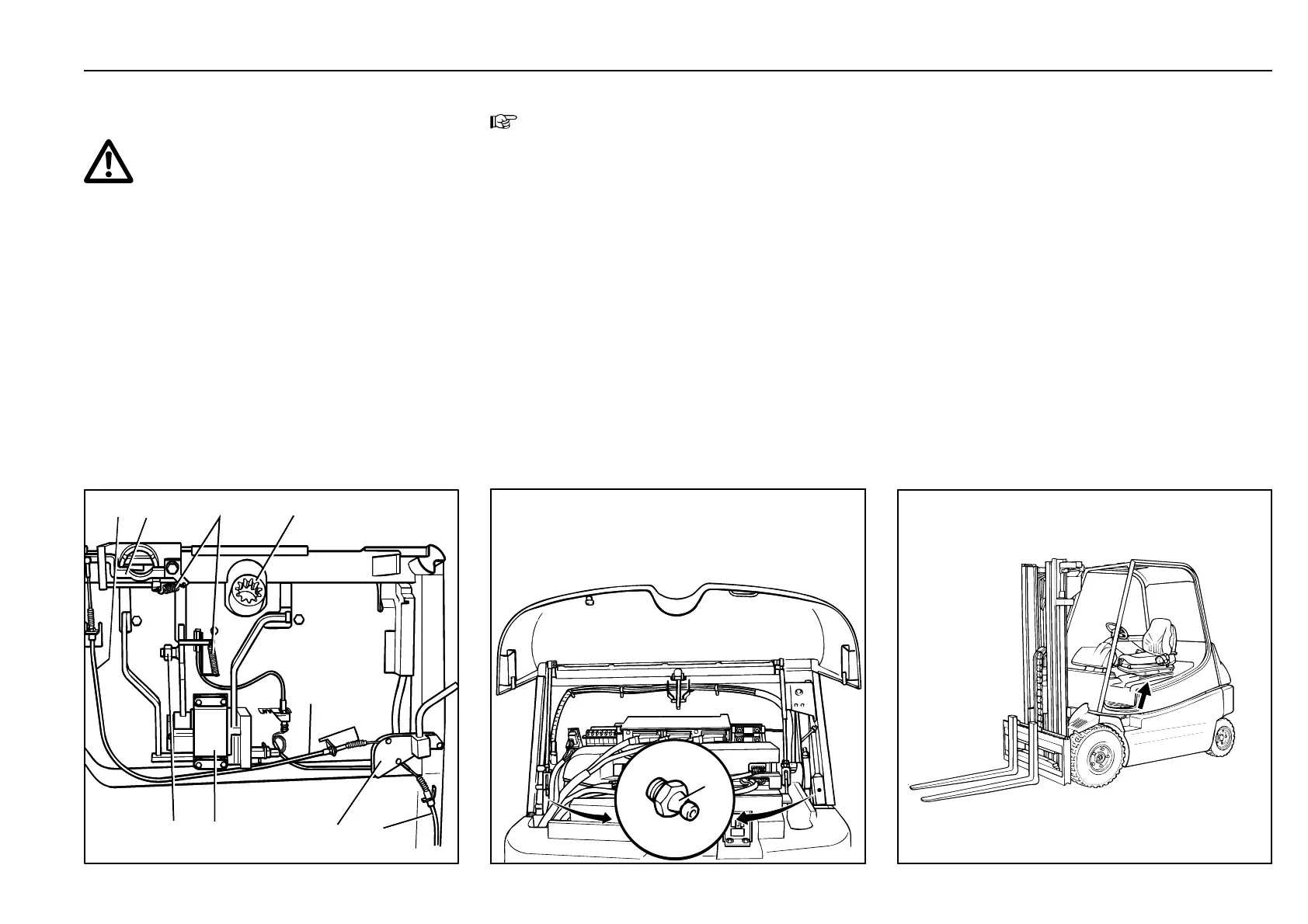

Grease the overhead guard pivots
NOTE
Use lubricating grease.
- Open the electrical compartment cover.
- Lubricate the grease nipple (1) on the left and right pivot
pins.
- Lubricate with a grease gun until new grease emerges at
the pivots.
- Close the electrical compartment cover.
Check and oil the pedal and travel control
linkage pivots and overhead guard lock
ATTENTION
The accelerator sensor (7) must only be adjusted
by trained skilled personnel. Please contact your
authorised distributor.
- Open the overhead guard to the 2nd lock-in position.
- Check the pin and joint retainers for security.
- Lightly oil the lever pivots and clevises as required.
- Inspect the tension springs (3) for proper operation.
- Lightly oil the lock (2), Bowden cables (1 and 5), tension
springs and lever (6) as needed.
- Grease the disconnect point (4) of the steering.
- Lubricate the areas at which the pedal contacts the rocker
(8) with Molikote-G compound (oil, if not available, but do
not use grease).
- Close the overhead guard.
Check and lubricate other pivots and joints
Inspect and oil the pivots and joints of:
- seat guide
- wiper-washer system*
- cabin door locks and hinges*
* Option
Inspection and maintenance every 500 to 1000 hours or annually Maintenance
