Fuses (options) Operation
ATTENTION
Render the electrical system dead before chang-
ing fuses.
NOTE

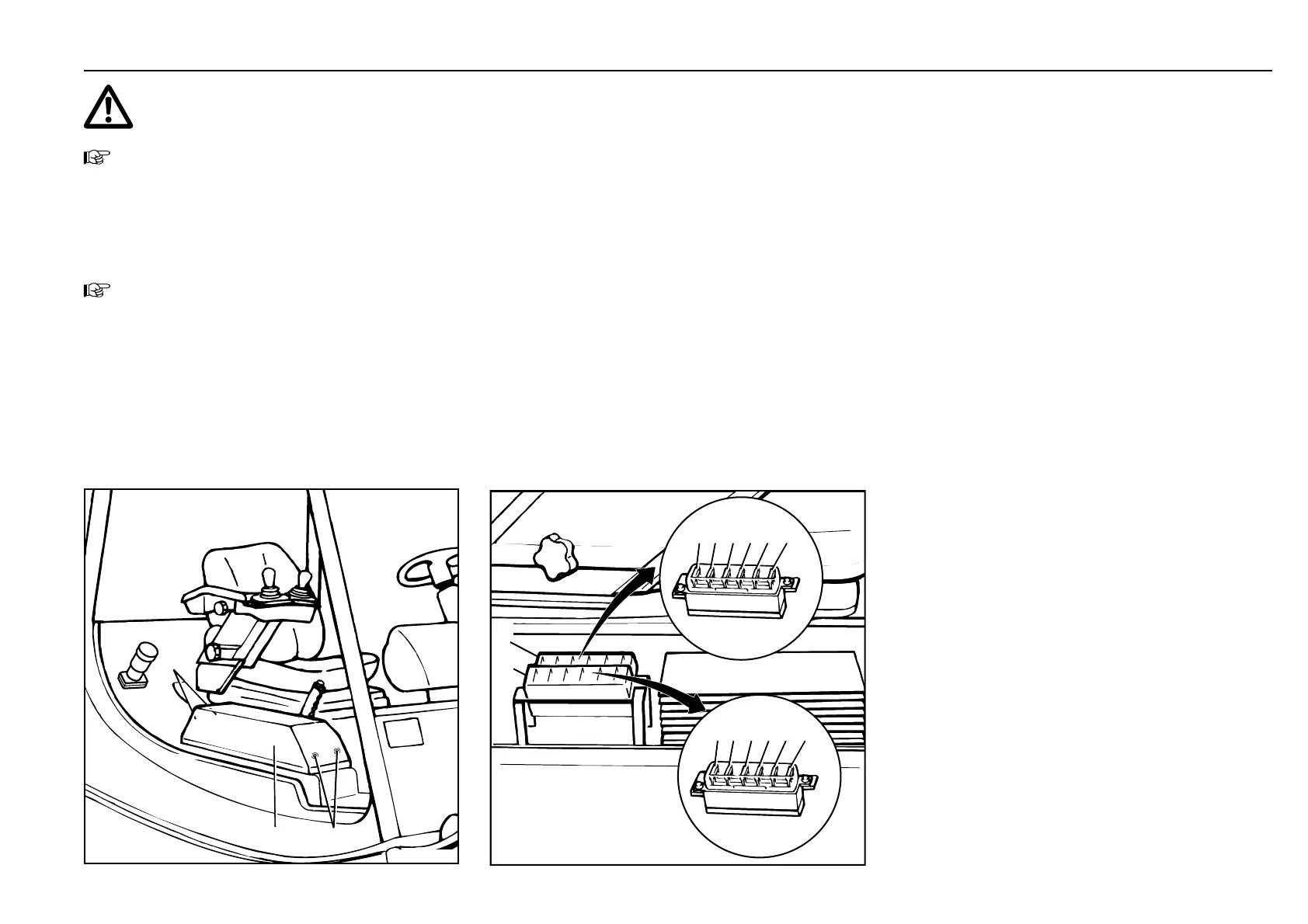

The fuses for the options are located under the electrical
compartment cover (2).
- Remove the screws (1).
- Remove the fuse box covers.
NOTE
Depending on the equipment installed, there can be one
or two fuse boxes.
Fuse box (I)
1 Working light (9F11) ................................................ 15 A
2 Working light (9F12) ................................................ 15 A
3 Working light (9F13) ................................................ 15 A
4 Voltage converter (9F14) ......................................... 15 A
5 Windscreen wiper (9F15) ........................................ 15 A
6 Heater (9F16) ........................................................... 20 A
Fuse box (II)
1 Lighting system, front windscreen wiper (5F21) ..... 15 A
2 Turn signal lights, rear windscreen wiper (5F22) .... 15 A
3 Left dip beam (5F23) ............................................... 10 A
4 Right dip beam (5F24) ............................................. 10 A
5 Left position lights (5F25) .......................................... 5 A
6 Right position lights (5F26)........................................ 5 A
