Linde HPR-2 - Page 36

36

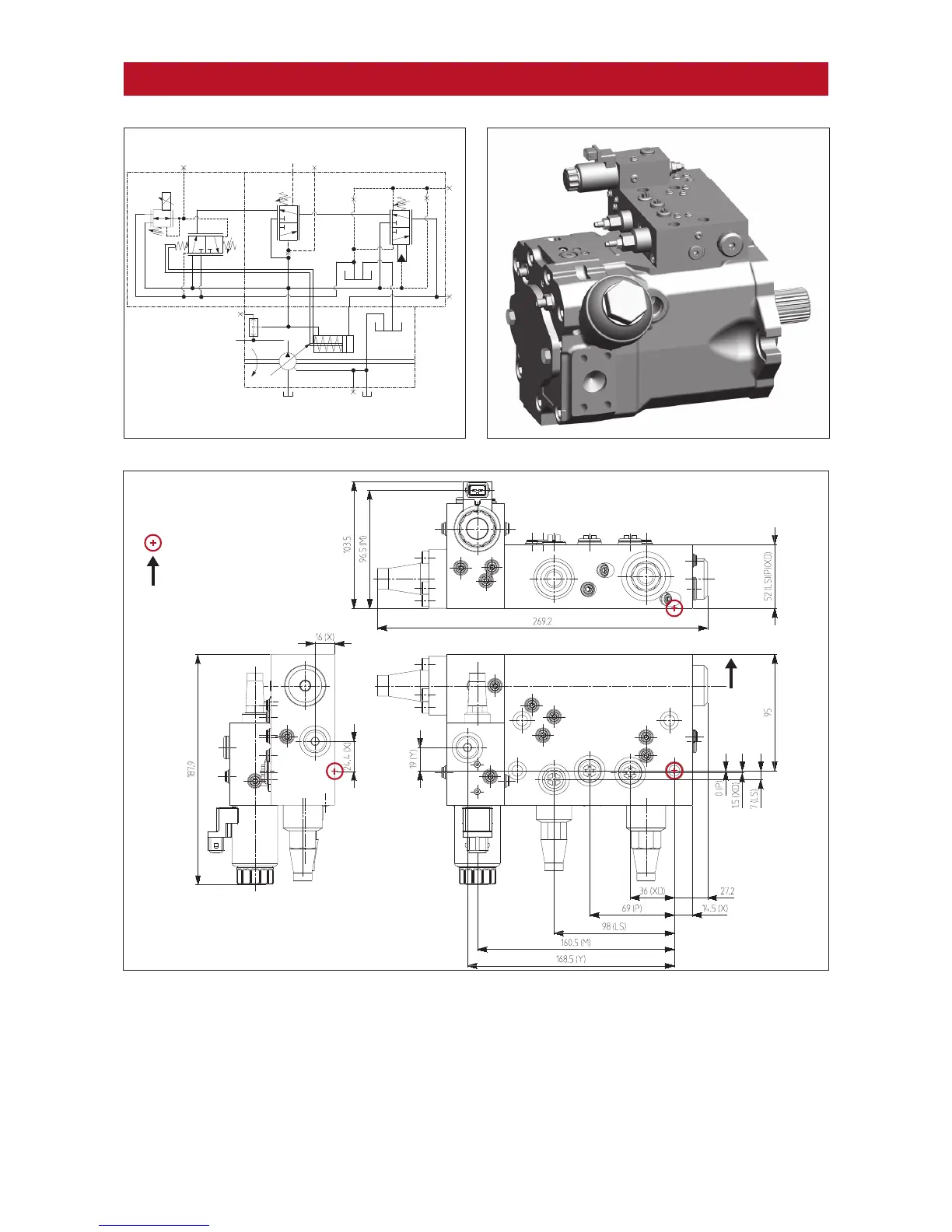

Dimensions. LEP-controller
Dimensions: approx. 269.2 x 187.9 x 103.5 mm
Connections: X Test port actuating pressure M14x1.5
Y Test port pressure-reducing valve M14x1.5
XD Port for external pressure cut-off M14x1.5
LS Load sensing signal M14x1.5
P Test port pump pressure M14x1.5
M Solenoid with AMP-JPT connector (example)
Further information, see <<Controllers. Electrical properties>>
01
01
02
02
03
03
04
04
05
05
06
06
07
07
08
08
09
09
10
10
11
11
01
01
02
02
03
03
04
04
05
05
06
06
07
07
08
08
HPR-02-A2-LEP0_Schaltplan_Katalog_v01
Projekt-Name:
Projekt-Titel:
Dokument-Titel:
Dokument-Name:
Dokument-Ersteller:
Zuletzt gespeichert:
Projekt-Ersteller:
Erstellt am:
Schaltplan_LEP
RA3 - P.Schlee
RA3 - P.Schlee
19.03.2012 09:50:09
19.03.2012 10:38:48
P/E
P1LSY
XD
X
TX
S1
LEP mit Standard DA und Standard LS
0 max
T
P
E
LU
D1
S2
= Reference point
= Towards drive shaft
