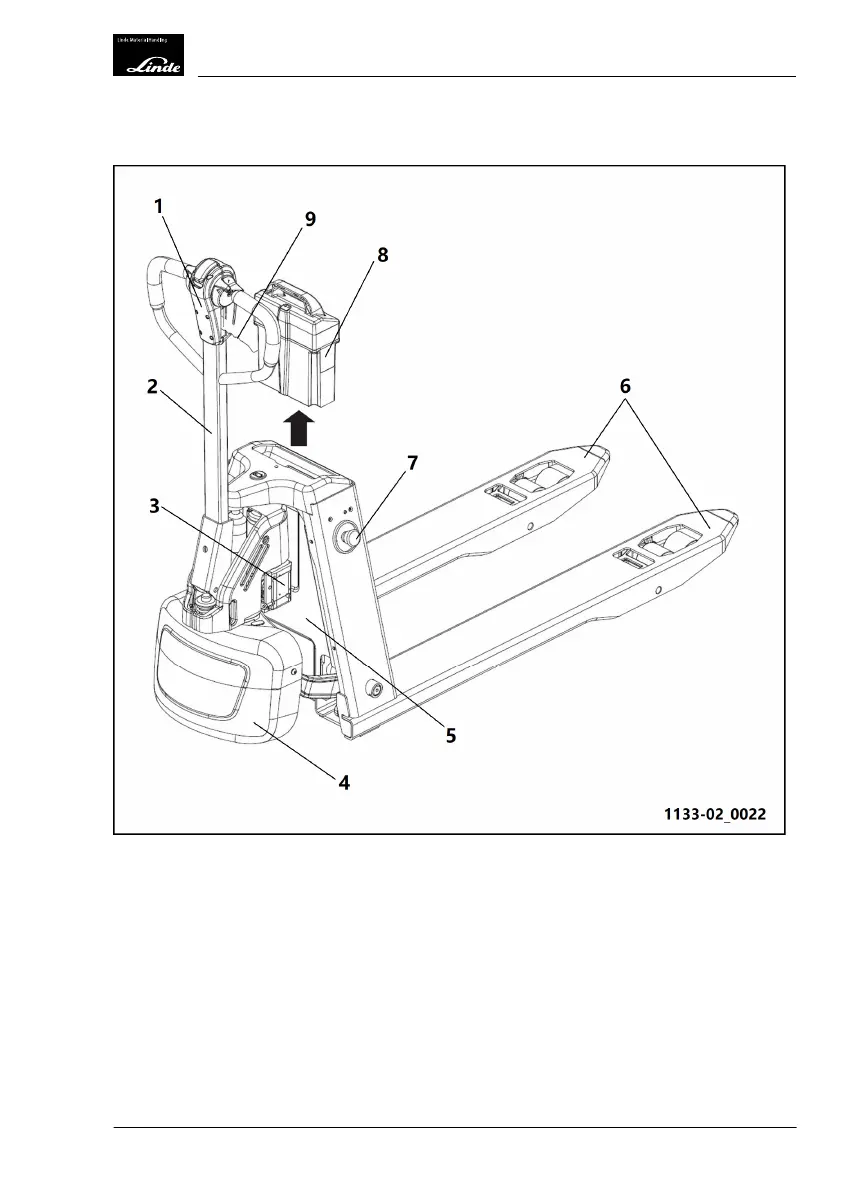

Overview of main components_plug model (optional*)
Operating handle
Joystick
Hydraulic station
Drive wheel
Baffle
1
2
3
4
5
Fork
Emergency off switch
Lithium-ion battery
Handle
6
7
8
9
Views
3
Overview of main components_plug model (optional*)
25Operating Instructions - 1131 801 1601 EN - 12/2021 - 04
