Indicator light

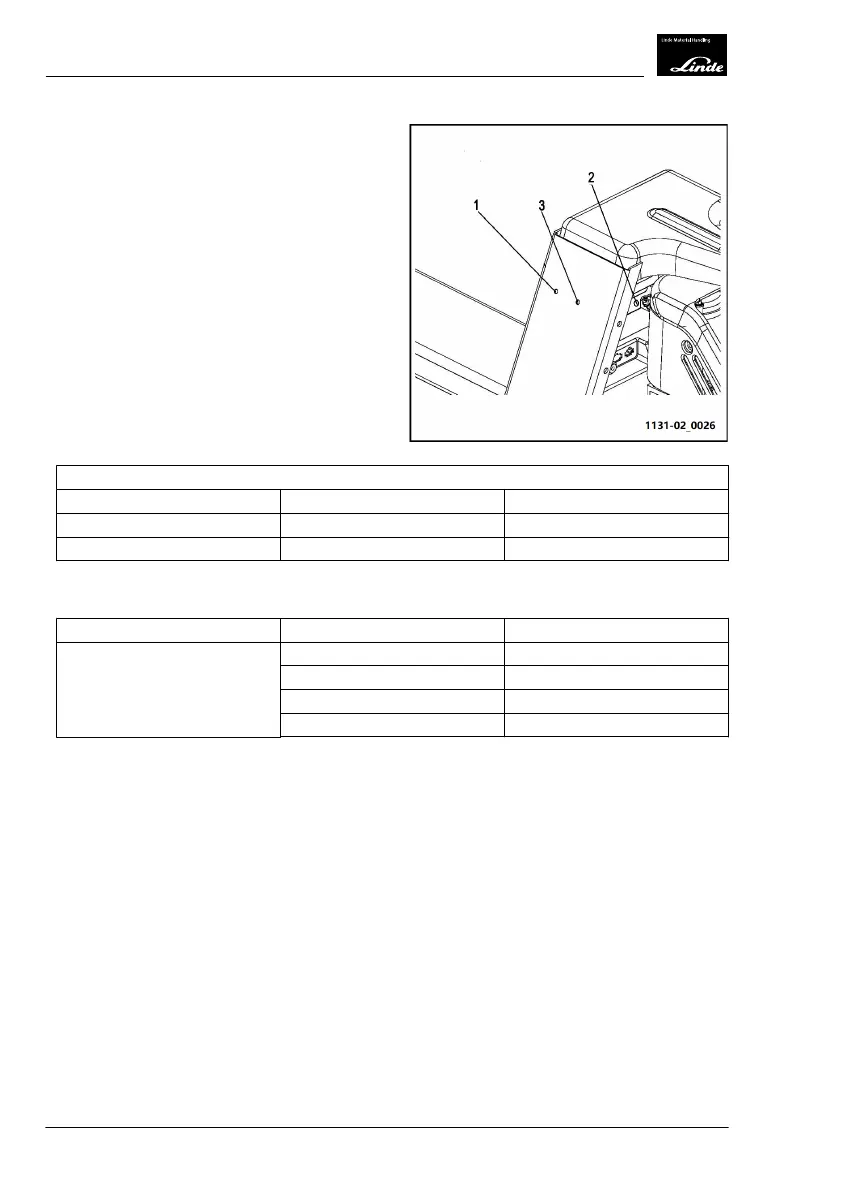

The charging indicator (1) displays the follow-
ing different states:
Charging indicator
Display Description Malfunction analysis
Red light remains lit Charger is charging Normal status
Green light remains lit Battery charge completed Normal status
Power display light (2) normal status display:
Name
LED
colour Parameter value
Remaining charge on standard
battery
Green 60-100%
Yellow 30%-60%
Constantly illuminated in red 15-30%
Flashing red 0-15%
If the control unit detects a battery malfunc-
tion, the power display light (2) will flash with
an error code until the malfunction is elimina-
ted.
The error report light (3) is constantly lit green
in its normal state. Please see the control unit
malfunction information when the control unit
reports an error.
