LH800U-2D(L)/LH800U-2D(R) OWNER’S/OPERATOR’S MANUAL 14.0
7. CONTROL AND PARTS FUNCTIONS
7-3

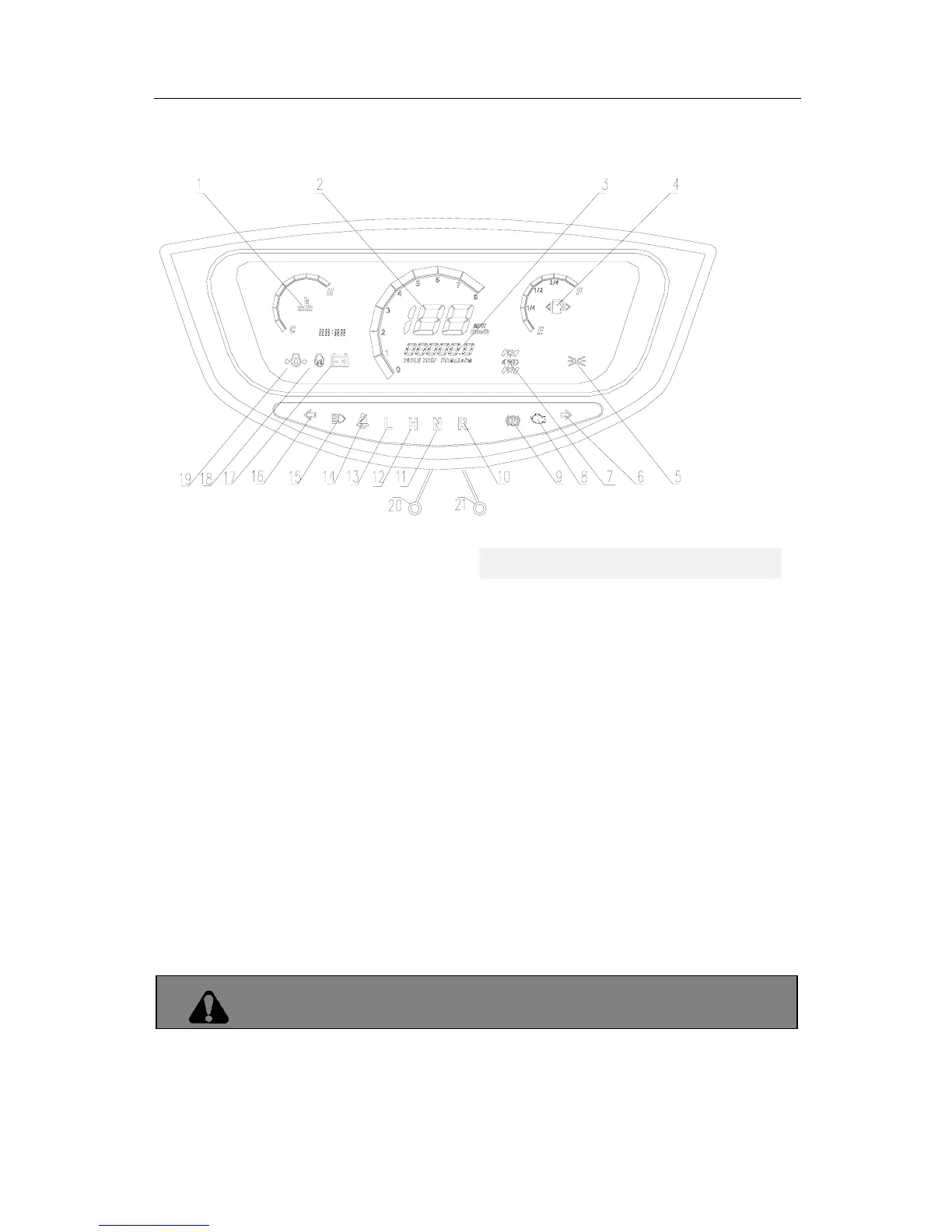

LCD Meter
1. Coolant temperature meter
12. H GEAR POSITION
2. Speedometer 13. L GEAR POSITION
3. Engine working hour counter
14. safety belt indicator light
4. Fuel gauge Indicator 15. High beam indicator light
5. Light Indicator 16. Left turn indicator light
6. Right turn indicator light 17. ELECTRICAL CHARGE
7. 2WD/4WD or DIFF LOCK
indicator
18. OIL PREHEAT
8. SVS light
19. ENGINE OIL PRESSURE
9. PARKING TELLTALE
20. km/ mile selector
10. REAR SHIFT TELLTALE 21. hour / distance selector
11. Neutral indicator light
WARNING
When turn on the key but not start the engine, the SVS light will on.
After the engine starting the SVS light will turn off. If the SVS light
lighting or flashing while the engine working, please consult an
authorized UTV dealer and repair it immediately to avoid the vehicle
damaged.
