CHAPTER 3 ENGINE M750L SERVICE MANUAL 18.0
CHAPTER 3 ENGINE PAGE 3-
59

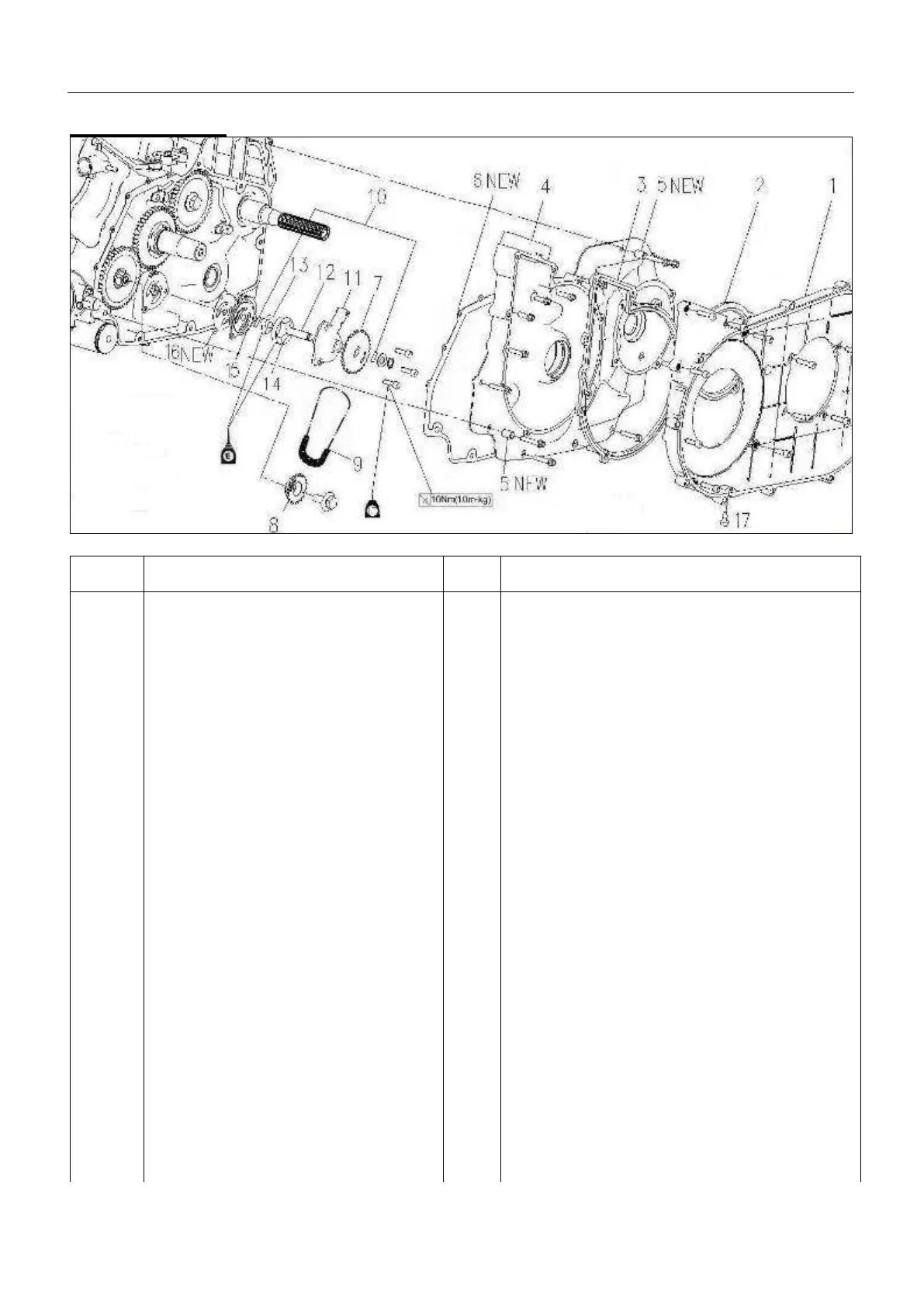

3.12OIL PUMP
Order
Job name/ Part name
Q'ty
Remarks
Oil pump removal
Drain the engine oil.
Remove the parts in the order.
Refer to "ENGINE OIL REPLACEMENT"
section.
V-belt, clutch, secondary/ primary
sheave
Refer to "V BELT, CLUTCH AND
SECONDARY/ PRIMARY SHEAVE"
section.
1
Cvt small cover componets
1
2
Wash B , small cover
1
3
Wash A , small cover
1
4
Left cover
1
Apply bond to the mating surface of the
left cover.
CAUTION: If this is not done, oil may
leak.
5
Dowel pins
1
6
Gasket , left cover
1
7
Oil pump driven gear
1
8
Oil pump drive gear
1
9
chain
1
10
Cylindrical pin 4 X 16
2
11
Pump housing
1
12
Oil pump shaft
1
13
Inner rotor
1
14
Outer rotor
1
15
Pump housing cover
1
16
Gasket , oil pump
1
