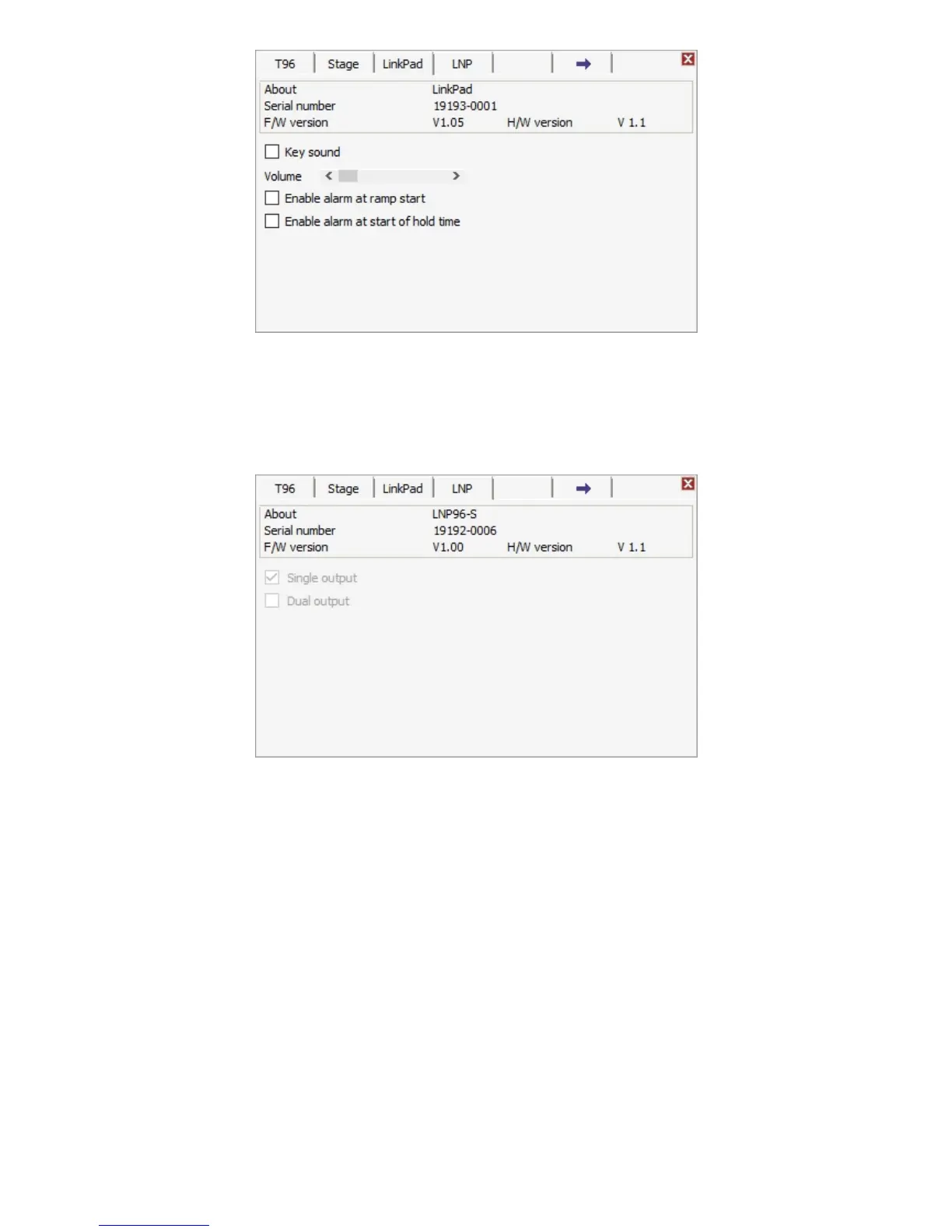

This screen shows the seria l number and firmwa re version of the connected LinkPa d.
Key pa d tones are enabled are enabled by ticking the 'Key sound' check box. To disable them, uncheck the box.
Alarms can be configured to sound at the sta rt of each ra mp and/or the sta rt of each hold time in the profile by checking the res pective option.
The volume of the key tones and alarms can be adjusted via the 'Volume' s lider.
LNP options
The screen displa ys the serial number and firmware version of the connected LNP96, if present. This screen is for informa tion only, no changes ca n
be ma de.
Option board Information
To get to the option board information touch the blue right arrow ta b a nd to go back to the T96 system controller informa tion touch the blue arrow
ta b a ga in (now pointing left).
Dual T/C Tab
T96 System Controllers connected to a high temperature s tage require a dua l thermocouple option board. This tab shows which stage is connected
and it’s serial number. The other input of the dual card will be blank.
Tensile Tab
T96 System Controllers setup for a tensile sta ge require a signal conditioning option board. This ta b s hows which beam type is connected to the
system, allows the user to select whether the display will show stres s/stra in or force/dis tance and true or engineering strain, allows a default
motor speed to be set and allows a distance calibra tion to be performed.
Note: In orde r for Stre ss /Strain values to be a ccurate you mus t enter values for sa mple
width and thickness in the Tensile setup screen.
Vacuum Tab
T96 System Controllers setup for a Pira ni vacuum gauge require a signa l conditioning option board.
To cha nge the displayed vacuum value between mBa r, mTorr and kPa simply touch the desired radio button.
Pressure Tab
T96 System Controllers setup for a pres sure gauge require a signa l conditioning option board.
To Next Page
