Linksys RE3000W User Manual

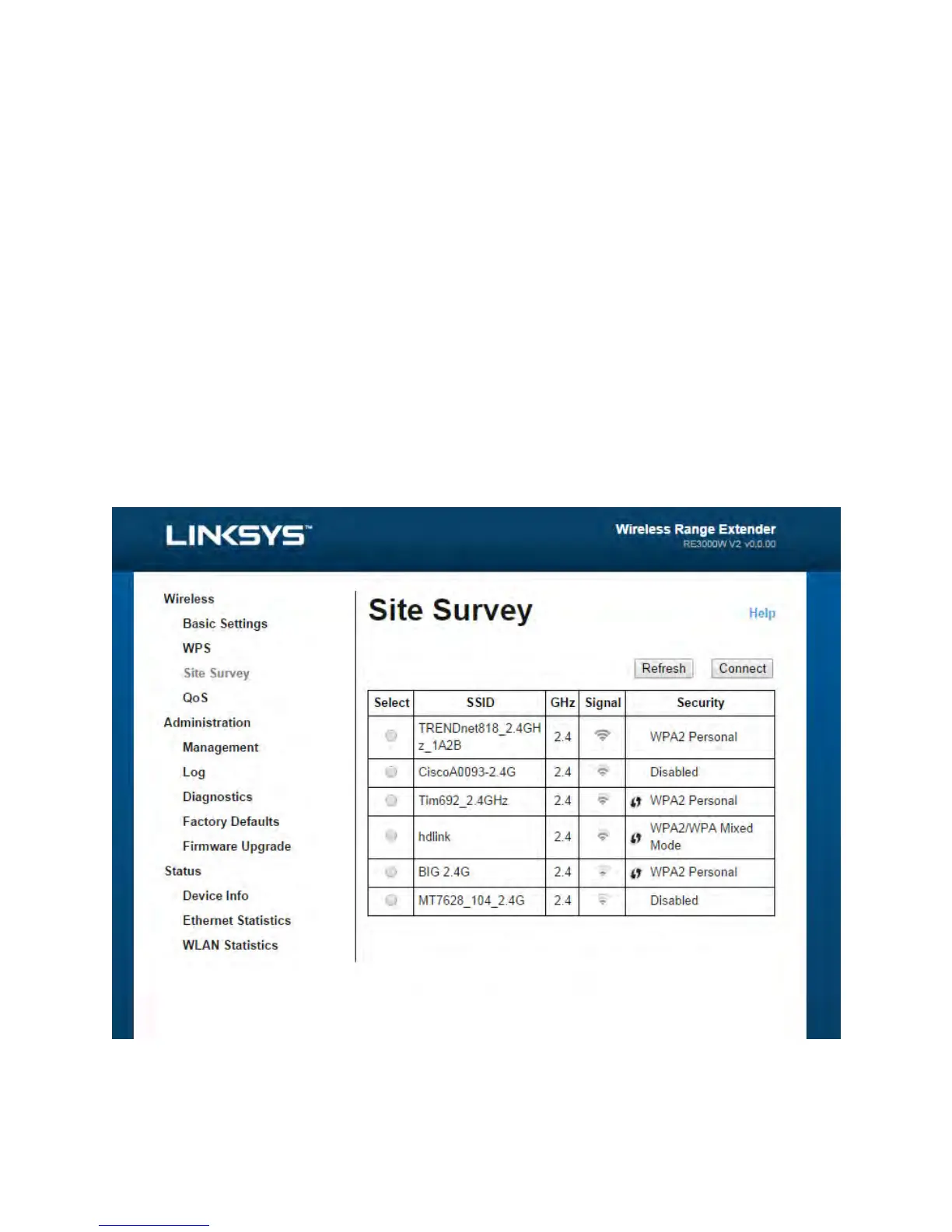

Site Survey gives a snapshot of all neighboring access points and wireless routers
within range of the extender.
To open the Site Survey page:
1. Log in to the browser-based utility (see “How to access the browser- based utility”
on page 5).
2. Click the Wireless tab. Click the Site Survey page.
3. Select—To connect to a wireless network, click the button next to the wireless
network name (SSID) in the Select column, and click Connect.
4. SSID—Displays the name of neighboring wireless networks.
5. GHz—Displays the radio band (in GHz) of the neighboring wireless networks
6. Signal Strength—Displays the relative position of the neighboring access points
by indicating the power of the wireless signal received: 1 bar= 20%,2 bars=40%, 3
bars=60%, 4 bars=80%, 5 bars=100%. If no bar is displayed, the extender is located
too far away from the upstream access point. Try to keep the signal strength
between 60% and 100% for optimum performance.
7. Security—Displays the mode of security in use by the neighboring APs. If a network
supports Wi-Fi Protected Setup, the Wi-Fi Protected Setup icon is also displayed.
To connect your extender with an access point or router in Site Survey, you will
need to know the password or passphrase of the network on that device.

Linksys RE3000W Specifications

General

Modulation	-
Frequency band	2.4 GHz
Number of users	- user(s)
Channels quantity	- channels
Maximum data transfer rate	300 Mbit/s
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Antennas quantity	2
Product color	White
Minimum system requirements	Internet Explorer 8 Safari 5 Chrome Firefox 8
Compatible operating systems	Windows XP SP3\\r Windows Vista SP1\\r Windows 7\\r Windows 8\\r Mac OS X Leopard 10.5.8\\r Mac Snow Leopard 10.6.1\\r Mac Lion 10.7\\r Mac Moutain Lion 10.8
