Chapter 2: Getting to Know the Switch
SRW2048
WebView Switches
Chapter 2: Getting to Know the Switch
SRW2048
Front Panel
The Switch's LEDs and ports are located on the front panel.
LEDs
PWR Green. The PWR LED lights up to indicate that the Switch is powered on.
Link/Act (1-48) Green. The LED lights up green to indicate a functional 10/100Mbps network link through
the corresponding port (1 through 48) with an attached device. It flashes to indicate that
the Switch is actively sending or receiving data over that port.
Orange. The LED lights up orange to indicate a 1000Mbps connection on the corresponding
port (1 through 48) with an attached device. It flashes to indicate that the Switch is actively
sending or receiving data over that port.
Ports
1-48 The Switch is equipped with 48 auto-sensing, Ethernet network ports, which use RJ-45
connectors. The Fast Ethernet ports support network speeds of 10Mbps, 100Mbps, or
1000Mbps. They can operate in half and full-duplex modes. Auto-sensing technology
enables each port to automatically detect the speed of the device connected to it (10Mbps,
100Mbps, or 1000Mbps), and adjust its speed and duplex accordingly.

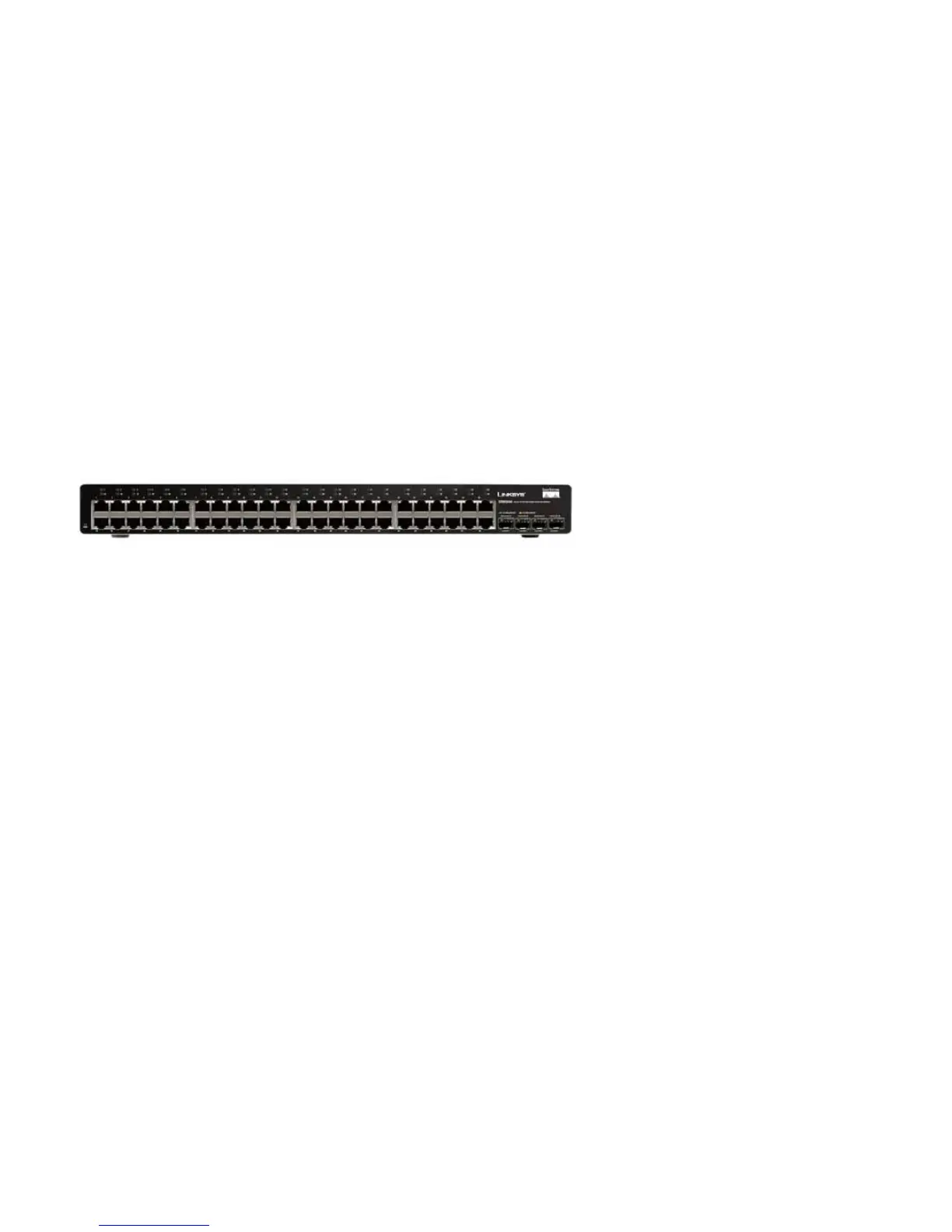

Figure 2-1: Front Panel of the SRW2048
