79
Chapter 5: Using the Web-based Utility for Configuration
SNMP Tab - Views
WebView Switches
SNMP Notifications. Indicates if the device can send SNMP notifications.
Authentication Notifications. Indicates if SNMP Authentication failure notification is enabled on the device.
SNMP Tab - Views
SNMP Views provide access or block access to device features or feature aspects. For example, a view can be
defined that states that SNMP Group A has Read Only (R/O) access to Multicast groups, while SNMP Group B has
Read-Write (R/W) access to Multicast groups. Feature access is granted via the MIB name, or MIB Object ID.\
View Name. Displays the user-defined views. The options are as follows:
• Default. Displays the default SNMP view for read and read/write views.
• DefaultSuper. Displays the default SNMP view for administrator views.
Subtree ID Tree. Indicates the device feature OID included or excluded in the selected SNMP view. The options to
select the Subtree are as follows:
• Select from List. Select the Subtree from the list provided.
• Insert. Enables a Subtree not included in the Select from List field to be entered.
View Type. Indicates if the defined OID branch will be included or excluded in the selected SNMP view.
The Add to List button adds the Views configuration to the Views Table at the bottom of the screen.

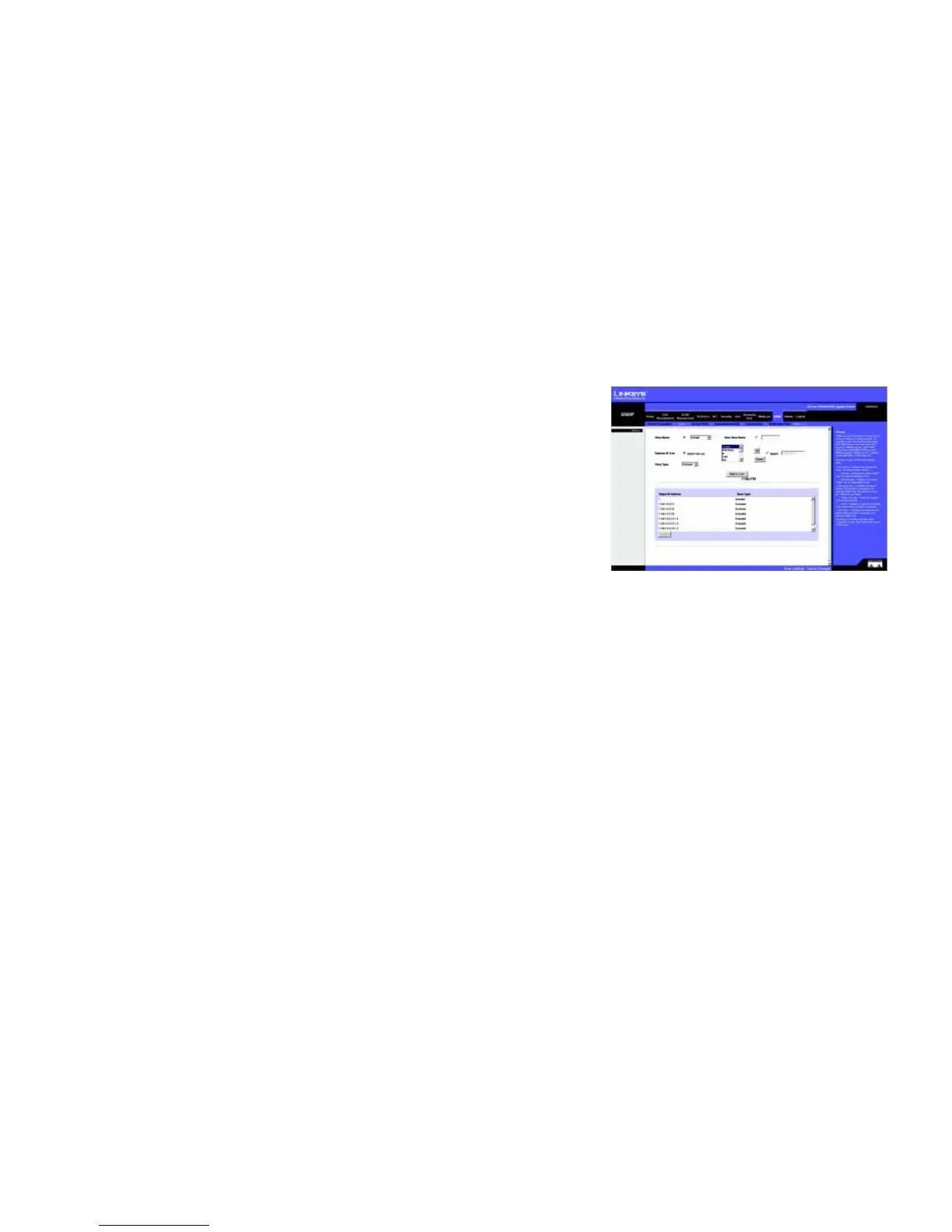

Figure 5-56: SNMP - Views
