Chapter 5: Using the Web-based Utility for Configuration
QoS Tab - Queue Settings
WebView Switches
CoS Default
Interface. Interface to which the CoS configuration applies.
Default CoS. Determines the default CoS value for incoming packets for which a VLAN tag is not defined. The
possible field values are 0-7. The default CoS is 0.
Restore Defaults. Restores the device factory defaults for mapping CoS values to a forwarding queue.
LAG. LAG to which the CoS configuration applies.
QoS Tab - Queue Settings
The Queue Setting screen contains fields for defining the QoS queue forwarding types.
Queue. Displays the queue for which the queue settings are displayed. The possible field range is 1 - 4.
Strict Priority. Indicates that traffic scheduling for the selected queue is based strictly on the queue priority.
WRR. Indicates that traffic scheduling for the selected queue is based strictly on the WRR.
WRR Weight. Displays the WRR weights to queues.
% of WRR Bandwidth. Displays the amount of bandwidth assigned to the queue. These values are fixed and are
not user defined.
QoS Tab - DSCP Settings
The DSCP Settings screen enables mapping DSCP values to specific queues.
The DSCP Settings screen contains the following fields:
DSCP. Indicates the Differentiated Services Code Point value in the incoming packet.
Queue. Maps the DSCP value to the selected queue.

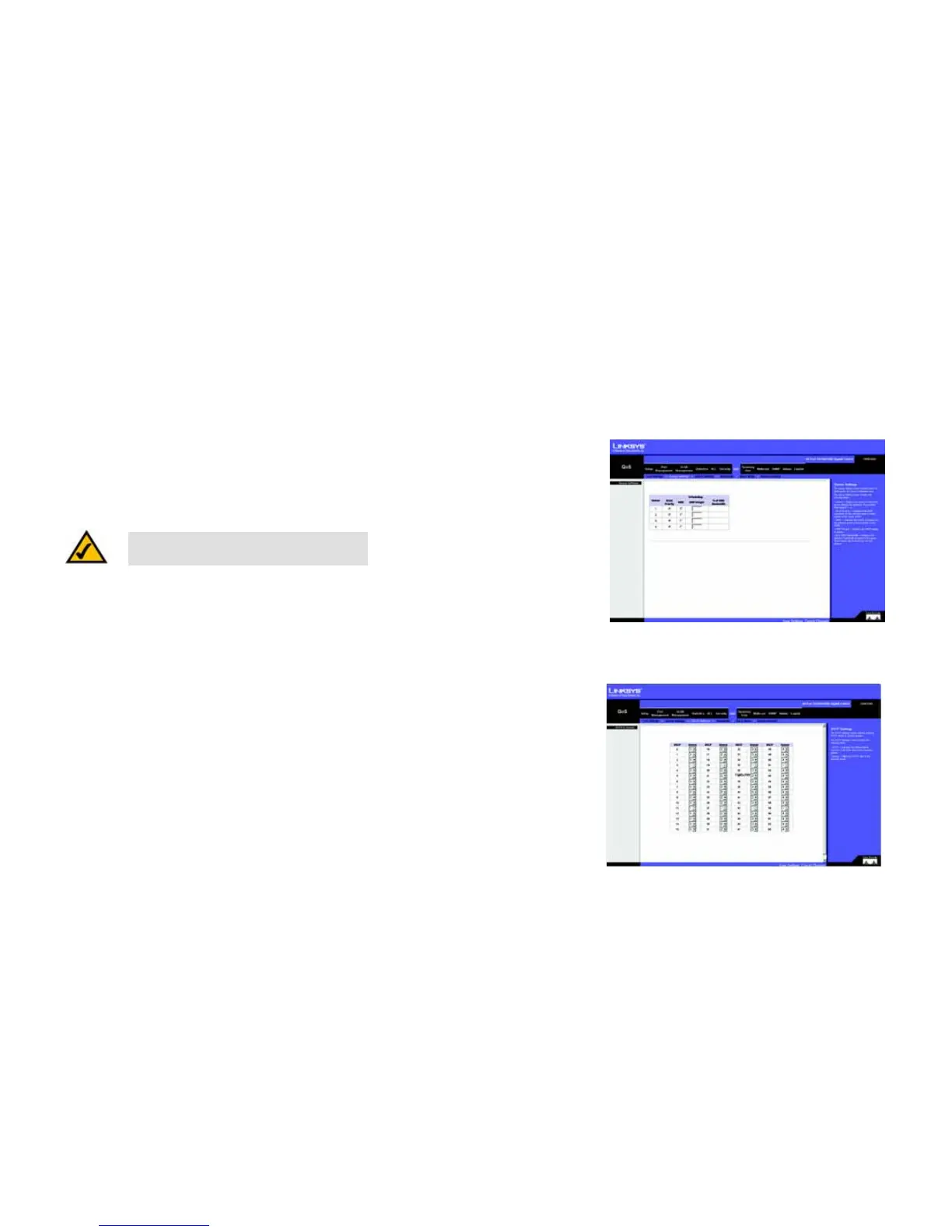

Figure 5-36: QoS - Queue Settings
Figure 5-37: QoS - DSCP Settings
NOTE: Individual queues cannot be assigned on the
SRW224G4 and SRW248G4.
