Chapter 5: Configuring the Wireless-G Broadband Router
The Administration Tab - Diagnostics
Wireless-G Broadband Router with SpeedBooster
The Administration Tab - Diagnostics
The diagnostic tests (Ping and Traceroute) allow you to check the connections of your network components.
Ping Test. The Ping test will check the status of a connection. Click the Ping button to open the Ping Test screen.
Enter the address of the PC whose connection you wish to test and how many times you wish to test it. Then,
click the Ping button. The Ping Test screen will show if the test was successful. To stop the test, click the Stop
button. Click the Clear Log button to clear the screen. Click the Close button to return to the Diagnostics screen.
Traceroute Test. To test the performance of a connect, click the Traceroute button. Enter the address of the PC
whose connection you wish to test and click the Ping button. The Traceroute Test screen will show if the test was
successful. To stop the test, click the Stop button. Click the Clear Log button to clear the screen. Click the Close
button to return to the Diagnostics screen.

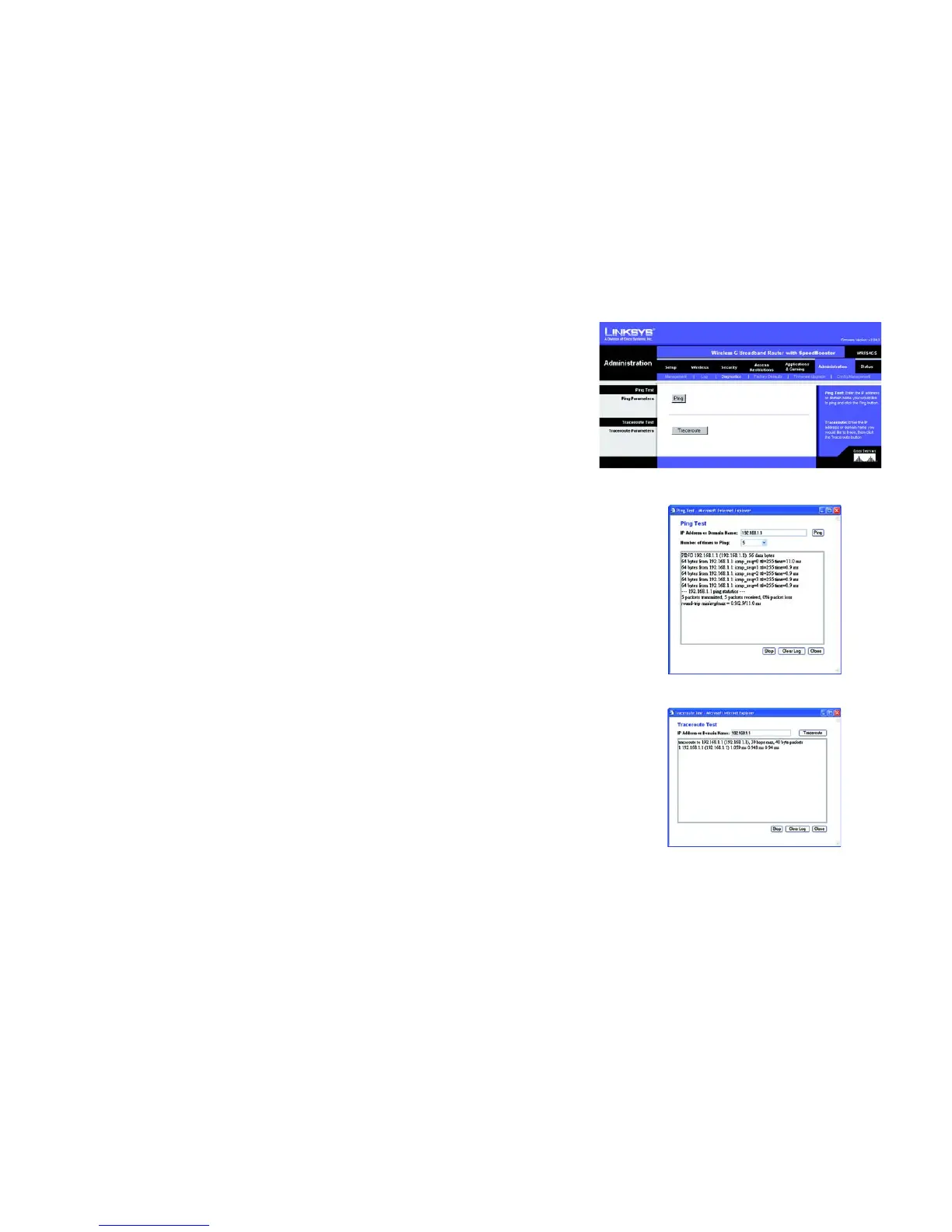

Figure 5-40: Administration Tab - Diagnostics
Figure 5-41: The Ping Test
Figure 5-42: The Traceroute Test

Linksys WIRELESS-G WRT54GS Specifications

General

Wireless Standard	802.11g
Frequency Band	2.4 GHz
Ethernet Ports	4x 10/100 Mbps LAN, 1x 10/100 Mbps WAN
Security Features	WEP, WPA, WPA2, SPI Firewall
Data Transfer Rate	54 Mbps
Buttons	Reset, SecureEasySetup
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-4 to 158°F (-20 to 70°C)
Operating Humidity	10% to 85% Non-condensing
Storage Humidity	5% to 90% Non-condensing
Antenna	2 x External
LEDs	Power, DMZ, WLAN, LAN (1-4)
Power	12V DC
